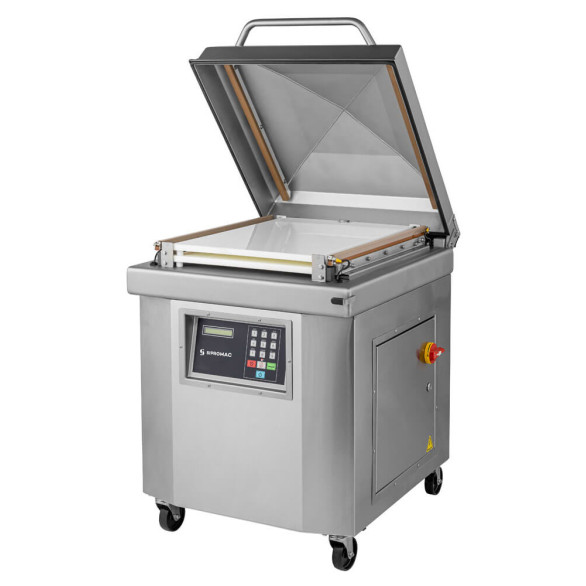

Sipromac Single Chamber 580A

Type: Seal bar: 2 x 33.5"
Country of Origin: Canada
Ships from: FOB Brampton
U/M: Each
Stock: On Order
CM: 8719

Note: Shipping to be determined

Additional available options:
Electric Cut-off
Stainless Steel inclined plate
Stronger pump
Soft Air
Air regulator(compressor not included)

Brochure

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Type: Seal bar: 2 x 33.5"
Location: FOB Brampton
U/M: Each
Stock: On Order
CM Product Code: 8719

Note: Shipping to be determined

Additional available options:
Electric Cut-off
Stainless Steel inclined plate
Stronger pump
Soft Air
Air regulator(compressor not included)

Sipromac Vacuum Packaging Machine 580A

These single chamber machines are designed for medium capacity for high outputs and larger products.

Very convinient to use and move around as required.

All these models are equipped with casters.

Specifications:

Seal bars Length: 2 x 33.5” (855 mm)
Distance between bars: 36.75″ (933 mm)
Machine dimensions
Width: 45.25″ (1153 mm)
Length: 46.5” (1183 mm)
Height: 43.75” (1113 mm)
Chamber height: 8” (203 mm)
Busch pump: 200 m3/h
Estimated cycle time (99.5% vacuum): 15 to 20 secs.
Voltage: 208V / 3PH / 60 Hz (208-220V), 4-meter cable and 30A plug.
Microprocessor: MC-40
Weight: 1347lb
Certification ETL listed C & US, Conforms to UL STD 73 Certified to CAN/CSA C22.2 No. 68
Certification ETL Sanitation Listed, Conforms to NSF/ANSI STD 169

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

These single chamber machines are designed for medium capacity for high outputs and larger products.

Very convinient to use and move around as required.

All these models are equipped with casters.

Specifications:

Seal bars Length: 2 x 33.5” (855 mm)
Distance between bars: 36.75″ (933 mm)
Machine dimensions
Width: 45.25″ (1153 mm)
Length: 46.5” (1183 mm)
Height: 43.75” (1113 mm)
Chamber height: 8” (203 mm)
Busch pump: 200 m3/h
Estimated cycle time (99.5% vacuum): 15 to 20 secs.
Voltage: 208V / 3PH / 60 Hz (208-220V), 4-meter cable and 30A plug.
Microprocessor: MC-40
Weight: 1347lb
Certification ETL listed C & US, Conforms to UL STD 73 Certified to CAN/CSA C22.2 No. 68
Certification ETL Sanitation Listed, Conforms to NSF/ANSI STD 169
