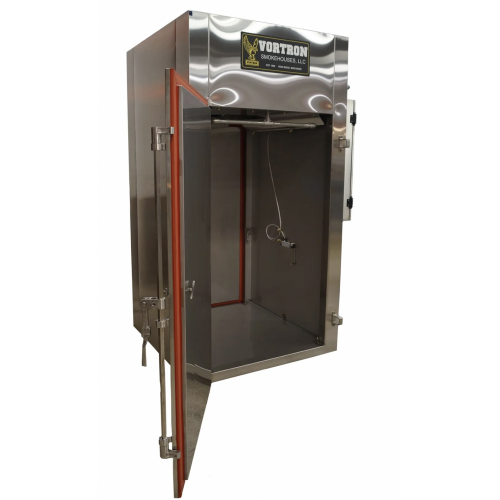

Vortron Model 2500

VORTRON MODEL 2500

The Model 2500 comes standard with:

• Touchscreen Controller
• Pellet Generator
• 16ga SS Connecting Pipes to Smokehouse with Quick Connect Sealing System
• 1 - 6-Station Stainless Steel Product Truck
• 6 - Stainless Steel Product Screens (39.375" x 33")
• 30 - Stainless Steel Smoke Sticks (42")
• Operators Manual and Step-by-Step Recipe Book

Smokehouse construction and electrical control panels approved by:

Features:

• 100% 304 Stainless Steel USDA, and Canadian Accepted Construction
• Automated 100% Sealing Electric Damper System
• Automated Humidity System
• Automated Cold Shower
• High-Velocity Circulation for Even Smoke/Heat Distribution
• Optional Drain, Control, Smoke Generator and Door Hinge Locations
• 2" Thick High-Density Insulation in Walls, Floor, Ceiling and Door

Specifications:

• Smoker Dimensions - H 90" x W 53" x D 48"
• 1500 Lbs. (Weight Without Truck)
• Truck Dimensions - H 61" x W 43" x D 33"

Capacity:

Options:

• Control Upgrades
• Refrigeration Capabilities
• Clean Smoking Pellet Smoke Generator
• Sawdust Smoke Generator
• Liquid Smoke
• Horizontal Air Flow
• Pass-Through System
• CIP Cleaning Systems
• Customized Exhaust Systems
• Variable Speed Air Flow Options
• Multiple Pellet Wood Varieties, Sawdust or Liquid Smoke
• Data Recording Options
• Single or Multi-Pen Temperature Chart Recorder

Electrical Options:

• 208/120 Volts 3 Phase or 1 Phase
• 240/120 Volts 3 Phase or 1 Phase
• 480/120 Volts 3 Phase or 1 Phase
• 600/120 Volts 3 Phase or 1 Phase

Custom Trucks, Smoke Sticks, and Product Screens Available
