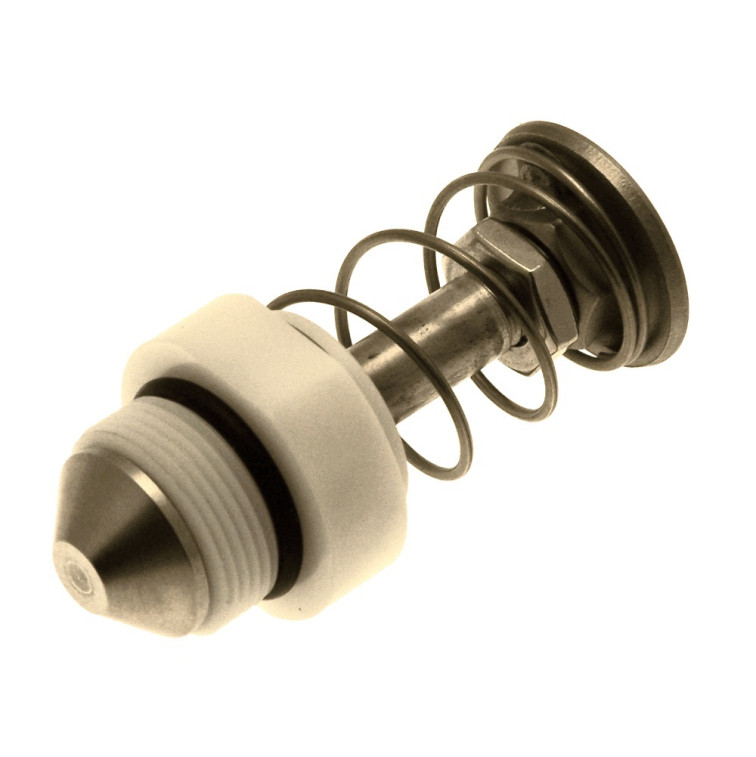

Valve Unit Exploded View for Ruhle PR15 No. 3649 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F26551	Nut	Ø 35 x 27	1
2	F20104	bolt	Ø 23 x 74	1
3	F20129	Radial shaft seal	Ø 10 x Ø 18 x 6	1
4	F20136	Slide bushing	DIN1850 Ø 10 x Ø 16 x 10	1
5	F20138	O-ring	Ø 20 x 3	1
6	F22560	Pressure spring	d1.5 x De28 x 50	1
7	F20047	Hexagonal nut	DIN439 M 10	1
8	F41543	Switching head	PR 8 - 10	1
