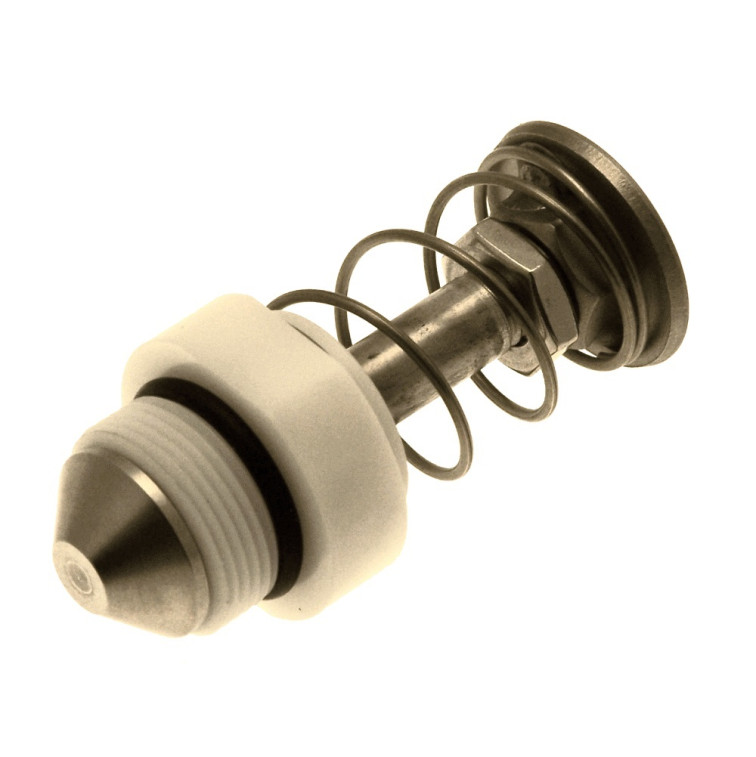

Valve Unit Exploded View Ruhle PR10

Type: 105521
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2046

* Valve Unit Exploded View PR 10:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Valve Unit Exploded View Ruhle PR10

Type: 105521
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2046

* Valve Unit Exploded View PR 10:
--F26551 Nut
--F20104 bolt
--F20129 Radial shaft seal
--F20136 Slide bushing
--F20138 O-ring
--F22560 Pressure spring
--F20047 Hexagonal nut
--F41543 Switching head

Valve Unit Exploded View for Ruhle PR10

Pos No.	Part No.	Description	Add Info	Required
1	F26551	Nut	Ø 35 x 27	1
2	F20104	bolt	Ø 23 x 74	1
3	F20129	Radial shaft seal	Ø 10 x Ø 18 x 6	1
4	F20136	Slide bushing	DIN1850 Ø 10 x Ø 16 x 10	1
5	F20138	O-ring	Ø 20 x 3	1
6	F22560	Pressure spring	d1.5 x De28 x 50	1
7	F20047	Hexagonal nut	DIN439 M 10	1
8	F41543	Switching head	PR 8 - 10	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Valve Unit Exploded View for Ruhle PR10

Pos No.	Part No.	Description	Add Info	Required
1	F26551	Nut	Ø 35 x 27	1
2	F20104	bolt	Ø 23 x 74	1
3	F20129	Radial shaft seal	Ø 10 x Ø 18 x 6	1
4	F20136	Slide bushing	DIN1850 Ø 10 x Ø 16 x 10	1
5	F20138	O-ring	Ø 20 x 3	1
6	F22560	Pressure spring	d1.5 x De28 x 50	1
7	F20047	Hexagonal nut	DIN439 M 10	1
8	F41543	Switching head	PR 8 - 10	1
