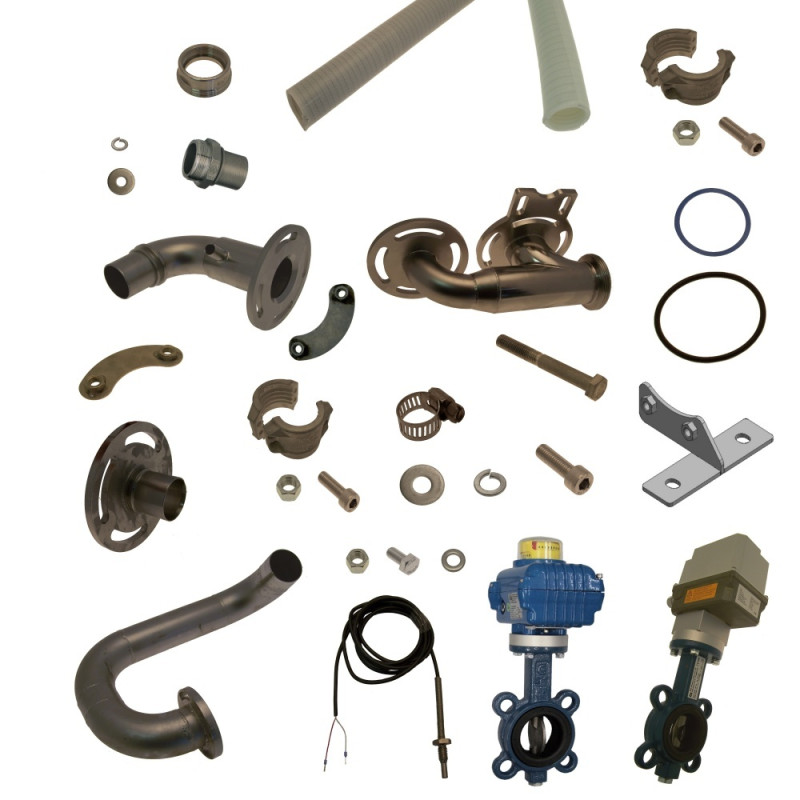

Valve Unit Complete Ruhle IR 112

Type: 104596
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2182

* Valve Unit Complete IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Valve Unit Complete Ruhle IR 112

Type: 104596
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2182

* Valve Unit Complete IR 112:
--F451791 piping
--F451580 piping
--F452178 Starting sheet
--F24901 Disc
--F24901 Disc
--F20210 Spring lock washer
--F20210 Spring lock washer
--F252180 Hexagonal bolt
--F252180 Hexagonal bolt
--F253642 Hose
--F452813 Clamp cup set
--F250838 Screw joint
--F252742 Threaded coupling with thread
--F252739 Sealing ring
--F451583 Flange
--F451586 Starting sheet
--F24901 Disc
--F253641 Hose
--F452812 Clamp cup set
--F452215 piping
--F248424 Hose clamp
--F27920 O-ring
--F26600 Disc
--F21260 Spring lock washer
--F22621 Cylinder head screw
--F456655 Bracket
--F20202 Washer
--F20210 Spring lock washer
--F21042 Hexagonal bolt
--F20204 Hexagonal nut
--107258 Mischerventil
--F249430 Mixer valve
--F29221 Resistance thermometer IR/LR

Valve Unit Complete for Ruhle IR112

Pos No.	Part No.	Description	Add Info	Required
1	F451791	piping	IR 112	1
2	F451580	piping	IR 112	1
3	F452178	Starting sheet	IR 112	2
4	F24901	Disc	Ø 12,5 x Ø 35 x 3	4
5	F20210	Spring lock washer	DIN127 B 12	4
6	F252180	Hexagonal bolt	DIN931 M12 x 85	4
7	F253642	Hose	Ø 63,5 x 5,8 x 500	0.50 m
8	F452813	Clamp cup set	DN 65 Alu	2
9	F250838	Screw joint	DN 65 Ø 65 x 96	1
10	F252742	Threaded coupling with thread	DN 65 x Ø 95 x 38	1
11	F252739	Sealing ring	DN 65	2
12	F451583	Flange	IR 112 / LR 1	1
13	F451586	Starting sheet	IR 112	2
14	F24901	Disc	Ø 12,5 x Ø 35 x 3	4
15	F20210	Spring lock washer	DIN127 B 12	4
16	F252180	Hexagonal bolt	DIN931 M12 x 85	4
17	F253641	Hose	Ø 50 x 5,8 x 1500	0.37 m
18	F452812	Clamp cup set	DN 50 Alu	1
19	F452215	piping	IR 112	1
20	F248424	Hose clamp	HAS 32 Ø 51-71	2
21	F27920	O-ring	Ø 57 x 2,5	1
22	F26600	Disc	Ø 8,5 x Ø 20 x 2	4
23	F21260	Spring lock washer	DIN127 B 8	4
24	F22621	Cylinder head screw	DIN912 M 8 x 25	4
25	F456655	Bracket	IR 112	1
26	F20202	Washer	DIN125 A 13	2
27	F20210	Spring lock washer	DIN127 B 12	4
28	F21042	Hexagonal bolt	DIN933 M12 x 30	2
29	F24901	Disc	Ø 12,5 x Ø 35 x 3	2
30	F20204	Hexagonal nut	DIN934 M 12	2
31	107258	Mischerventil	TA534008-NE052100	1
32	F249430	Mixer valve	TA534007-ES201210	1
33	F29221	Resistance thermometer IR/LR	PT100 DIN EN 60751	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Valve Unit Complete for Ruhle IR112

Pos No.	Part No.	Description	Add Info	Required
1	F451791	piping	IR 112	1
2	F451580	piping	IR 112	1
3	F452178	Starting sheet	IR 112	2
4	F24901	Disc	Ø 12,5 x Ø 35 x 3	4
5	F20210	Spring lock washer	DIN127 B 12	4
6	F252180	Hexagonal bolt	DIN931 M12 x 85	4
7	F253642	Hose	Ø 63,5 x 5,8 x 500	0.50 m
8	F452813	Clamp cup set	DN 65 Alu	2
9	F250838	Screw joint	DN 65 Ø 65 x 96	1
10	F252742	Threaded coupling with thread	DN 65 x Ø 95 x 38	1
11	F252739	Sealing ring	DN 65	2
12	F451583	Flange	IR 112 / LR 1	1
13	F451586	Starting sheet	IR 112	2
14	F24901	Disc	Ø 12,5 x Ø 35 x 3	4
15	F20210	Spring lock washer	DIN127 B 12	4
16	F252180	Hexagonal bolt	DIN931 M12 x 85	4
17	F253641	Hose	Ø 50 x 5,8 x 1500	0.37 m
18	F452812	Clamp cup set	DN 50 Alu	1
19	F452215	piping	IR 112	1
20	F248424	Hose clamp	HAS 32 Ø 51-71	2
21	F27920	O-ring	Ø 57 x 2,5	1
22	F26600	Disc	Ø 8,5 x Ø 20 x 2	4
23	F21260	Spring lock washer	DIN127 B 8	4
24	F22621	Cylinder head screw	DIN912 M 8 x 25	4
25	F456655	Bracket	IR 112	1
26	F20202	Washer	DIN125 A 13	2
27	F20210	Spring lock washer	DIN127 B 12	4
28	F21042	Hexagonal bolt	DIN933 M12 x 30	2
29	F24901	Disc	Ø 12,5 x Ø 35 x 3	2
30	F20204	Hexagonal nut	DIN934 M 12	2
31	107258	Mischerventil	TA534008-NE052100	1
32	F249430	Mixer valve	TA534007-ES201210	1
33	F29221	Resistance thermometer IR/LR	PT100 DIN EN 60751	1
