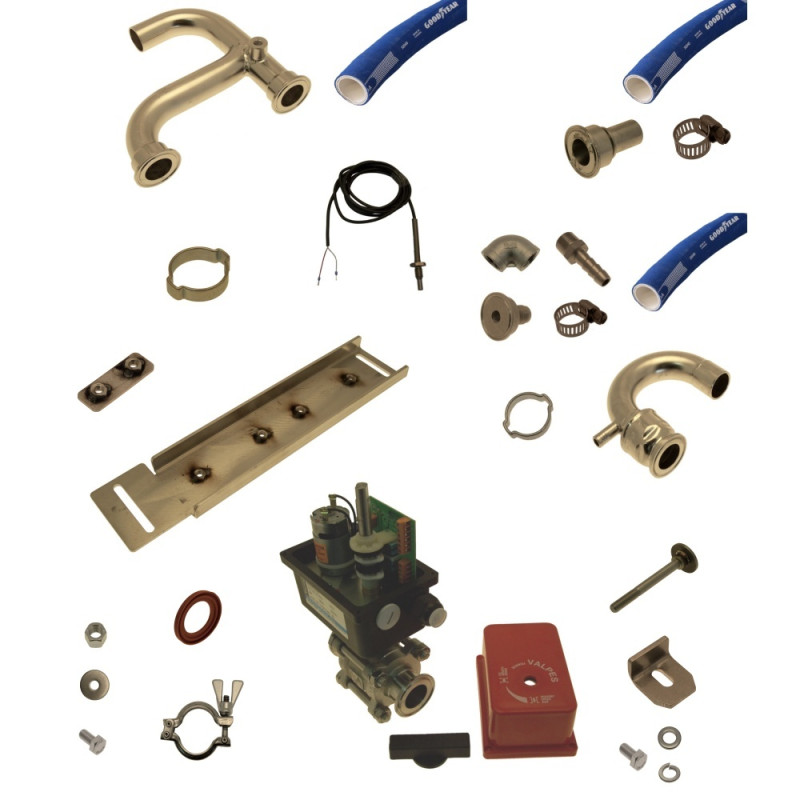

Valve Unit Assembly Ruhle IR 56 No. 210 and Higher

Type: 101437
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2391

* Valve Unit Assembly IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Valve Unit Assembly Ruhle IR 56 No. 210 and Higher

Type: 101437
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2391

* Valve Unit Assembly IR 56 No. 210 and higher:
--F440715 Housing
--F444477 Mixer valve
--F240716 Bracket
--F22888 Washer
--F21260 Spring lock washer
--F20687 Hexagonal bolt
--101433 piping
--F29110 Seal
--F29114 Clamp light
--F449543 tube bend
--F22449 Hexagonal bolt
--F441419 Hose
--F440717 Base
--F22907 Disc
--F20147 Hexagonal nut
--F445494 Starting sheet

Valve Unit Assembly for IR 56 No. 210 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F440715	Housing	IR 28/56	1
2	F444477	Mixer valve	IR 28/56	2
3	F240716	Bracket	39 x 35 x 19	4
4	F22888	Washer	DIN125 A 8,4	6
5	F21260	Spring lock washer	DIN127 B 8	6
6	F20687	Hexagonal bolt	DIN933 M 8 x 35	4
7	101433	piping	IR 28/56	1
8	F29110	Seal	Ø 32 x Ø 52,5 x 6,5	4
9	F29114	Clamp light	DIN25-40/1-1/2"	4
10	F449543	tube bend	IR 28/56	4
11	F22449	Hexagonal bolt	DIN933 M 8 x 20	2
12	F441419	Hose	IR 28/56	1
13	F440717	Base	IR 28/56	1
14	F22907	Disc	Ø 10,5 x Ø 35 x 3	2
15	F20147	Hexagonal nut	DIN934 M 10	2
16	F445494	Starting sheet	IR 28/56	1
