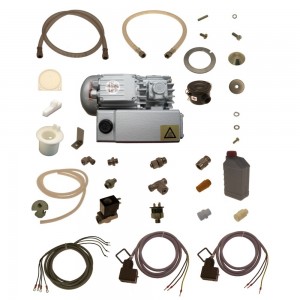

Vacuum System Assembly Ruhle MGR400 No. 12 and Higher

Type: 107965et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2537

* Vacuum System Assembly MGR 400 No. 12 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Vacuum System Assembly Ruhle MGR400 No. 12 and Higher

Type: 107965et
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2537

* Vacuum System Assembly MGR 400 No. 12 and higher:
--F25931 Luftfiltergehäuse
--F255709 Verschraubung
--105537 Verschraubung
--105539 T-Stück
--105540 Verschraubung
--F27520 Schalldämpfer
--105561 Schlauch
--107966 Schlauch
--107993 Behälter
--107349 Aufnahme
--107352 Klappe
--107356 Stift
--F20598 Senkschraube
--F148969 Dichtung
--107353 Gewicht
--F25984 Zylinderschraube
--107354 Mutter
--107450 Doppelnippel
--107384 Doppelnippel
--108142 Halter
--F20417 Hexagonal bolt
--F20258 Washer
--100802 Vacuum oil VM 032
--F20417 Hexagonal bolt
--F24031 Spring lock washer
--F24031 Spring lock washer
--F22116 Disc
--F21045 Washer
--105691 Doppelnippel
--105538 Winkelstück
--F20417 Hexagonal bolt
--F24031 Spring lock washer
--106224 Vakuumpumpe
--108299 Kabel für Vakuumpumpe
--F25937 2/2 Wege-Ventil 230V
--F20914 Drucktransmitter
--108349 Kabel für Vakuumventil
--108350 Kabel für Belüftungsventil

Vacuum System Assembly for Ruhle MGR400 No. 12 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F25931	Air Filter Housing	Ø 98x86 Filter C 75	1
2	F255709	Screw Joint	1/2"	1
3	105537	Screw Joint	EGKO-12LR1.2WD	2
4	105539	T-Piece	XETKO-12L	2
5	105540	Screw joint	MAV 12 LR OMD71	1
6	F27520	Silencer	1/2 Zoll	1
7	105561	Hose	MKR 300/600	1
8	107966	Hose	MGR 400 / 900	1
9	107993	Container	Ø 120 x 130,5	1
10	107349	Housing	90 x 37,5 x 18	1
11	107352	Flap	90 x 90 x 6	1
12	107356	Pin	Ø 6 x 30	1
13	F20598	Countersunk Bolt	DIN7991 M 5 x 12	2
14	F148969	Seal	Profil 763	25.5 cm
15	107353	Weight	Ø 40 x 10	1
16	F25984	Cylinder head screw	DIN84 M 5 x 12	1
17	107354	Washer	M100 x 2 x Ø 145 x 6	1
18	107450	Double Nipple	G1/2 - G3/4	1
19	107384	Double Nipple	G1/2 - G3/4	1
20	108142	Holder	63,5 x 46 x 2,5	1
21	F20258	Washer	DIN125 A 6,4	1
22	F24031	Spring lock washer	DIN127 B 6	1
23	100802	Vacuum oil	MGR 900	1
24	F20685	Hexgonal Bolt	DIN933 M 6 x 10	4
25	F22116	Disc	Ø 6,5 x Ø 30 x 3	4
26	F21045	Washer	DIN125 A 5,3	1
27	105691	Double nipple	GE12LR1/271X	2
28	105538	Elbow connector	XEWKO-12L	1
29	F20417	Hexagonal Bolt	DIN933 M 6 x 16	1
30	106224	Vacuum pump	KC 0016 E	1
31	108299	Cable for vacuum pump	MGR 400/900/1500	1
32	F25937	2/2 way valve 230V	AWS-218/10 MG12E	2
33	F20914	Pressure transmitter	8472.xx.5717.05.19.61.01	1
34	108349	Cable for vacuum valve	MGR 400/900/1500	1
35	108350	Cable for filling valve	MGR 400/900	1
