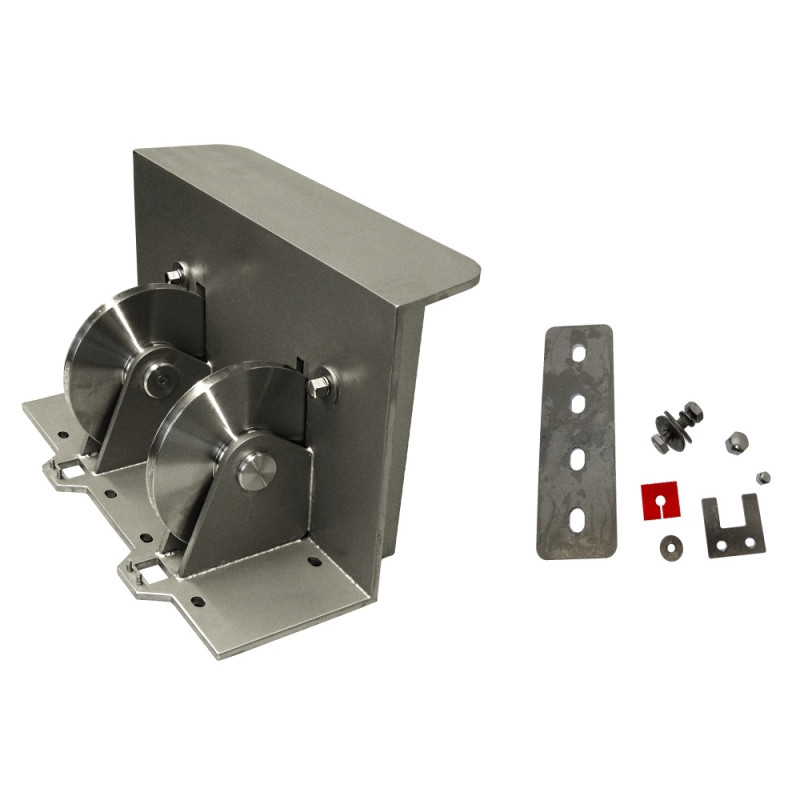

Umlenkung Complete Ruhle MGR500 No. 1 and Higher

Type: 110319
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2576

* Umlenkung Complete MGR 500 No.1 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Umlenkung Complete Ruhle MGR500 No. 1 and Higher

Type: 110319
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2576

* Umlenkung Complete MGR 500 No.1 and higher:
--106833 Umlenkung
--106830 Umlenkrolle
--106831 Bolzen
--106832 Aufnahme
--F20562 Schrägkugellager
--107127 Radial-Wellendichtring
--F21345 Radial-Wellendichtring
--F20207 Senkschraube
--106940 Dichtung
--106941 Blech
--F26876 Scheibe
--F20810 Hutmutter
--F20588 Sechskantschraube
--F22907 Scheibe
--110317 Führung
--110318 Führung
--110249 Blech
--110269 Scharnier
--110270 Scharnier
--F20811 Hutmutter
--F20811 Hutmutter
--F29301 Scheibe
--111595 Eingreifschutz
--F20130 Zylinderschraube
--F26379 Federring
--F20147 Sechskantmutter

Umlenkung Complete for Ruhle MGR500 No.1 and Higher Vacuum Tumbler

Pos No.	Part No.	Description	Add Info	Required
1	106833	Baffle	MGR 900	1
2	106830	Baffle	Ø 217 x 34	2
3	106831	Bolt	Ø 46 x 61	2
4	106832	Housing	Ø 46 x 24,5	2
5	F20562	Tapered ball bearing	DIN628 - 3205	2
6	107127	Radial shaft seal	Ø 40 x Ø 52 x 7	2
7	F21345	Radial shaft seal	Ø 35 x Ø 47 x 7	2
8	F20207	Countersunk bolt	DIN7991 M 8 x 25	2
9	106940	Seal	32 x 28 x 4	4
10	106941	Plate/Sheet	50 x 47 x 2	2
11	F26876	Disc	Ø 6,5 x Ø 20 x 4	4
12	F20810	Cap Nut	DIN917 M 6	4
13	F20588	Hexagonal bolt	DIN933 M 10 x 40	8
14	F22907	Washer	Ø 10,5 x Ø 35 x 3	24
15	110317	Guide	MGR 900 / MPR 500	1
16	110318	Guide	MGR 900 / MPR 500	1
17	110249	Plate/Sheet	209 x 70 x 5	2
18	110269	Hinge	112,5 x 102,5 x 9 x 5	2
19	110270	Hinge	102,5 x 98 x 23 x 5	2
20	F20811	Cap nut	DIN917 M 10	8
21	F29301	Disc	Ø 12,5 x Ø 40 x 4	2
22	F20812	Cap nut	DIN917 M 12	2
23	111595	Protection against acc contact	20 x 20 x 68	2
24	F20130	Cylinder head screw	DIN912 M 6 x 20	4
25	F26379	Spring lock washer	DIN127 B 10	8
26	F20147	Hexagonal nut	DIN934 M 10	8

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Umlenkung Complete for Ruhle MGR500 No.1 and Higher Vacuum Tumbler

Pos No.	Part No.	Description	Add Info	Required
1	106833	Baffle	MGR 900	1
2	106830	Baffle	Ø 217 x 34	2
3	106831	Bolt	Ø 46 x 61	2
4	106832	Housing	Ø 46 x 24,5	2
5	F20562	Tapered ball bearing	DIN628 - 3205	2
6	107127	Radial shaft seal	Ø 40 x Ø 52 x 7	2
7	F21345	Radial shaft seal	Ø 35 x Ø 47 x 7	2
8	F20207	Countersunk bolt	DIN7991 M 8 x 25	2
9	106940	Seal	32 x 28 x 4	4
10	106941	Plate/Sheet	50 x 47 x 2	2
11	F26876	Disc	Ø 6,5 x Ø 20 x 4	4
12	F20810	Cap Nut	DIN917 M 6	4
13	F20588	Hexagonal bolt	DIN933 M 10 x 40	8
14	F22907	Washer	Ø 10,5 x Ø 35 x 3	24
15	110317	Guide	MGR 900 / MPR 500	1
16	110318	Guide	MGR 900 / MPR 500	1
17	110249	Plate/Sheet	209 x 70 x 5	2
18	110269	Hinge	112,5 x 102,5 x 9 x 5	2
19	110270	Hinge	102,5 x 98 x 23 x 5	2
20	F20811	Cap nut	DIN917 M 10	8
21	F29301	Disc	Ø 12,5 x Ø 40 x 4	2
22	F20812	Cap nut	DIN917 M 12	2
23	111595	Protection against acc contact	20 x 20 x 68	2
24	F20130	Cylinder head screw	DIN912 M 6 x 20	4
25	F26379	Spring lock washer	DIN127 B 10	8
26	F20147	Hexagonal nut	DIN934 M 10	8
