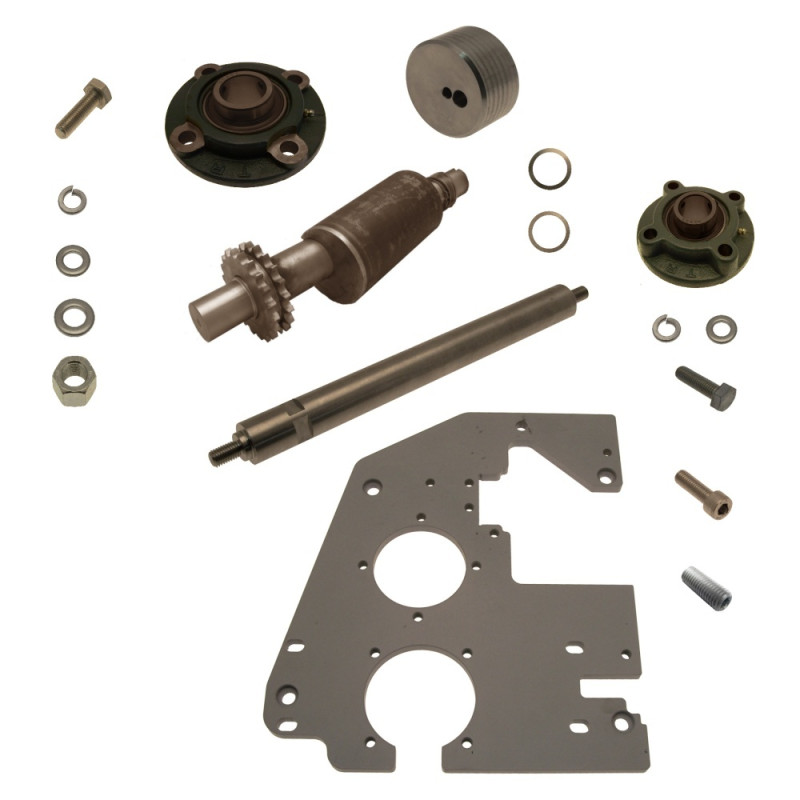

Tumbling Shaft Complete Ruhle SR2 No. 249 and Higher

Type: F41392
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 823

Note: Shipping to be Determined.

* Tumbling Shaft SR2-Turbo No. 249 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Tumbling Shaft Complete Ruhle SR2 No. 249 and Higher

Type: F41392
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 823

Note: Shipping to be Determined.

* Tumbling Shaft SR2-Turbo No. 249 and higher:
--F26889 Shaft
--F26883 Flange bearing
--F27693 U-Scheibe
--F27693 U-Scheibe
--F26379 Spring lock washer
--F26379 Spring lock washer
--F22919 Hexagonal bolt
--F26888 Plate
--F41393 Tumbling shaft
--F21249 Compensating disc
--F245405 Disc
-- F22621 Cylinder head screw
--F20227 Threaded pin
-- F26883a Flange bearing
--F26887 Weight
--F20693 Hexagonal bolt
--F20202 U-Scheibe
--F20204 Sechskantmutter

Tumbling Shaft Complete for Ruhle SR2 Dicer No. 249 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F26889	Shaft	Ø 30 x 341	4
2	F26883	Flange bearing	UCFC 207	1
3	F27693	Washer	DIN125 A 10,5	8
4	F26379	Spring lock washer	DIN127 B 10	8
5	F22919	Hexagonal bolt	DIN933 M10 x 45	4
6	F26888	Plate	390 x 343 x 12	1
7	F41393	Tumbling shaft	SR 2 / SR 2 T	1
8	F21249	Compensating disc	Ø 36 x Ø 45 x 0,5	2
9	F245405	Disc	Ø 36 x Ø 45 x 0,65	2
10	F22621	Cylinder head screw	DIN912 M 8 x 25	1
11	F20227	Threaded pin	DIN914 M 8 x 16	1
12	F26883a	Flange bearing	UCFC 207	1
13	F26887	Weight	Ø 90 x 50	1
14	F20693	Hexagonal bolt	DIN933 M10 x 35	4
15	F20202	Washer	DIN125 A 13	4
16	F20204	Hexagonal Nut	DIN934 M 12	4

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Tumbling Shaft Complete for Ruhle SR2 Dicer No. 249 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F26889	Shaft	Ø 30 x 341	4
2	F26883	Flange bearing	UCFC 207	1
3	F27693	Washer	DIN125 A 10,5	8
4	F26379	Spring lock washer	DIN127 B 10	8
5	F22919	Hexagonal bolt	DIN933 M10 x 45	4
6	F26888	Plate	390 x 343 x 12	1
7	F41393	Tumbling shaft	SR 2 / SR 2 T	1
8	F21249	Compensating disc	Ø 36 x Ø 45 x 0,5	2
9	F245405	Disc	Ø 36 x Ø 45 x 0,65	2
10	F22621	Cylinder head screw	DIN912 M 8 x 25	1
11	F20227	Threaded pin	DIN914 M 8 x 16	1
12	F26883a	Flange bearing	UCFC 207	1
13	F26887	Weight	Ø 90 x 50	1
14	F20693	Hexagonal bolt	DIN933 M10 x 35	4
15	F20202	Washer	DIN125 A 13	4
16	F20204	Hexagonal Nut	DIN934 M 12	4
