Tumbling shaft Assembly

Type: 104901
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1252

Note: Shipping to be Determined.

* Tumbling shaft Assembly SR1-Turbo:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Tumbling shaft Assembly

Type: 104901
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1252

Note: Shipping to be Determined.

* Tumbling shaft Assembly SR1-Turbo:
--F41574 Tumbling shaft with slaee
--102593 Safety coupling
-- F20589 Pillow block
--F40198 Adjuster head
--F26877 Tapered ball bearing
-- F20417 Hexagonal bolt
--F21035 Disc
--F24031 Spring lock washer
-- F22858 Locking ring
--F20954 Hexagonal bolt
--F23173 Cylinder head screw
-- F26379 Spring lock washer
--F27693 Washer
--F27070 plate / sheet
-- F240977 Cylinder head screw
-- F23523 Cable
-- 104852 Limit switch

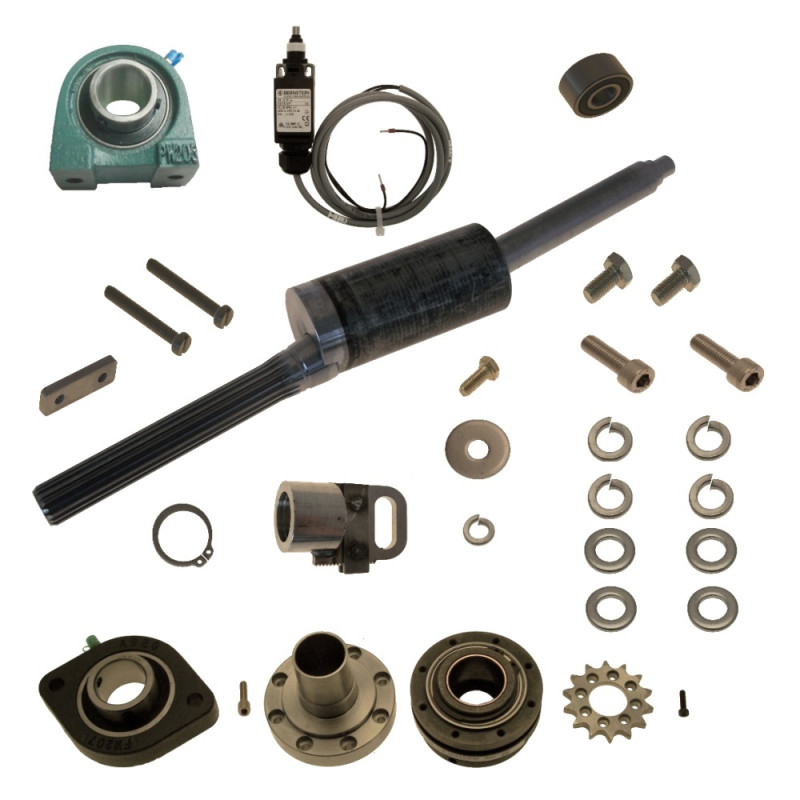

Tumbling shaft Assembly for SR1 Dicer

Pos No.	Part No.	Description	Add. Info	Required
1	F41574	Tumbling shaft with slaee	SR 1 / SR 1 Turbo	1
2	102593	Safety coupling	SR 1 / SR 1 Turbo	1
3	F20589	Pillow block	UCPW 205	1
4	F40198	Adjuster head	SR 1 / SR 1 Turbo	1
5	F26877	Tapered ball bearing	DIN628 - 3202 2RS	1
6	F20417	Hexagonal bolt	DIN933 M 6 x 16	1
7	F21035	Disc	Ø 6,5 x Ø 20 x 2	1
8	F24031	Spring lock washer	DIN127 B 6	1
9	F22858	Locking ring	DIN472 Ø 35 x 1,5	1
10	F20954	Hexagonal bolt	DIN933 M10 x 20	2
11	F23173	Cylinder head screw	DIN912 M10 x 40	2
12	F26379	Spring lock washer	DIN127 B 10	4
13	F27693	Washer	DIN125 A 10,5	4
14	F27070	plate / sheet	36 x 12 x 4	1
15	F240977	Cylinder head screw	DIN84 M 5 x 35	2
16	F23523	Cable	ÖZ-O 2 x 1.0 mm²	1.5
17	104852	Limit switch	I88-U1Z FF sw	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Tumbling shaft Assembly for SR1 Dicer

Pos No.	Part No.	Description	Add. Info	Required
1	F41574	Tumbling shaft with slaee	SR 1 / SR 1 Turbo	1
2	102593	Safety coupling	SR 1 / SR 1 Turbo	1
3	F20589	Pillow block	UCPW 205	1
4	F40198	Adjuster head	SR 1 / SR 1 Turbo	1
5	F26877	Tapered ball bearing	DIN628 - 3202 2RS	1
6	F20417	Hexagonal bolt	DIN933 M 6 x 16	1
7	F21035	Disc	Ø 6,5 x Ø 20 x 2	1
8	F24031	Spring lock washer	DIN127 B 6	1
9	F22858	Locking ring	DIN472 Ø 35 x 1,5	1
10	F20954	Hexagonal bolt	DIN933 M10 x 20	2
11	F23173	Cylinder head screw	DIN912 M10 x 40	2
12	F26379	Spring lock washer	DIN127 B 10	4
13	F27693	Washer	DIN125 A 10,5	4
14	F27070	plate / sheet	36 x 12 x 4	1
15	F240977	Cylinder head screw	DIN84 M 5 x 35	2
16	F23523	Cable	ÖZ-O 2 x 1.0 mm²	1.5
17	104852	Limit switch	I88-U1Z FF sw	1
