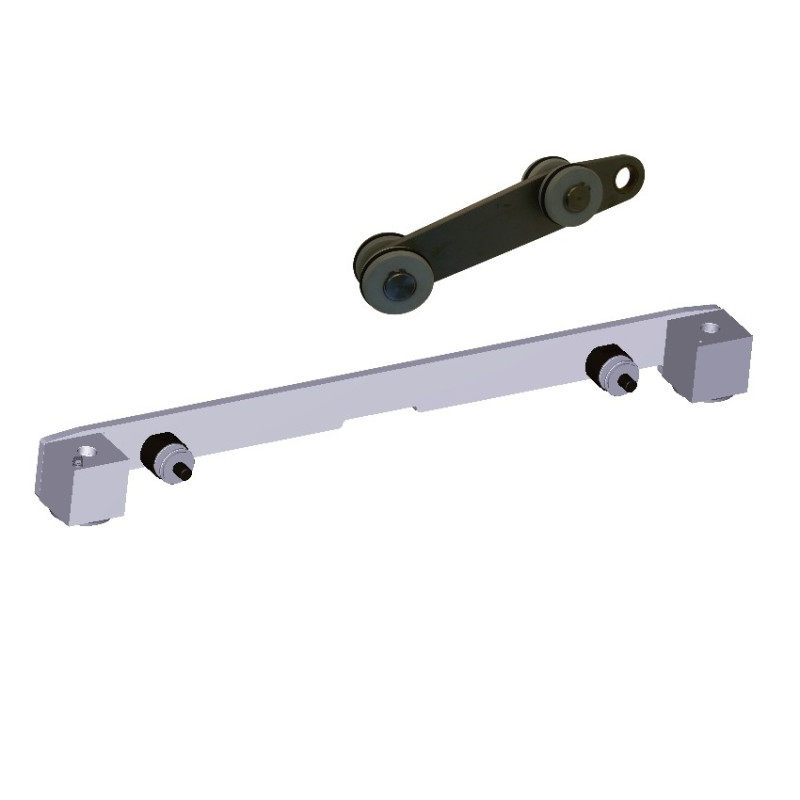

Traverse Complete 2

Type: F450283
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2116

* Traverse Complete 2 IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Traverse Complete 2

Type: F450283
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2116

* Traverse Complete 2 IR 112:
--F250286 Plate
--F250287 Housing
--F26861 Cylindrical pin
--F253040 Cylinder head screw
--F25831 Cylinder head screw
--F250289 Bolt
--F29208 Ring
--F450284 Lever
--F250290 Disc
--F252764 Hexagonal nut
--F20258 Washer
--F20417 Hexagonal bolt

Traverse Complete 2

Pos. No.	Part No.	Description	Add. Info	Required
1	F250286	Plate	915 x 81 x 12	1
2	F250287	Housing	75 x 75 x 69.5	2
3	F26861	Cylindrical pin	ISO8734 - Ø10 m6 x 20	4
4	F253040	Cylinder head screw	DIN6912 M12 x 25	4
5	F25831	Cylinder head screw	DIN912 M12 x 25	4
6	F250289	Bolt	Ø 50 x 81	2
7	F29208	Ring	Ø 25,5 x Ø 46 x 3	4
8	F450284	Lever	IR 112	2
9	F250290	Disc	Ø 16,5 x Ø 41 x 3	2
10	F252764	Hexagonal nut	DIN439 M 16 x 1,5	4
11	F20258	Washer	DIN125 A 6,4	2
12	F20417	Hexagonal bolt	DIN933 M 6 x 16	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Traverse Complete 2

Pos. No.	Part No.	Description	Add. Info	Required
1	F250286	Plate	915 x 81 x 12	1
2	F250287	Housing	75 x 75 x 69.5	2
3	F26861	Cylindrical pin	ISO8734 - Ø10 m6 x 20	4
4	F253040	Cylinder head screw	DIN6912 M12 x 25	4
5	F25831	Cylinder head screw	DIN912 M12 x 25	4
6	F250289	Bolt	Ø 50 x 81	2
7	F29208	Ring	Ø 25,5 x Ø 46 x 3	4
8	F450284	Lever	IR 112	2
9	F250290	Disc	Ø 16,5 x Ø 41 x 3	2
10	F252764	Hexagonal nut	DIN439 M 16 x 1,5	4
11	F20258	Washer	DIN125 A 6,4	2
12	F20417	Hexagonal bolt	DIN933 M 6 x 16	1
