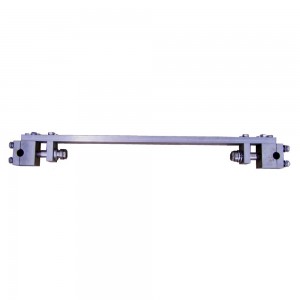

Traverse Complete 1

Type: F450719
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2106

* Traverse Complete 1 IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

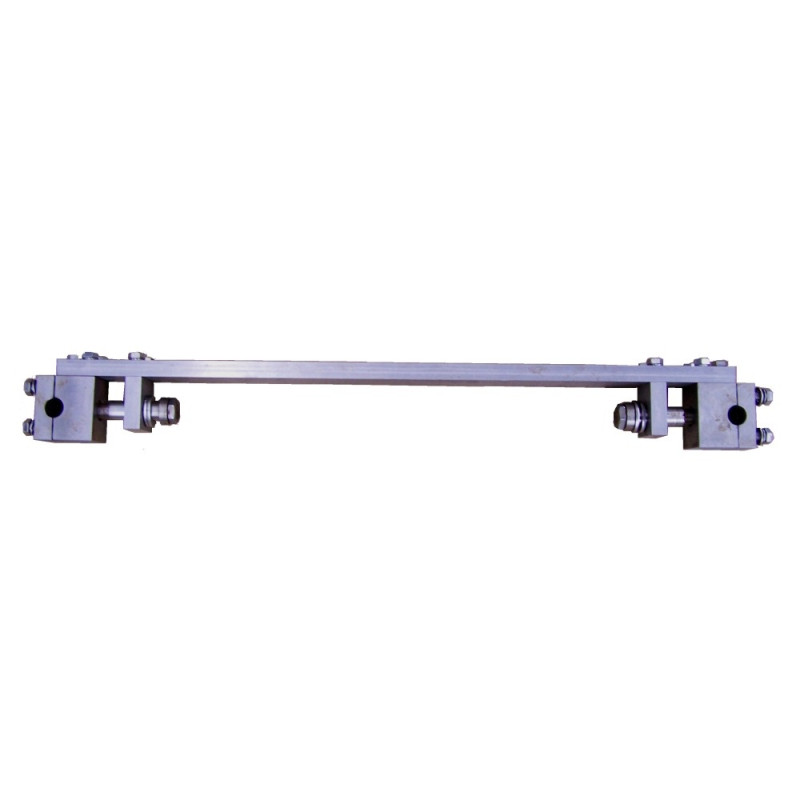

Traverse Complete 1

Type: F450719
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2106

* Traverse Complete 1 IR 112:
--F250079 Traverse
--F250080 Clamp cup
--104579 Clamp cup
--F250081 Plate
--F20210 Spring lock washer
--F20230 Hexagonal bolt
--F20692 Hexagonal bolt
--F252967 Disc
--F450083 Shaft
--F20259 Hexagonal nut
--F20949 Hexagonal bolt
--F21801 Threaded pin

Traverse Complete 1

Pos. No.	Part No.	Description	Add. Info	Required
1	F250079	Traverse	837 x 60 x 20	1
2	F250080	Clamp cup	80 x 60 x 48.5	2
3	104579	Clamp cup	80 x 60 x 23.5	2
4	F250081	Plate	65 x 60 x 20	2
5	F20210	Spring lock washer	DIN127 B 12	18
6	F20230	Hexagonal bolt	DIN933 M12 x 40	10
7	F20692	Hexagonal bolt	DIN933 M12 x 50	8
8	F252967	Disc	Ø 25,3 x Ø 40 x 4	4
9	F450083	Shaft	IR 112	2
10	F20259	Hexagonal nut	DIN934 M 8	2
11	F20949	Hexagonal bolt	DIN933 M 8 x 55	2
12	F21801	Threaded pin	DIN915 M 8 x 20	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Traverse Complete 1

Pos. No.	Part No.	Description	Add. Info	Required
1	F250079	Traverse	837 x 60 x 20	1
2	F250080	Clamp cup	80 x 60 x 48.5	2
3	104579	Clamp cup	80 x 60 x 23.5	2
4	F250081	Plate	65 x 60 x 20	2
5	F20210	Spring lock washer	DIN127 B 12	18
6	F20230	Hexagonal bolt	DIN933 M12 x 40	10
7	F20692	Hexagonal bolt	DIN933 M12 x 50	8
8	F252967	Disc	Ø 25,3 x Ø 40 x 4	4
9	F450083	Shaft	IR 112	2
10	F20259	Hexagonal nut	DIN934 M 8	2
11	F20949	Hexagonal bolt	DIN933 M 8 x 55	2
12	F21801	Threaded pin	DIN915 M 8 x 20	2
