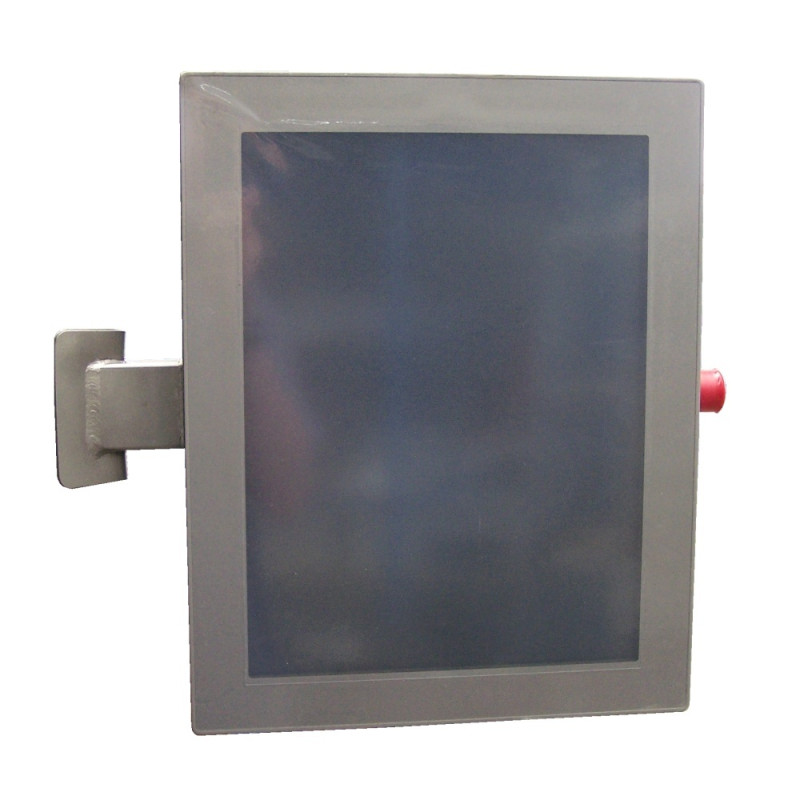

Touchhalter Assembly MGR 500 No.1 and higher

Type: 107972
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2593

* Touchhalter Assembly MGR 500 No.1 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Touchhalter Assembly MGR 500 No.1 and higher

Type: 107972
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2593

* Touchhalter Assembly MGR 500 No.1 and higher:
--108150 Touchhalter
--103364 PC / Rückenteil
--F28791 Kabel
--F20709 Aderendhülse
--F28388 Kontaktelement 1Ö
--F22888 U-Scheibe
--F21260 Federring
--F20259 Sechskantmutter
--111596 Display
--108119 Senkschraube
--F26600 Scheibe
--107524 Linsensenkschraube

Touchhalter Assembly

Part No.	Description	Add. Info	Required
1	108150	Touchhalter	MGR 400/900	1
2	103364	PC / Rückenteil	MKR 150/220,SR 2 T,IR 28/56,LR	1
3	F28791	Kabel	ÖZ-O 4 x 0.75 mm²	4900
4	F20709	Aderendhülse	0,75 mm² grau	8
5	F28388	Kontaktelement 1Ö	E01	2
6	F22888	U-Scheibe	DIN125 A 8,4	2
7	F21260	Federring	DIN128 A 8	2
8	F20259	Sechskantmutter	DIN934 M 8	6
9	111596	Display	Kuhnke Ventura Touch 15"	1
10	108119	Senkschraube	DIN7991 M 8 x 70	2
11	F26600	Scheibe	Ø 8,5 x Ø 20 x 2	2
12	107524	Linsensenkschraube	DIN964 M 5 x 30	4

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Touchhalter Assembly

Part No.	Description	Add. Info	Required
1	108150	Touchhalter	MGR 400/900	1
2	103364	PC / Rückenteil	MKR 150/220,SR 2 T,IR 28/56,LR	1
3	F28791	Kabel	ÖZ-O 4 x 0.75 mm²	4900
4	F20709	Aderendhülse	0,75 mm² grau	8
5	F28388	Kontaktelement 1Ö	E01	2
6	F22888	U-Scheibe	DIN125 A 8,4	2
7	F21260	Federring	DIN128 A 8	2
8	F20259	Sechskantmutter	DIN934 M 8	6
9	111596	Display	Kuhnke Ventura Touch 15"	1
10	108119	Senkschraube	DIN7991 M 8 x 70	2
11	F26600	Scheibe	Ø 8,5 x Ø 20 x 2	2
12	107524	Linsensenkschraube	DIN964 M 5 x 30	4
