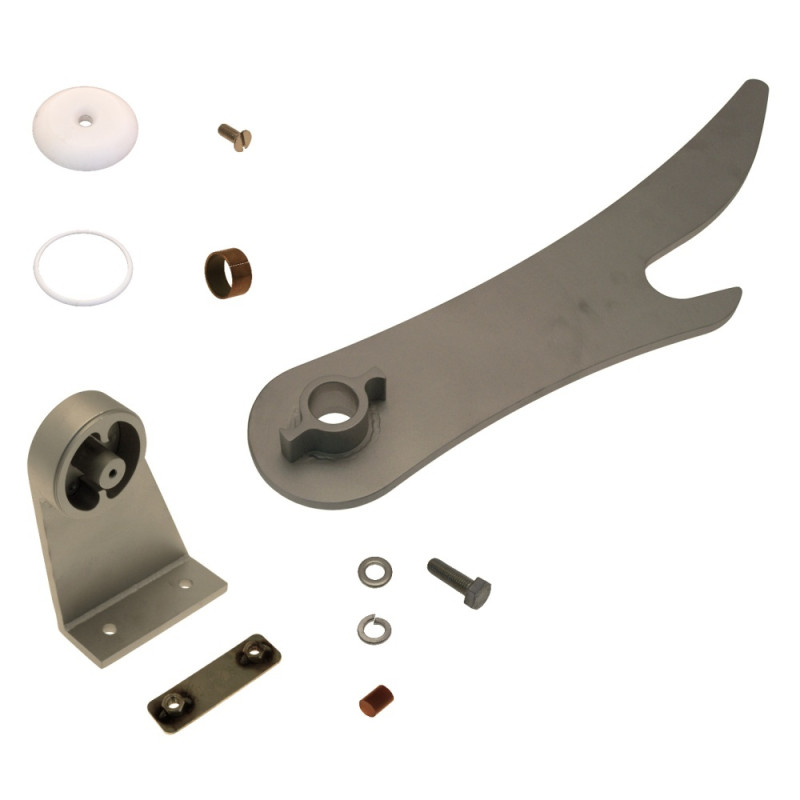

Tilting Device Exploded View SR3 Dicer No. 70 and Higher

Type: 104751
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1055

Note: Shipping to be Determined.

* Tilting Device Exploded View SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Tilting Device Exploded View SR3 Dicer No. 70 and Higher

Type: 104751
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1055

Note: Shipping to be Determined.

* Tilting Device Exploded View SR3 Lifting unit for No. 70 and higher:
--F41926 Housing
--F41945 Starting sheet
--F20202 Washer
--F20210 Spring lock washer
-- F20230 Hexagonal bolt
--F41944 Fork
--F28677 Buffer
--F28695 Ring
--F26845 Slide bearing
--F28661 Ring
--F21490 Countersunk bolt

Tilting Device Exploded View for Ruhle Dicer SR3 with no. 70 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F41926	Housing	SR 3	1
2	F41945	Starting sheet	SR 3	1
3	F20202	Washer	DIN125 A 13	2
4	F20210	Spring lock washer	DIN127 B 12	2
5	F20230	Hexagonal bolt	DIN933 M12 x 40	2
6	F41944	Fork	SR 3	1
7	F28677	Buffer	Ø 16 x 21	4
8	F28695	Ring	Ø 86,1 x Ø 96 x 3	1
9	F26845	Slide bearing	DIN1850 - J25 x 28 x 15	2
10	F28661	Ring	Ø 9 x Ø 68 x 10	1
11	F21490	Countersunk bolt	DIN963 M 8 x 20	1
