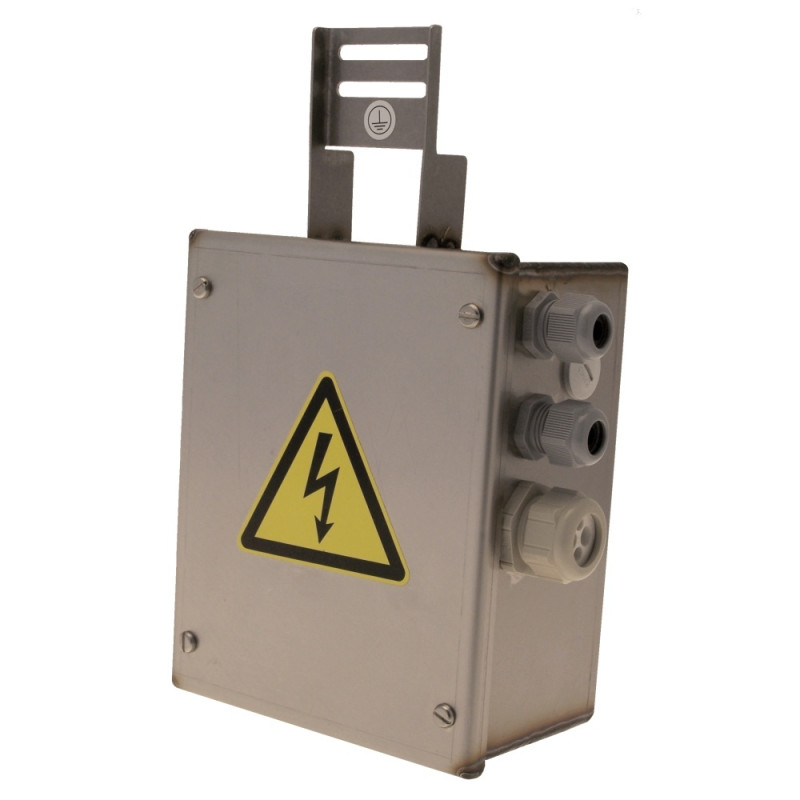

Switch Box Complete Ruhle PR15 Meat Injector

Type: F458490
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1978

* Switch Box Complete PR 15:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Complete Ruhle PR15 Meat Injector

Type: F458490
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1978

* Switch Box Complete PR 15:
--F10131 Sticker
--F20664 Seal
--F20286 Monitoring unit
--F20723 Fuse terminal grey
--F27065 Side plate grey
--F26053 Fuse 2.0 AT
--F22287 Motor protect relay 2.6 -3.7 A
--F20285 Rectifier
--F27095 Power contactor 230VAC
--F27098 Aux. switch block
--F26382 Counter - operating hours 230V
--F21960 Terminal - 1x, blue
--F20903 Protective conductor terminal
--F20301 Terminal - 1x, grey
--F27727 Side plate grey
--F29058 Cable gland
--F25978 Cable gland
--F240172 Sealing ring
--F25780 Hexagonal nut
--F24720 Hexagonal nut
--F26115 blank plug
--F28278 End terminal

Switch box Complete Ruhle PR15 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F10131	Sticker	flash	1
2	F20664	Seal	18 x 3	400 mm
3	F20286	Monitoring unit	MÜZ 202	1
4	F20723	Fuse terminal grey	5.0 x 20mm	1
5	F27065	Side plate grey	FEM 8S	1
6	F26053	Fuse 2.0 AT	5,0 x 20 mm	2
7	F22287	Motor protect relay 2.6 -3.7 A	LR 2-K0310	1
8	F20285	Rectifier	EBR 3	1
9	F27095	Power contactor 230VAC	LC1 K0910P7	1
10	F27098	Aux. switch block	LA1KN11	1
11	F26382	Counter - operating hours 230V	BW 40	1
12	F21960	Terminal - 1x, blue	4mm²	1
13	F20903	Protective conductor terminal	2x 4mm²	2
14	F20301	Terminal - 1x, grey	4mm²	2
15	F27727	Side plate grey	FEM 6	1
16	F29058	Cable gland	M 20 x 1.5	2
17	F25978	Cable gland	M 32 x 1.5	1
18	F240172	Sealing ring	M 32 / 4 x 7 mm
19	F25780	Hexagonal nut	M 20 x 1,5	3
20	F24720	Hexagonal nut	M 32 x 1,5	1
21	F26115	blank plug	M 20 x 1,5	1
22	F28278	End terminal	BNK - BADL	1
