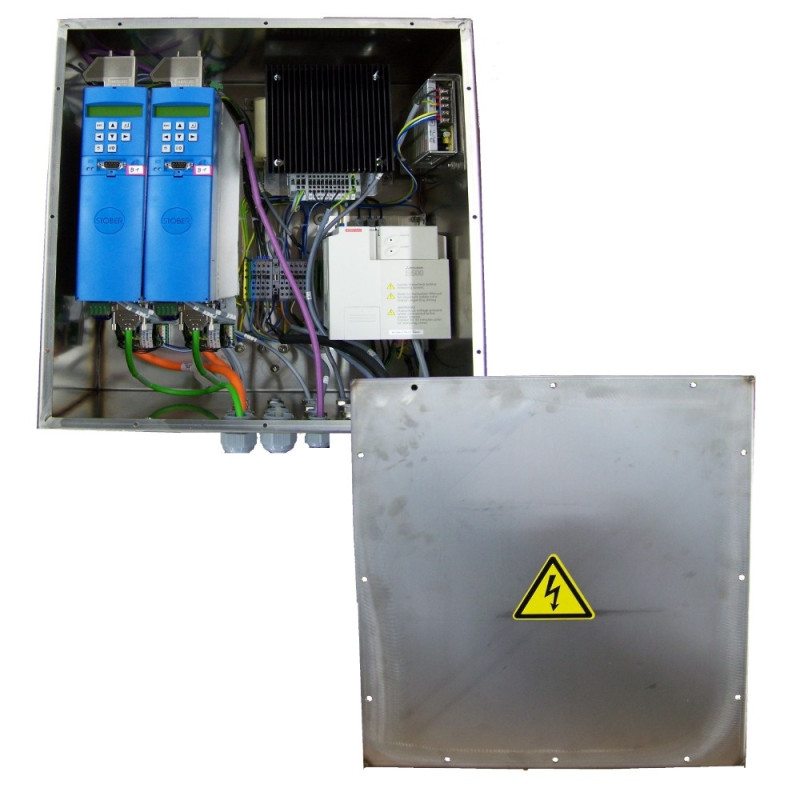

Switch Box Assembly Ruhle IR112 F450678

Type: F450678
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2231

* Switch Box Assembly 2 IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Assembly Ruhle IR112 F450678

Type: F450678
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2231

* Switch Box Assembly 2 IR 112:
--100402 Switch box
--100193 Bracket
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F28732 lock washer
--F23418 Disc
--F21260 Spring lock washer
--F22449 Hexagonal bolt
--F20664 Seal
--F250695 Lid
--F21045 Washer
--F20260 Spring lock washer
--F22174 Cylinder head screw
--F21035 Disc
--F21047 Hexagonal bolt
--F148541 Sticker
--F10131 Sticker
--F29046 Line filter 0.75kW
--106082 Programmed FC
--F20723 Fuse terminal grey
--F27064 Fuse 3.15 AT
--F27068 Power supply 400VAC/24VDC
--F248631 Power supply 230VAC/24VDC
--102225 BUS cable
--F27555 Cable
--F27320 Cable
--F27759 Cable
--F23525 Cable
--F23066 Cable
--F23343 Cable
--F28100 Cable
--F28100 Cable
--F28100 Cable
--F28100 Cable
--F28100 Cable
--F28100 Cable
--F28100 Cable
--F247477-1 Servo converter
--F247477-2 Servo converter

Switch Box Assembly Ruhle IR112 F450678

Pos No.	Part No.	Description	Add Info	Required
1	100402	Switch box	IR 112	1
2	100193	Mounting plate	33 x 125 x 165 x 2	1
3	F20258	Washer	DIN125 A 6,4	6
4	F24021	Spring lock washer	DIN127 B 8	6
5	F20203	Hexagonal nut	DIN934 M 6	6
6	F20258	lock washer	DIN6797-A ø 6,4	4
7	F23418	Disc	Ø 8,5 x Ø 35 x 3	2
8	F21260	Spring lock washer	DIN127 B 6	2
9	F22449	Hexagonal bolt	DIN933 M 8 x 20	2
10	F20664	Seal	18 x 3	960 mm
11	F250695	Lid	500 x 455 x 18 x 2	1
12	F21045	Washer	DIN125 A 5,3	16
13	F20260	Spring lock washer	DIN127 B 5	20
14	F22174	Cylinder head screw	DIN912 M 5 x 12	20
15	F21035	Disc	Ø 6,5 x Ø 20 x 2	4
16	F21047	Hexagonal bolt	DIN933 M 6 x 12	4
17	F148541	Sticker	BMK02	4
18	F10131	Sticker	flash	1
19	F29046	Line filter 0.75kW	FFR-E540 - 4.5A-SF1-LL	1
20	106082	Programmed FC	FR-E540 - 0.75K-EC	1
21	F20723	Fuse terminal grey	5.0 x 20mm	1
22	F27064	Fuse 3.15 AT	5,0 x 20 mm	2
23	F27068	Power supply 400VAC/24VDC	DNL 25	1
24	F248631	Power supply 230VAC/24VDC	SP75-24	1
25	102225	BUS cable	IR 112	1
26	F27555	Cable	H07RN-F 5G2.5	4000 mm
27	F27320	Cable	ÖZ-O 2x2.5 mm²	3400 mm
28	F27759	Cable	ÖCYZ-J 4x1.5 mm²	2300 mm
29	F23525	Cable	ÖZ-J 5 x 1.0 mm²	3450 mm
30	F23066	Cable	ÖZ-J 4 x 1.0 mm²	3700 mm
31	F23343	Cable	ÖZ-J 3 x 1.0 mm²	3250 mm
32	F28100	Cable	Liycy 3 x 0.5 mm²	3200 mm
33	F28100	Cable	Liycy 3 x 0.5 mm²	3550 mm
34	F28100	Cable	Liycy 3 x 0.5 mm²	4500 mm
35	F28100	Cable	Liycy 3 x 0.5 mm²	3550 mm
36	F28100	Cable	Liycy 3 x 0.5 mm²	3500 mm
37	F28100	Cable	Liycy 3 x 0.5 mm²	3500 mm
38	F28100	Cable	Liycy 3 x 0.5 mm²	3000 mm
39	F247477-1	Servo converter	MDS 5040/L	1
40	F247477-2	Servo converter	MDS 5040/L	1
