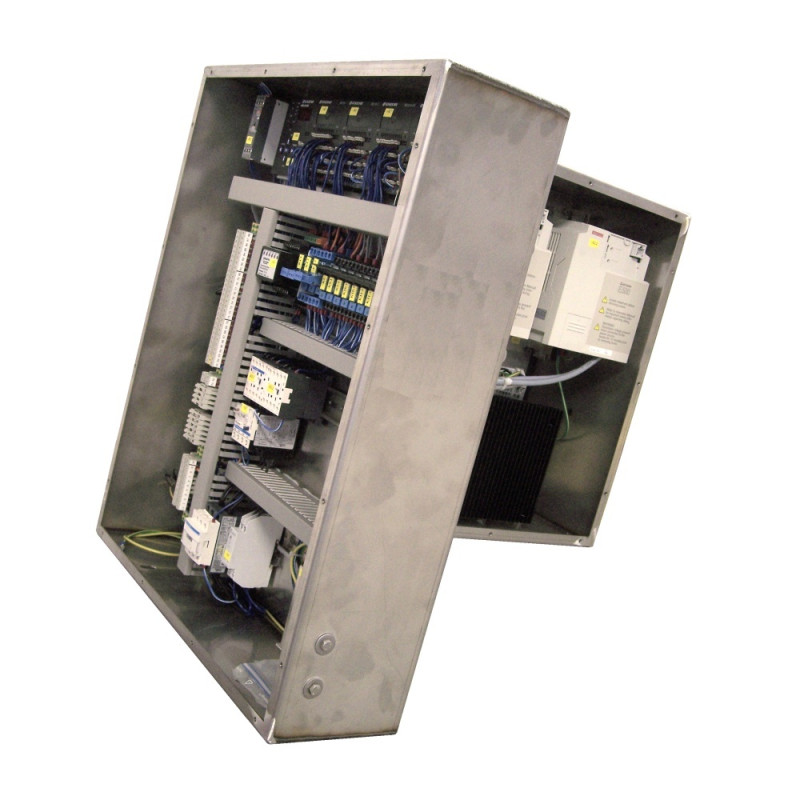

Switch box Complete IR56 Injector No. 210 and Higher

Type: 102052
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2447

* Switch box Complete IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch box Complete IR56 Injector No. 210 and Higher

Type: 102052
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2447

* Switch box Complete IR 56 No. 210 and higher:
--F42146 Housing
--F240728 Ring
--F456118 Mounting plate
--F22888 Washer
--F21260 Spring lock washer
--F20259 Hexagonal nut
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--102050 Mounting plate
--F29057 Cable gland
--F26374 Sealing ring
--F26132 Sealing ring
--F29060 Hexagonal nut
--F25978 Cable gland
--F240172 Sealing ring
--F24720 Hexagonal nut
--F143741 blank plug

Switch box Complete IR56 Injector No. 210 and Higher

Pos No.	Part No.	Description	Add info	Required
1	F42146	Housing	IR 28/56	1
2	F240728	Ring	Ø 9 x Ø 17 x 13	8
3	F456118	Mounting plate	IR 56	1
4	F22888	Washer	DIN125 A 8,4	8
5	F21260	Spring lock washer	DIN127 B 8	8
6	F20259	Hexagonal nut	DIN934 M 8	8
7	F20258	Washer	DIN125 A 6,4	2
8	F24031	Spring lock washer	DIN127 B 6	2
9	F20203	Hexagonal nut	DIN934 M 6	2
10	102050	Mounting plate	IR 28/56	1
11	F29057	Cable gland	M 25 x 1.5	8
12	F26374	Sealing ring	M 25 / 2 x 6 mm	1
13	F26132	Sealing ring	M 25 / 4 x 6 mm	5
14	F29060	Hexagonal nut	M 25 x 1,5	8
15	F25978	Cable gland	M 32 x 1.5	3
16	F240172	Sealing ring	M 32 / 4 x 7 mm	3
17	F24720	Hexagonal nut	M 32 x 1,5	3
18	F143741	blank plug	M 32 x 1,5	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Switch box Complete IR56 Injector No. 210 and Higher

Pos No.	Part No.	Description	Add info	Required
1	F42146	Housing	IR 28/56	1
2	F240728	Ring	Ø 9 x Ø 17 x 13	8
3	F456118	Mounting plate	IR 56	1
4	F22888	Washer	DIN125 A 8,4	8
5	F21260	Spring lock washer	DIN127 B 8	8
6	F20259	Hexagonal nut	DIN934 M 8	8
7	F20258	Washer	DIN125 A 6,4	2
8	F24031	Spring lock washer	DIN127 B 6	2
9	F20203	Hexagonal nut	DIN934 M 6	2
10	102050	Mounting plate	IR 28/56	1
11	F29057	Cable gland	M 25 x 1.5	8
12	F26374	Sealing ring	M 25 / 2 x 6 mm	1
13	F26132	Sealing ring	M 25 / 4 x 6 mm	5
14	F29060	Hexagonal nut	M 25 x 1,5	8
15	F25978	Cable gland	M 32 x 1.5	3
16	F240172	Sealing ring	M 32 / 4 x 7 mm	3
17	F24720	Hexagonal nut	M 32 x 1,5	3
18	F143741	blank plug	M 32 x 1,5	1
