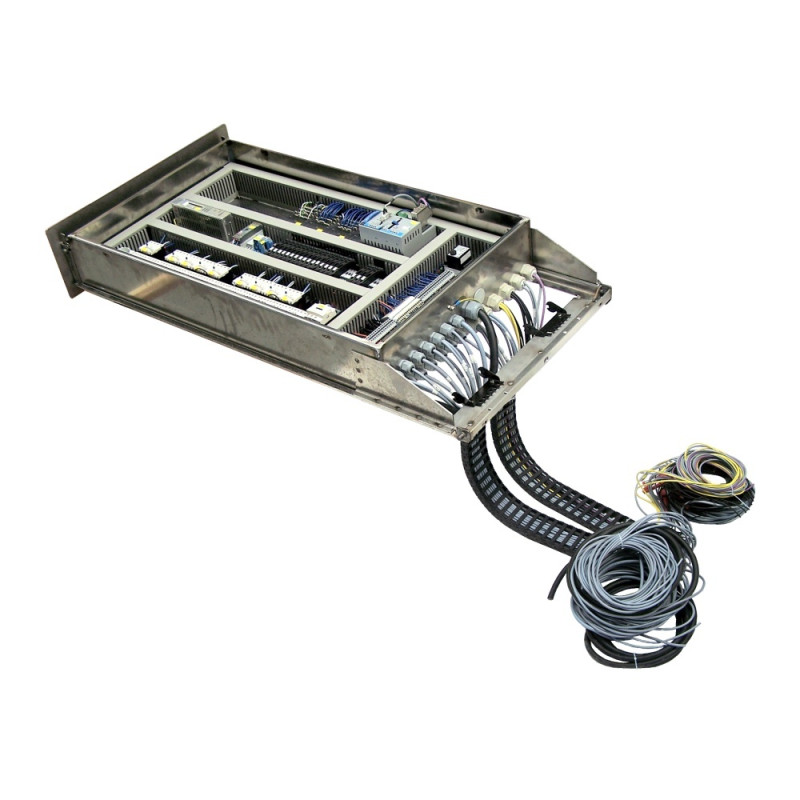

Switch Box Assembly Ruhle SR3 Dicer 106527

Type: 106527
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1058

Note: Shipping to be Determined.

* Switch Box Assembly SR3 Lifting unit for No. 70 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Assembly Ruhle SR3 Dicer 106527

Type: 106527
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1058

Note: Shipping to be Determined.

* Switch Box Assembly SR3 Lifting unit for No. 70 and higher:
--F41952 Switch box
--106529 Mounting plate
--F28732 lock washer
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F21385 Hexagonal bolt
--F20664 Seal
--F28718 Lid
--F21035 Disc
-- F20417 Hexagonal bolt
--F29189 Solenoid
--F245165 Cylinder head screw
--F29191 plate / sheet
--F245662 plate / sheet
--F28728 Grooved ball bearing
--106598 Main switch 63A
--104981 Control lead connection
--F249013 Plug-in connector SUB D, TM
--F249129 Hood metal.
--F29058 Cable gland
--F25780 Hexagonal nut
--F246492 Cable gland
--F246494 Cable gland
--F26173 Cable gland
--106698 Cable gland
--F143741 blank plug
--F24720 Hexagonal nut
--F10131 Sticker
--F29057 Cable gland
--F29060 Hexagonal nut
--104999 Cable
-- F23066 Cable
-- F23066 Cable
--F20698 Cable
--F20698 Cable
--F20698 Cable
--F20698 Cable
--F20698 Cable
--F23343 Cable
--F23523 Cable
--F23343 Cable
--F23523 Cable
--102477 Cable for servo converter
--F23523 Cable
--F27483 Cable
--106665 Cable for FC knife drive
--102490 Cable for FC servo drive
--102492 Cable for FC knife drive
--106543 Cable for supply
--102496 Cable for IPC-PLC
-- F24379 BUS cable CAN bus
--102505 Verlängerungskabel für Kraftme
--F23525 Cable
--F20694 Cable
--F20694 Cable
--F28791 Cable
--F28791 Cable
--F28791 Cable
--104159 EMC terminal block
--106675 ground wire
--106690 drag chain
--F28791 Cable

Switch Box Assembly Ruhle SR3 Dicer 106527

Pos No.	Part No.	Description	Add Info	Required
1	F41952	Switch box	SR 3	1
2	106529	Mounting plate	SR 3	1
3	F28732	lock washer	DIN6797-A ø 6,4	1
4	F20258	Washer	DIN125 A 6,4	3
5	F24031	Spring lock washer	DIN127 B 6	11
6	F20203	Hexagonal nut	DIN934 M 6	6
7	F21385	Hexagonal bolt	DIN933 M 6 x 30	1
8	F20664	Seal	18 x 3	3000mm
9	F28718	Lid	938 x 554 x 26,5 x 1,5	1
10	F21035	Disc	Ø 6,5 x Ø 20 x 2	14
11	F20417	Hexagonal bolt	DIN933 M 6 x 16	10
12	F29189	Solenoid	67 x 25 x 16	2
13	F245165	Cylinder head screw	DIN912 M 4 x 25	4
14	F29191	plate / sheet	70 x 12 x 3	2
15	F245662	plate / sheet	70 x 12 x 3	2
16	F28728	Grooved ball bearing	DIN625 - 6300 2RS	2
17	106598	Main switch 63A	D3 01/HS-HT5/9-BEH-MSS	1
18	104981	Control lead connection	K1B D220 KS	1
19	F249013	Plug-in connector SUB D, TM	9 poles SUB D	2
20	F249129	Hood metal.	9 poles SUB D	2
21	F29058	Cable gland	M 20 x 1.5	13
22	F25780	Hexagonal nut	M 20 x 1,5	13
23	F246492	Cable gland	M 32 x 1.5 2 x 7/3 x 7 S	3
24	F246494	Cable gland	M 32 x 1.5 2 x 8/2 x 6	1
25	F26173	Cable gland	M 32 x 1.5 8 x 5	2
26	106698	Cable gland	M 32 x 1.5	1
27	F143741	blank plug	M 32 x 1,5	2
28	F24720	Hexagonal nut	M 32 x 1,5	9
29	F10131	Sticker	flash	1
30	F29057	Cable gland	M 25 x 1.5	1
31	F29060	Hexagonal nut	M 25 x 1,5	1
32	104999	Cable	H07RN-F 5G6.0	3800 mm
33	F23066	Cable	ÖZ-J 4 x 1.0 mm²	4700 mm
34	F20698	Cable	ÖZ-J 4 x 1.5 mm²	5100 mm
35	F20698	Cable	ÖZ-J 4 x 1.5 mm²	5100 mm
36	F23066	Cable	ÖZ-J 4 x 1.0 mm²	5100 mm
37	F20698	Cable	ÖZ-J 4 x 1.5 mm²	3300 mm
38	F20698	Cable	ÖZ-J 4 x 1.5 mm²	4100 mm
39	F23343	Cable	ÖZ-J 3 x 1.0 mm²	3700 mm
40	F23523	Cable	ÖZ-O 2 x 1.0 mm²	3200 mm
41	F23343	Cable	ÖZ-J 3 x 1.0 mm²	2700 mm
42	F23523	Cable	ÖZ-O 2 x 1.0 mm²	5000 mm
43	F28791	Cable	ÖZ-O 4x0.75 mm²	3000 mm
44	102477	Cable for servo converter	SR 3 Servo	1
45	F23523	Cable	ÖZ-O 2 x 1.0 mm²	4900 mm
46	F27483	Cable	ÖZ-J 3 x 1.5 mm²	4000 mm
47	106665	Cable for FC knife drive	SR 3 Servo	1
48	102490	Cable for FC servo drive	SR 3 Servo	1
49	102492	Cable for FC knife drive	SR 3 Servo	1
50	106543	Cable for supply	SR 3 Servo	1
51	102496	Cable for IPC-PLC	SR 3 Servo	1
52	F24379	BUS cable CAN bus	Unitronik BUS CAN UL/CSA	5200 mm
53	102505	Verlängerungskabel für Kraftme	SR 3 Servo	1
54	F20698	Cable	ÖZ-J 4 x 1.5 mm²	2600 mm
55	F23525	Cable	ÖZ-J 5 x 1.0 mm²	4000 mm
56	F20694	Cable	ÖZ-O 2 x 0,5 mm²	3300 mm
57	F20694	Cable	ÖZ-O 2 x 0,5 mm²	3300 mm
58	F28791	Cable	ÖZ-O 4x0.75 mm²	3600 mm
59	F28791	Cable	ÖZ-O 4x0.75 mm²	3600 mm
60	104159	EMC terminal block	3 x SKL 3-6	1
61	106675	ground wire	lid - SK 1 SR 3	1
62	106690	drag chain	KR 050 22 link	2
63	F28791	Cable	ÖZ-O 4x0.75 mm²	5000 mm
