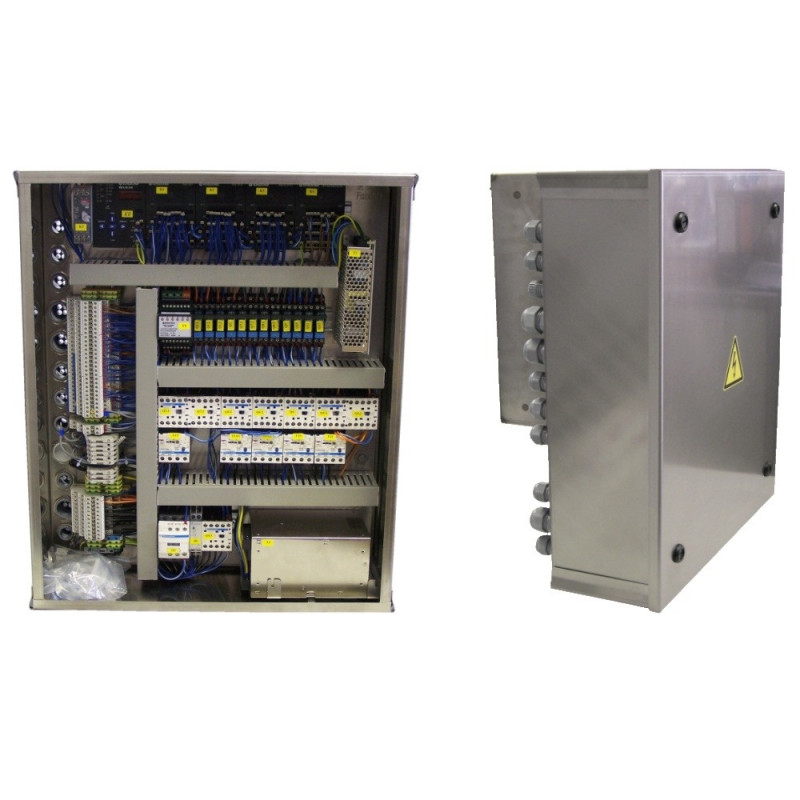

Switch Box Assembly Ruhle IR56 No. 473 and Higher

Type: 105859et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1723

* Switch Box Assembly IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Assembly Ruhle IR56 No. 473 and Higher

Type: 105859et
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1723

* Switch Box Assembly IR 56 Facelift No. 473 and higher:
-- F24716 Seal
-- 105751 Profile
-- F20664 Seal
-- 105858 door
-- F28732 lock washer
-- F20258 Washer
-- F24031 Spring lock washer
-- F21047 Hexagonal bolt
-- 105857 Switch box
--F20417 Hexagonal bolt
-- 105856 Lid
-- 105757 Bracket
-- 105758 Clamping lock
-- F20203 Hexagonal nut
-- F28731 Cable duct
-- F148541 Sticker
-- F20146 Top-hat rail
-- F22116 Disc
--106615 Bracket
-- F27364 Cylinder head screw
--F21049 Cylinder head screw
-- F27057 Phase sequence relay
--F29184 Monitoring unit
--108270 Programmed PLC-Modul
--F29048 PLC-Module
--F29049 PLC-Module
-- F29050 PLC-Module
--F29051 PLC-Module
-- F27064 Fuse 3.15 AT
-- F28410 Power supply 230VAC/24VDC
--F248630 Power supply 230VAC/24VDC
-- F28667 Power contactor 24VDC
--F28480 Power contactor 24VDC
-- F20916 turn contactor
-- F41539 Relay
-- F41540 Relay
--F27072 Time relay
-- F20911 Motor protect. relay 0.8 -1.2A
--F22283 Motor protect. relay 1.8 -2.6A
--F243821 Resistor
--F28736 Terminal strip
-- F144451 Sealing ring
-- F28278 End terminal
-- F26955 Relay 1 change-over
-- F20920 Relay 2 change-over
-- F27065 Side plate grey
-- F29057 Cable gland
--F29060 Hexagonal nut
--F25978 Cable gland
-- F24720 Hexagonal nut
--F26374 Sealing ring
-- F26132 Sealing ring
--F240172 Sealing ring
-- F251999 Cable gland
-- F252000 Cable sleeve
--F252002 Cable sleeve
-- 104916 Cable sleeve
--103490 USB socket
--104159 EMC terminal block

Switch Box Assembly Ruhle IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F24716	Seal	15 x 12	2
2	105751	Profile	610 x 522 x 170 x 1,5	1
3	F20664	Seal	18 x 3	3
4	105858	door	IR 56	1
5	F28732	lock washer	DIN6797-A ø 6,4	2
6	F20258	Washer	DIN125 A 6,4	7
7	F24031	Spring lock washer	DIN127 B 6	11
8	F21047	Hexagonal bolt	DIN933 M 6 x 12	2
9	105857	Switch box	IR 56	1
10	F20417	Hexagonal bolt	DIN933 M 6 x 16	9
11	105856	Lid	IR 56	1
12	105757	Bracket	70 x 45 x 25 x 3	1
13	105758	Clamping lock	No. 91-552-52	2
14	F20203	Hexagonal nut	DIN934 M 6	1
15	F28731	Cable duct	80 x 30 x 2000	1.2 m
16	F148541	Sticker	BMK02	3
17	F20146	Top-hat rail	35 x 7.5 x 2000	1.6 m
18	F22116	Disc	Ø 6,5 x Ø 30 x 3	4
19	106615	Bracket	25 x 25 x 20 x 2	6
20	F27364	Cylinder head screw	DIN84 M 6 x 16	1
21	F21049	Cylinder head screw	DIN84 M 3 x 6	4
22	F27057	Phase sequence relay	IK 9179	1
23	F29184	Monitoring unit	MÜZ 602/D24-UM	1
24	108270	Programmed PLC-Modul	IR 56_V6.2	1
25	F29048	PLC-Module	RIO 16I / KE	1
26	F29049	PLC-Module	RIO 16O / KE	1
27	F29050	PLC-Module	RIO 8I 8I/O	1
28	F29051	PLC-Module	RIO 4AI/4AO 20 mA	1
29	F27064	Fuse 3.15 AT	5,0 x 20 mm	22
30	F28410	Power supply 230VAC/24VDC	S-60-24 MW	1
31	F248630	Power supply 230VAC/24VDC	SP500-24	1
32	F28667	Power contactor 24VDC	LC1 D18BD	1
34	F28480	Power contactor 24VDC	LP1-K0901 BD3	4
35	F20916	turn contactor	LP2-KO910 BD3	2
36	F41539	Relay	2 We / 24 VDC / 6A	6
37	F41540	Relay	1 We / 24 VDC / 10A	6
38	F27072	Time relay	CT-ARE	1
39	F20911	Motor protect. relay 0.8 -1.2A	LR 2-K0306	4
40	F22283	Motor protect. relay 1.8 -2.6A	LR 2-K0308	1
41	F243821	Resistor	100 Ohm 0.5/0.6 W	1
42	F28736	Terminal strip	IR 28/56	1
43	F144451	Sealing ring	Ø 6 Silicon clear	280 mm
44	F28278	End terminal	BNK - BADL	2
45	F26955	Relay 1 change-over	40.51	2
46	F20920	Relay 2 change-over	44.52	1
47	F27065	Side plate grey	FEM 8S	3
48	F29057	Cable gland	M 25 x 1.5	8
49	F29060	Hexagonal nut	M 25 x 1,5	8
50	F25978	Cable gland	M 32 x 1.5	4
51	F24720	Hexagonal nut	M 32 x 1,5	4
52	F26374	Sealing ring	M 25 / 2 x 6 mm	1
53	F26132	Sealing ring	M 25 / 4 x 6 mm	5
54	F240172	Sealing ring	M 32 / 4 x 7 mm	3
55	F251999	Cable gland	KVT63-4, grey	1
56	F252000	Cable sleeve	KT 6, grey	2
57	F252002	Cable sleeve	Blank, grey	1
58	104916	Cable sleeve	KT 8, grey	1
59	103490	USB socket	A-USB-ABFMS-2M	1
60	104159	EMC terminal block	3 x SKL 3-6	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net
