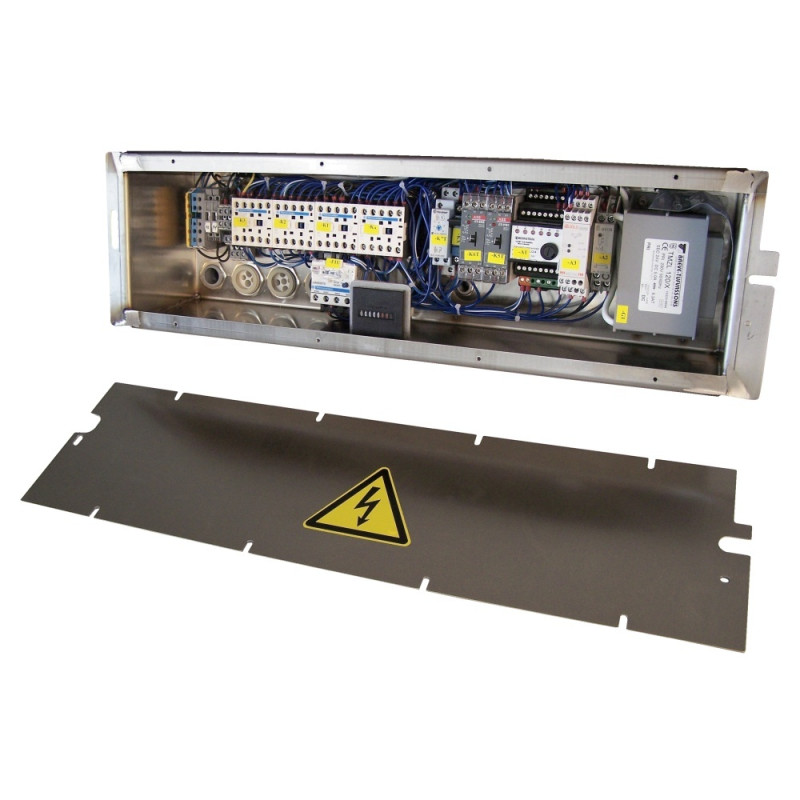

Switch Box Assembly - 104909

Type: 104909
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1259

Note: Shipping to be Determined.

* Switch Box Assembly SR1-Turbo:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Assembly - 104909

Type: 104909
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1259

Note: Shipping to be Determined.

* Switch Box Assembly SR1-Turbo:
-- F26773 Solenoid monitoring station
--F27057 Phase sequence relay
--F26393 Current relay
--F20723 Fuse terminal grey
--F26053 Fuse 2.0 AT
--F27065 Side plate grey
--F22287 Motor protect relay 2.6 -3.7 A
--F25994 Fuse 1.6 AT
--F20732 Power supply 230VAC/24VDC
--F26434 Power contactor 24VDC
--F27627 Auxiliary contactor 24VDC
--F27969 Time relay
-- F20734 Time relay
-- F41539 Relay
-- F26382 Counter - operating hours 230V
-- F28384 Resistor
-- F28385 Resistor
--F27053 Terminal - 3x, grey
--F27054 Terminal - 2x, blue
--F20719 Protective conductor terminal
-- F28438 Terminal - 2x, grey
-- F28442 Side plate grey
-- F28338 Side plate grey
--F246492 Cable gland
--F246494 Cable gland
--F24720 Hexagonal nut
-- F29057 Cable gland
-- F29060 Hexagonal nut
--F148541 Sticker
--F256572 Time relay
--F20948 Cable gland
-- F246330 Hexagonal nut
--F10131 Sticker
-- F20664 Seal
--102149 Circuit diagram

Switch Box Assembly for SR1 T

Pos No.	Part No.	Description	Add Info	Required
1	F26773	Solenoid monitoring station	MÜZ 602/24V	1
2	F27057	Phase sequence relay	IK 9179	1
3	F26393	Current relay	MK 9053N	1
4	F20723	Fuse terminal grey	5.0 x 20mm	2
5	F26053	Fuse 2.0 AT	5.0 x 20mm	2
6	F27065	Side plate grey	FEM 8S	1
7	F22287	Motor protect relay 2.6 -3.7 A	LR 2-K0310	1
8	F25994	Fuse 1.6 AT	5,0 x 20 mm	2
9	F20732	Power supply 230VAC/24VDC	BV 1329-0043-00000	1
10	F26434	Power contactor 24VDC	LP1-K0601 BD3	3
11	F27627	Auxiliary contactor 24VDC	CA3KN22BD3	1
12	F27969	Time relay	CT-VWE	1
13	F20734	Time relay	CT-ERE	1
14	F41539	Relay	2 We / 24 VDC / 6A	1
15	F26382	Counter - operating hours 230V	BW 40	1
16	F28384	Resistor	220 kOhm / 1.4 W	1
17	F28385	Resistor	100 kOhm / 1.4 W	1
18	F27053	Terminal - 3x, grey	2.5mm²	3
19	F27054	Terminal - 2x, blue	4mm²	1
20	F20719	Protective conductor terminal	2x4mm²	1
21	F28438	Terminal - 2x, grey	4mm²	1
22	F28442	Side plate grey	FEM 4A	1
23	F28338	Side plate grey	FED 3E	1
24	F246492	Cable gland	M 32 x 1.5 2 x 7/3 x 7 S	2
25	F246494	Cable gland	M 32 x 1.5 2 x 8/2 x 6	1
26	F24720	Hexagonal Nut	M 32 x 1,5	3
27	F29057	Cable gland	M 25 x 1.5	1
28	F29060	Hexagonal Nut	M 25 x 1,5	1
29	F148541	Sticker	BMK02	1
30	F256572	Time relay	1W 12-240VAC/DC	1
31	F20948	Cable gland	M 16 x 1.5	1
32	F246330	Hexagonal Nut	M 16 x 1.5	1
33	F10131	Sticker	flash	1
34	F20664	Seal	18 x 3	2
35	102149	Circuit diagram	SR 1 Turbo	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net
