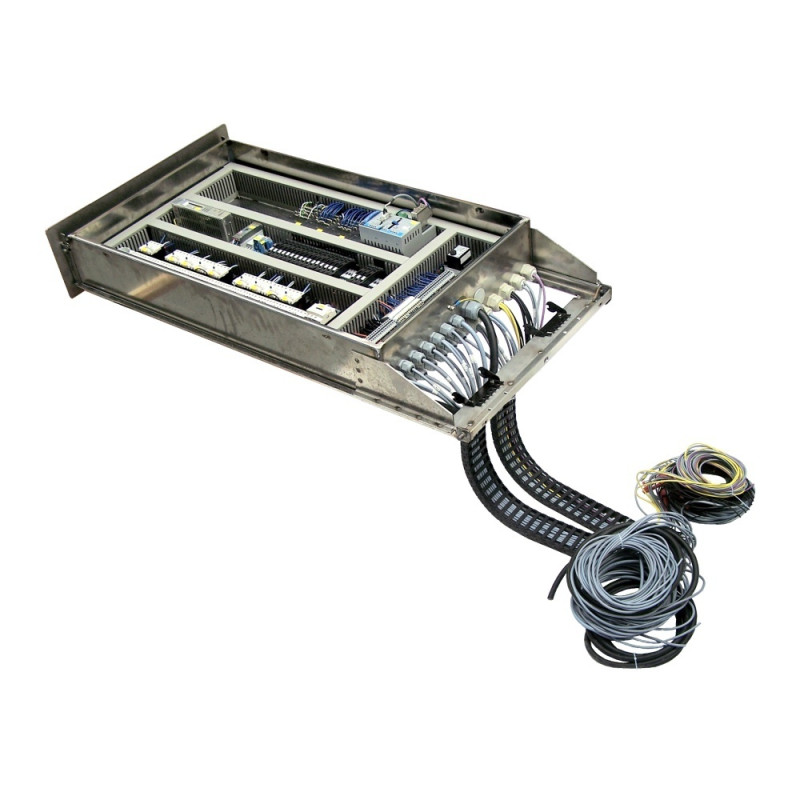

Switch Box Assembly Ruhle Dicer 104539

Type: 104539
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1166

Note: Shipping to be Determined.

* Switch Box Assembly SR3 Lifting unit No. 35 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Assembly Ruhle Dicer 104539

Type: 104539
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1166

Note: Shipping to be Determined.

* Switch Box Assembly SR3 Lifting unit No. 35 and higher:
--F41952 Switch box
--104635 Mounting plate
-- F28732 lock washer
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F21385 Hexagonal bolt
--F20664 Seal
-- F28718 Lid
--F21035 Disc
--F20417 Hexagonal bolt
--F29189 Solenoid
-- F20570 Washer
--F21377 Cylinder head screw
--F28728 Grooved ball bearing
--F29058 Cable gland
-- F246492 Cable gland
--F28006 Cover
-- F28005 Cover
-- F26173 Cable gland
--F143741 blank plug
--F24720 Hexagonal nut
--F10131 Sticker
--F29057 Cable gland
--F29060 Hexagonal nut
--F29060 Hexagonal nut
--F23066 Cable
--F20698 Cable
--F23343 Cable
--F23523 Cable
--F28791 Cable
--106619 Cable
--F27483 Cable
--F28100 Cable
-- F20700 Cable
--102494 Cable for supply
--102496 Cable for IPC-PLC
-- F24379 BUS cable CAN bus
-- F23525 Cable
--F20694 Cable
--F247557 Brake resistance
--F242947 Cable gland
-- F249129 Hood metal.
--F246494 Cable gland
--F249013 Plug-in connector SUB D, TM
--F21613 Main switch 25A
--F25780 Hexagonal nut

Switch Box Assembly for SR3 No. 35 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F41952	Switch box	SR 3	1
2	104635	Mounting plate	SR 3	1
3	F28732	lock washer	DIN6797-A ø 6,4	1
4	F20258	Washer	DIN125 A 6,4	3
5	F24031	Spring lock washer	DIN127 B 6	11
6	F20203	Hexagonal nut	DIN934 M 6	6
7	F21385	Hexagonal bolt	DIN933 M 6 x 30	1
8	F20664	Seal	18 x 3	3
9	F28718	Lid	938 x 554 x 26,5 x 1,5	1
10	F21035	Disc	Ø 6,5 x Ø 20 x 2	14
11	F20417	Hexagonal bolt	DIN933 M 6 x 16	10
12	F29189	Solenoid	67 x 25 x 16	2
13	F20570	Washer	DIN125 A 4,3	4
14	F21377	Cylinder head screw	DIN84 M 4 x 25	4
15	F28728	Grooved ball bearing	DIN625 - 6300 2RS	2
16	F29058	Cable gland	M 20 x 1.5	13
17	F246492	Cable gland	M 32 x 1.5 2 x 7/3 x 7 S	3
18	F28006	Cover	CA 20 schwarz, Gummi	1
19	F28005	Cover	CA 20, klar halbiert	2
20	F26173	Cable gland	M 32 x 1.5 8 x 5	2
21	F143741	blank plug	M 32 x 1,5	2
22	F24720	Hexagonal nut	M 32 x 1,5	8
23	F10131	Sticker	flash	1
24	F29057	Cable gland	M 25 x 1.5	1
25	F29060	Hexagonal nut	M 25 x 1,5	1
26	F23066	Cable	ÖZ-J 4 x 1.0 mm²	9.8 m
27	F20698	Cable	ÖZ-J 4 x 1.5 mm²	20.2 m
28	F23343	Cable	ÖZ-J 3 x 1.0 mm²	6.4 m
29	F23523	Cable	ÖZ-O 2 x 1.0 mm²	13.1 m
30	F28791	Cable	ÖZ-O 4x0.75 mm²	10.2 m
31	106619	Cable	Liycy 7 x 0.5 mm²	4.5 m
32	F27483	Cable	ÖZ-J 3 x 1.5 mm²	4
33	F28100	Cable	Liycy 2 x 0.5 mm²	14.46 m
34	F20700	Cable	Liycy 3 x 0.5 mm²	5
35	102494	Cable for supply	SR 3 Servo	1
36	102496	Cable for IPC-PLC	SR 3 Servo	1
37	F24379	BUS cable CAN bus	Unitronik BUS CAN UL/CSA	5.2 m
38	F23525	Cable	ÖZ-J 5 x 1.0 mm²	4
39	F20694	Cable	ÖZ-O 2 x 0,5 mm²	6.6 m
40	F247557	Brake resistance	FR-ABR-H 3.7 K	1
41	F29060	Hexagonal nut	M 25 x 1,5	1
42	F242947	Cable gland	M 25 x 1.5 / brass	1
43	F249129	Hood metal.	9 poles SUB D	2
44	F246494	Cable gland	M 32 x 1.5 2 x 8/2 x 6	1
45	F249013	Plug-in connector SUB D, TM	9 poles SUB D	2
46	F21613	Main switch 25A	CA20 T103/D-A008 FT22	1
47	F25780	Hexagonal nut	M 20 x 1,5	13

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Switch Box Assembly for SR3 No. 35 and higher

Pos No.	Part No.	Description	Add Info	Required
1	F41952	Switch box	SR 3	1
2	104635	Mounting plate	SR 3	1
3	F28732	lock washer	DIN6797-A ø 6,4	1
4	F20258	Washer	DIN125 A 6,4	3
5	F24031	Spring lock washer	DIN127 B 6	11
6	F20203	Hexagonal nut	DIN934 M 6	6
7	F21385	Hexagonal bolt	DIN933 M 6 x 30	1
8	F20664	Seal	18 x 3	3
9	F28718	Lid	938 x 554 x 26,5 x 1,5	1
10	F21035	Disc	Ø 6,5 x Ø 20 x 2	14
11	F20417	Hexagonal bolt	DIN933 M 6 x 16	10
12	F29189	Solenoid	67 x 25 x 16	2
13	F20570	Washer	DIN125 A 4,3	4
14	F21377	Cylinder head screw	DIN84 M 4 x 25	4
15	F28728	Grooved ball bearing	DIN625 - 6300 2RS	2
16	F29058	Cable gland	M 20 x 1.5	13
17	F246492	Cable gland	M 32 x 1.5 2 x 7/3 x 7 S	3
18	F28006	Cover	CA 20 schwarz, Gummi	1
19	F28005	Cover	CA 20, klar halbiert	2
20	F26173	Cable gland	M 32 x 1.5 8 x 5	2
21	F143741	blank plug	M 32 x 1,5	2
22	F24720	Hexagonal nut	M 32 x 1,5	8
23	F10131	Sticker	flash	1
24	F29057	Cable gland	M 25 x 1.5	1
25	F29060	Hexagonal nut	M 25 x 1,5	1
26	F23066	Cable	ÖZ-J 4 x 1.0 mm²	9.8 m
27	F20698	Cable	ÖZ-J 4 x 1.5 mm²	20.2 m
28	F23343	Cable	ÖZ-J 3 x 1.0 mm²	6.4 m
29	F23523	Cable	ÖZ-O 2 x 1.0 mm²	13.1 m
30	F28791	Cable	ÖZ-O 4x0.75 mm²	10.2 m
31	106619	Cable	Liycy 7 x 0.5 mm²	4.5 m
32	F27483	Cable	ÖZ-J 3 x 1.5 mm²	4
33	F28100	Cable	Liycy 2 x 0.5 mm²	14.46 m
34	F20700	Cable	Liycy 3 x 0.5 mm²	5
35	102494	Cable for supply	SR 3 Servo	1
36	102496	Cable for IPC-PLC	SR 3 Servo	1
37	F24379	BUS cable CAN bus	Unitronik BUS CAN UL/CSA	5.2 m
38	F23525	Cable	ÖZ-J 5 x 1.0 mm²	4
39	F20694	Cable	ÖZ-O 2 x 0,5 mm²	6.6 m
40	F247557	Brake resistance	FR-ABR-H 3.7 K	1
41	F29060	Hexagonal nut	M 25 x 1,5	1
42	F242947	Cable gland	M 25 x 1.5 / brass	1
43	F249129	Hood metal.	9 poles SUB D	2
44	F246494	Cable gland	M 32 x 1.5 2 x 8/2 x 6	1
45	F249013	Plug-in connector SUB D, TM	9 poles SUB D	2
46	F21613	Main switch 25A	CA20 T103/D-A008 FT22	1
47	F25780	Hexagonal nut	M 20 x 1,5	13
