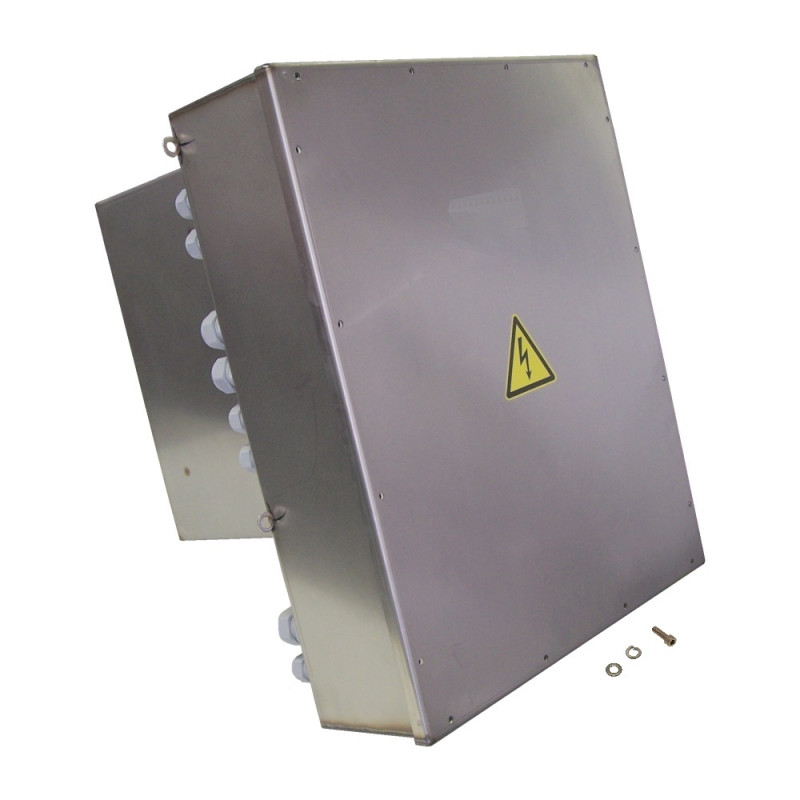

Switch Box Assembly IR56 Injector No. 210 and Higher - 102128

Type: 102128
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2446

* Switch Box Assembly IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Box Assembly IR56 Injector No. 210 and Higher - 102128

Type: 102128
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2446

* Switch Box Assembly IR 56 No. 210 and higher:
--102052 Switch box
--F240736 Lid
--F20664 Seal
--F240740 Lid
--F22174 Cylinder head screw
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F23418 Disc
--F21260 Spring lock washer
--F20455 Hexagonal bolt
--F10131 Sticker
--F240727 Bracket
--F20259 Hexagonal nut
--F25303 Cable
--101781 Cable for FC A1.2
--101783 Cable for FC A2.2
--101784 Cable power supply unit G3
--F23343 Cable
--F23343 Cable
--F23309 Socket
--F23343 Cable
--F23523 Cable
--F20694 Cable
--F28388 Contact element 1Ö
--101811 Cable for FC A1.2
--F25303 Cable
--101804 Cable for FC A2.2
--F27759 Cable
--F27759 Cable
--F23730 Cable
--F27425 Cable
--F20698 Cable
--F20698 Cable
--F20698 Cable
--101768 Cable main power supply filter
--F27483 Cable
--101770 Cable for power supply unit G3

Switch box Assembly for Ruhle IR56 Meat Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	102052	Switch box	IR 56	1
2	F240736	Lid	621 x 531 x 18	1
3	F20664	Seal	18 x 3	1.5 m
4	F240740	Lid	446 x 367 x 30	1
5	F22174	Cylinder head screw	DIN912 M 5 x 12	28
6	F20258	Washer	DIN125 A 6,4	4
7	F24031	Spring lock washer	DIN127 B 6	4
8	F20203	Hexagonal nut	DIN934 M 6	4
9	F23418	Disc	Ø 8,5 x Ø 35 x 3	3
10	F21260	Spring lock washer	DIN127 B 8	3
11	F20455	Hexagonal bolt	DIN933 M 8 x 25	2
12	F10131	Sticker	flash	2
13	F240727	Bracket	104 x 104 x 30	1
14	F20259	Hexagonal nut	DIN934 M 8	1
15	F25303	Cable	ÖZ-J 7x1.0 mm²	2650 mm
16	101781	Cable for FC A1.2	IR 28/56	1
17	101783	Cable for FC A2.2	IR 28/56	1
18	101784	Cable power supply unit G3	IR 28/56	1
19	F23343	Cable	ÖZ-J 3 x 1.0 mm²	3100 mm
20	F23343	Cable	ÖZ-J 3 x 1.0 mm²	2900 mm
21	F23309	Socket	GDM 3011	2
22	F23343	Cable	ÖZ-J 3 x 1.0 mm²	3000 mm
23	F23523	Cable	ÖZ-O 2 x 1.0 mm²	2100 mm
24	F20694	Cable	ÖZ-O 2 x 0,5 mm²	2350 mm
25	F28388	Contact element 1Ö	E01	1
26	101811	Cable for FC A1.2	IR 28/56	1
27	F25303	Cable	ÖZ-J 7x1.0 mm²	2650 mm
28	101804	Cable for FC A2.2	IR 28/56	1
29	F27759	Cable	ÖCYZ-J 4x1.5 mm²	1200 mm
30	F27759	Cable	ÖCYZ-J 4x1.5 mm²	1500 mm
31	F23730	Cable	ÖZ-J 7 x 1.5 mm²	2950 mm
32	F27425	Cable	ÖZ-J 5 x 1.5 mm²	2750 mm
33	F20698	Cable	ÖZ-J 4 x 1.5 mm²	3150 mm
34	F20698	Cable	ÖZ-J 4 x 1.5 mm²	2700 mm
35	F20698	Cable	ÖZ-J 4 x 1.5 mm²	2400 mm
36	101768	Cable main power supply filter	IR 28/56	1
37	F27483	Cable	ÖZ-J 3 x 1.5 mm²	3050 mm
38	101770	Cable for power supply unit G3	IR 28/56	1
