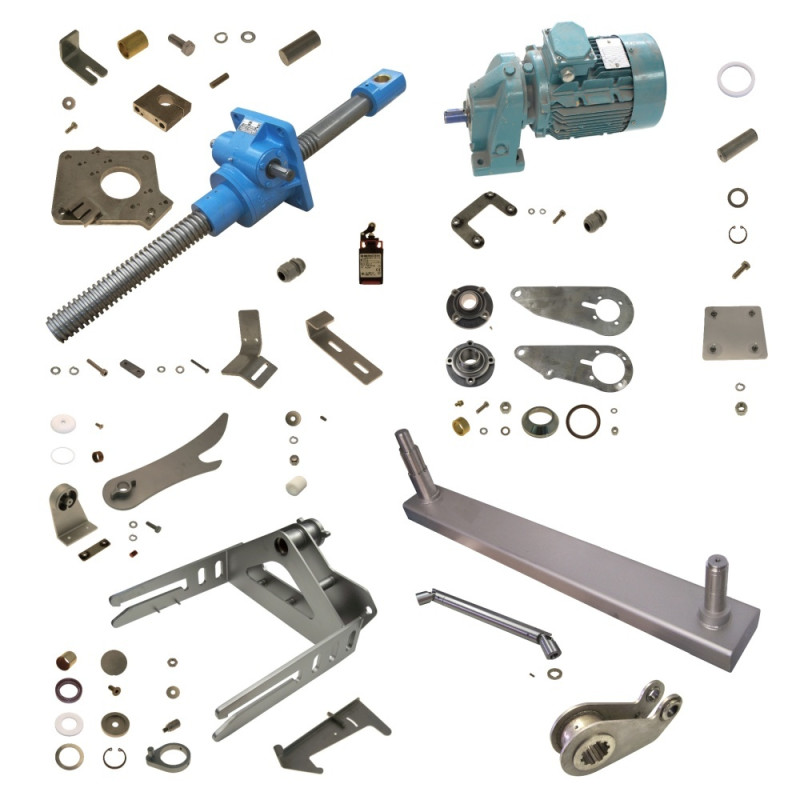

Standard trolley supply Assembly Ruhle SR3 Dicer No. 70 and Higher
Type: F41347
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1049
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1049
Note: Shipping to be Determined.
Standard trolley supply Assembly for Meat Dicer SR3 No. 70 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F41893 | Spindle unit | SR 3 | 1 |
 |
2 | 107806 | drive | SR 3 | 1 |
 |
3 | 104653 | Shaft | SR 3 | 1 |
 |
4 | F41348 | Cabin | SR 3 | 1 |
 |
5 | F41896 | Arm | SR 3 | 1 |
 |
6 | F28639 | Ring | Ø 92 x Ø 110 x 5 | 1 |
 |
7 | F41895 | Arm | SR 3 | 1 |
 |
8 | F41894 | Lever | SR 3 | 1 |
 |
9 | F28634 | bolt | Ø 40 x124 | 1 |
 |
10 | F21468 | Disc | Ø 40,3 x Ø 60 x 3 | 7 |
 |
11 | F25489 | Lock Ring | DIN471 Ø 40 x 1,75 | 2 |
 |
12 | F20693a | Hexagonal bolt | M10 x 35 | 1 |
 |
13 | 104379 | Lid | SR 3 | 1 |
 |
14 | F24031 | Spring lock washer | DIN127 B 6 | 4 |
 |
15 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
