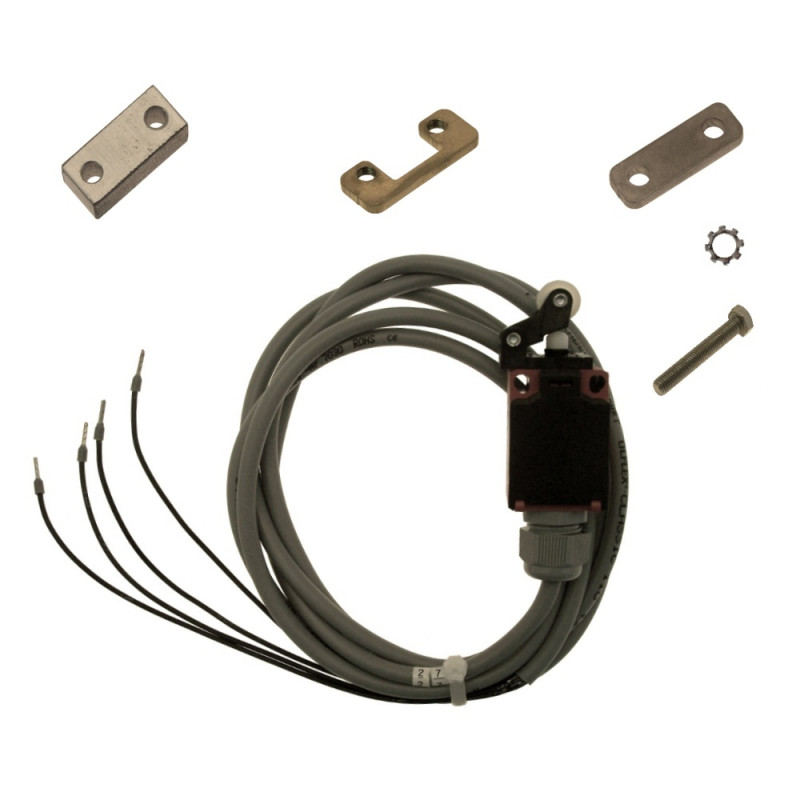

Sensor Unit Exploded View 1 103807 SR2 No. 249 and Higher

Type: 103807
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 848

Note: Shipping to be Determined.

* Sensor Unit Exploded View 1 SR2-Turbo No. 249 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Sensor Unit Exploded View 1 103807 SR2 No. 249 and Higher

Type: 103807
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 848

Note: Shipping to be Determined.

* Sensor Unit Exploded View 1 SR2-Turbo No. 249 and higher:
--F241266 Plate
--F26336 lock washer
--F21434 Hexagonal bolt
--F241281 Bracket
--F26246a Bracket
--102295 Cable for limit switch S14

Sensor Unit Exploded View 1 for SR2 Dicer No. 249 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F241266	Plate	35 x 15 x 15	1
2	F26336	lock washer	DIN6797-A Ø 5,3	2
3	F21434	Hexagonal bolt	DIN933 M 5 x 50	2
4	F241281	Bracket	36 x 14 x 4	1
5	F26246a	Bracket	36 x 12 x 4	1
6	102295	Cable for limit switch S14	SR 2 T	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Sensor Unit Exploded View 1 for SR2 Dicer No. 249 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F241266	Plate	35 x 15 x 15	1
2	F26336	lock washer	DIN6797-A Ø 5,3	2
3	F21434	Hexagonal bolt	DIN933 M 5 x 50	2
4	F241281	Bracket	36 x 14 x 4	1
5	F26246a	Bracket	36 x 12 x 4	1
6	102295	Cable for limit switch S14	SR 2 T	1
