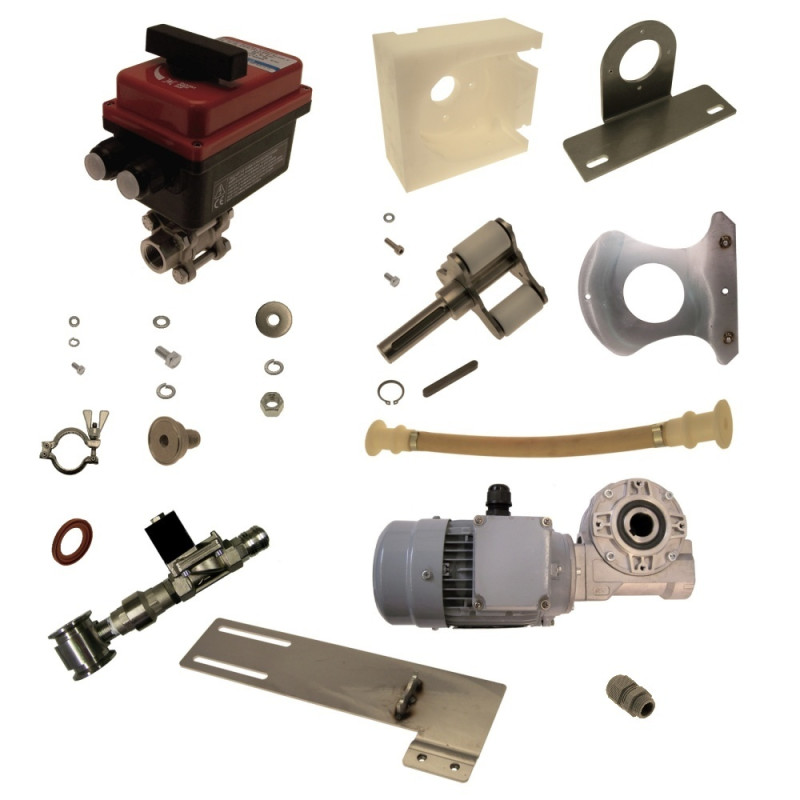

Secondary Pump Unit Assembly Ruhle IR56 Injector

Type: 101010
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1406

* Secondary Pump Unit Assembly IR 56:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Secondary Pump Unit Assembly Ruhle IR56 Injector

Type: 101010
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1406

* Secondary Pump Unit Assembly IR 56:
--F42140 Secondary pump
-- F448333 Housing
--F22888 Washer
--F21260 Spring lock washer
--F22449 Hexagonal bolt
--F29110 Seal
--F29114 Clamp light
--100690 valve unit
--F240613 Connector
--F22907 Disc
--F26379 Spring lock washer
--F20147 Hexagonal nut
--F20258 Washer
--F24031 Spring lock washer
--F26033 Hexagonal bolt
--F29045 Gear motor
-- F20948 Cable gland
-- F247852 Secondary pump valve IR28/56

Secondary Pump Unit Assembly for Ruhle IR56 Meat Injector

Pos No.	Part No.	Description	Add Info	Required
1	F42140	Secondary pump	IR 28/56	1
2	F448333	Housing	IR 28/56	1
3	F22888	Washer	DIN125 A 8,4	2
4	F21260	Spring lock washer	DIN127 B 8	2
5	F22449	Hexagonal bolt	DIN933 M 8 x 20	2
6	F29110	Seal	Ø 32 x Ø 52,5 x 6,5	3
7	F29114	Clamp light	DIN25-40/1-1/2"	4
8	100690	valve unit	IR 28/56	1
9	F240613	Connector	Ø 13 x Ø 50 x 38	2
10	F22907	Disc	Ø 10,5 x Ø 35 x 3	2
11	F26379	Spring lock washer	DIN127 B 10	2
12	F20147	Hexagonal nut	DIN934 M 10	2
13	F20258	Washer	DIN125 A 6,4	2
14	F24031	Spring lock washer	DIN127 B 6	2
15	F26033	Hexagonal bolt	DIN933 M 6 x 20	2
16	F29045	Gear motor	P 050 FB 010 RL63B2	1
17	F20948	Cable gland	M 16 x 1.5	1
18	F247852	Secondary pump valve IR28/56	15-2K-EW 10.33S-VL521-T	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Secondary Pump Unit Assembly for Ruhle IR56 Meat Injector

Pos No.	Part No.	Description	Add Info	Required
1	F42140	Secondary pump	IR 28/56	1
2	F448333	Housing	IR 28/56	1
3	F22888	Washer	DIN125 A 8,4	2
4	F21260	Spring lock washer	DIN127 B 8	2
5	F22449	Hexagonal bolt	DIN933 M 8 x 20	2
6	F29110	Seal	Ø 32 x Ø 52,5 x 6,5	3
7	F29114	Clamp light	DIN25-40/1-1/2"	4
8	100690	valve unit	IR 28/56	1
9	F240613	Connector	Ø 13 x Ø 50 x 38	2
10	F22907	Disc	Ø 10,5 x Ø 35 x 3	2
11	F26379	Spring lock washer	DIN127 B 10	2
12	F20147	Hexagonal nut	DIN934 M 10	2
13	F20258	Washer	DIN125 A 6,4	2
14	F24031	Spring lock washer	DIN127 B 6	2
15	F26033	Hexagonal bolt	DIN933 M 6 x 20	2
16	F29045	Gear motor	P 050 FB 010 RL63B2	1
17	F20948	Cable gland	M 16 x 1.5	1
18	F247852	Secondary pump valve IR28/56	15-2K-EW 10.33S-VL521-T	1
