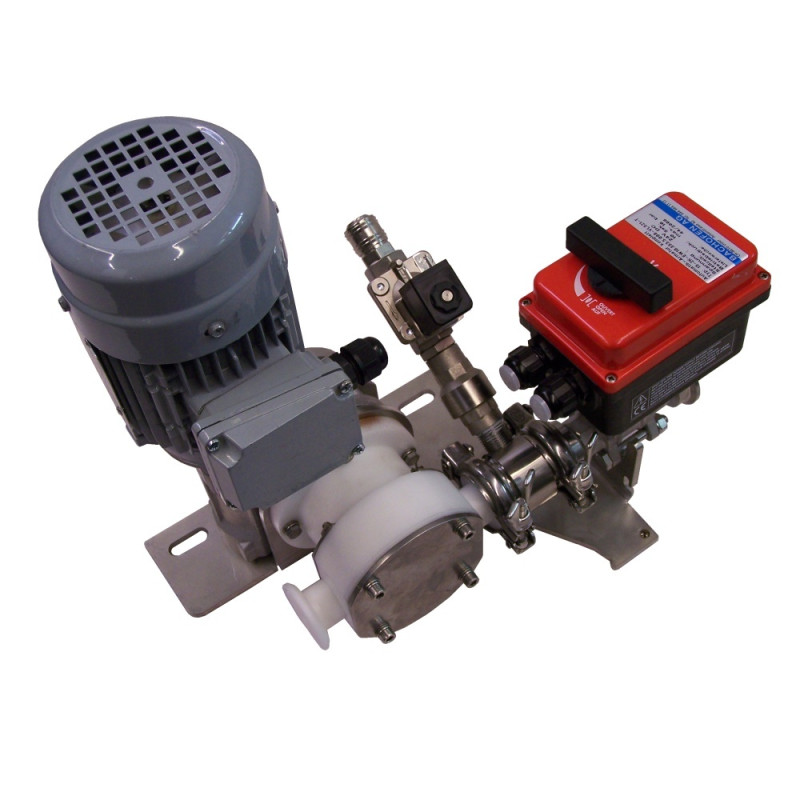

Secondary Pump Assembly Ruhle IR56 No. 473 and Higher

Type: 105795
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1688

* Secondary Pump Assembly IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Secondary Pump Assembly Ruhle IR56 No. 473 and Higher

Type: 105795
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1688

* Secondary Pump Assembly IR 56 Facelift No. 473 and higher:
-- 105710 Profile
--105775 Pump housing
-- F29114 Clamp light
--100690 valve unit
-- 105797 socket
-- F29354 Angle inside-to-inside
-- F29353 Hose socket
--F21385 Hexagonal bolt
-- F24031 Spring lock washer
--F20258 Washer
-- F20561 Spring key
--F27693 Washer
--F26379 Spring lock washer
-- F20147 Hexagonal nut
--F20130 Cylinder head screw
-- F29110 Seal
-- F29045 Gear motor
-- F247852 Secondary pump valve IR28/56
-- F20948 Cable gland
-- F20698 Cable
-- F23343 Cable
--F23309 Socket
-- F23066 Cable

Secondary Pump Assembly Ruhle IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105710	Profile	309 x 220 x 138 x 6	1
2	105775	Pump housing	IR 56	1
3	F29114	Clamp light	DIN25-40/1-1/2"	3
4	100690	valve unit	IR 28/56	1
5	105797	socket	Ø 13 x Ø 50 x 40	3
6	F29354	Angle inside-to-inside	90° FG 2023 1/2"	1
7	F29353	Hose socket	FG30 2313 1/2"	1
8	F21385	Hexagonal bolt	DIN933 M 6 x 30	4
9	F24031	Spring lock washer	DIN127 B 6	5
10	F20258	Washer	DIN125 A 6,4	5
11	F20561	Spring key	A 8 x 7 x 70	1
12	F27693	Washer	DIN125 A 10,5	2
13	F26379	Spring lock washer	DIN127 B 10	2
14	F20147	Hexagonal nut	DIN934 M 10	2
15	F20130	Cylinder head screw	DIN912 M 6 x 20	1
16	F29110	Seal	Ø 32 x Ø 52,5 x 6,5	3
17	F29045	Gear motor	P 050 FB 010 RL63B2	1
18	F247852	Secondary pump valve IR28/56	15-2K-EW 10.33S-VL521-T	1
19	F20948	Cable gland	M 16 x 1.5	1
20	F20698	Cable	ÖZ-J 4 x 1.5 mm²	3
21	F23343	Cable	ÖZ-J 3 x 1.0 mm²	2.7 m
22	F23309	Socket	GDM 3011	1
23	F23066	Cable	ÖZ-J 4 x 1.0 mm²	2.9 m

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Secondary Pump Assembly Ruhle IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105710	Profile	309 x 220 x 138 x 6	1
2	105775	Pump housing	IR 56	1
3	F29114	Clamp light	DIN25-40/1-1/2"	3
4	100690	valve unit	IR 28/56	1
5	105797	socket	Ø 13 x Ø 50 x 40	3
6	F29354	Angle inside-to-inside	90° FG 2023 1/2"	1
7	F29353	Hose socket	FG30 2313 1/2"	1
8	F21385	Hexagonal bolt	DIN933 M 6 x 30	4
9	F24031	Spring lock washer	DIN127 B 6	5
10	F20258	Washer	DIN125 A 6,4	5
11	F20561	Spring key	A 8 x 7 x 70	1
12	F27693	Washer	DIN125 A 10,5	2
13	F26379	Spring lock washer	DIN127 B 10	2
14	F20147	Hexagonal nut	DIN934 M 10	2
15	F20130	Cylinder head screw	DIN912 M 6 x 20	1
16	F29110	Seal	Ø 32 x Ø 52,5 x 6,5	3
17	F29045	Gear motor	P 050 FB 010 RL63B2	1
18	F247852	Secondary pump valve IR28/56	15-2K-EW 10.33S-VL521-T	1
19	F20948	Cable gland	M 16 x 1.5	1
20	F20698	Cable	ÖZ-J 4 x 1.5 mm²	3
21	F23343	Cable	ÖZ-J 3 x 1.0 mm²	2.7 m
22	F23309	Socket	GDM 3011	1
23	F23066	Cable	ÖZ-J 4 x 1.0 mm²	2.9 m
