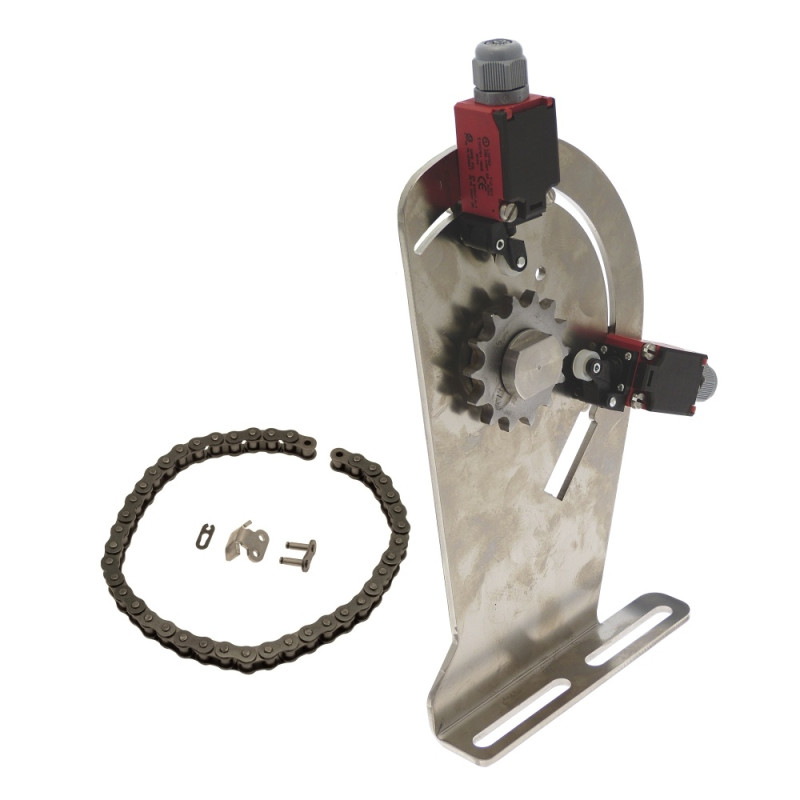

Switch Unit Complete IR56 No. 612 and Higher

Type: 106150et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2341

* Schalteinheit Complete IR 56 Facelift No 612 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Switch Unit Complete IR56 No. 612 and Higher

Type: 106150et
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2341

* Schalteinheit Complete IR 56 Facelift No 612 and higher:
--F240586 Führung
--F22918 Federring
--F20205 Sechskantmutter
--F240593 Bolzen
--F20370b Sinterlager
--F25630 Kettenrad
--100491 Kette
--F20375 Blech
--F25987 Zylinderschraube
--F29040 Endschalter
--F20948 Kabelverschraubung

Switch Unit Complete IR56 No. 612 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F240586	Guide	259 x 160 x 35	1
2	F22918	Spring lock washer	DIN127 B 14	1
3	F20205	Hexagonal nut	DIN934 M 14	1
4	F240593	bolt	Ø 30 x 42	1
5	F20370b	Slide bushing	Ø 20 x Ø 26 x 13	1
6	F25630	Chain wheel	Z 14 1/2x5/16"" I-26 x 12 h"	1
7	100491	Chain	IR 28/56 / SR 2 T	1
8	F20375	Plate/sheet	36 x 12 x 4	2
9	F25987	Cylinder head screw	DIN84 M 5 x 30	4
10	F29040	Limit Switch	TI2-SU1Z HW 180GR RO13,5	2
11	F20948	Cable Gland	M 16 x 1,5	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Switch Unit Complete IR56 No. 612 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F240586	Guide	259 x 160 x 35	1
2	F22918	Spring lock washer	DIN127 B 14	1
3	F20205	Hexagonal nut	DIN934 M 14	1
4	F240593	bolt	Ø 30 x 42	1
5	F20370b	Slide bushing	Ø 20 x Ø 26 x 13	1
6	F25630	Chain wheel	Z 14 1/2x5/16"" I-26 x 12 h"	1
7	100491	Chain	IR 28/56 / SR 2 T	1
8	F20375	Plate/sheet	36 x 12 x 4	2
9	F25987	Cylinder head screw	DIN84 M 5 x 30	4
10	F29040	Limit Switch	TI2-SU1Z HW 180GR RO13,5	2
11	F20948	Cable Gland	M 16 x 1,5	2
