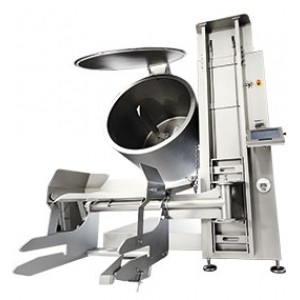

Ruhle Mixer Massager MPR 500

Ruhle High Tech Tumbler MPR 500

Two independent arms, a feed system, and a 500-liter container can process 375 kg of meat efficiently, fast, and with incredible consistency. In addition, cooling, vacuum treatment, and variable arm speeds, ensure optimum operating results. The secret to this success lies in its control technology, reflecting decades of experience. The container can be tilted in different positions. The large diameter container enables good rolling of the meat. The variable range of rotational speed form 1-25 rpm allows endless variations for each arm. The two arm system provides air packet free, uniform, and gentle processing of the meat.

Technical Specifications:

Efficient Scraper

The shape of the mixing arm is designed for handling and processing delicate products. A rotating scraper keeps the container surface perfectly clean. Nothing is left unprocessed; it all stays in the mixture.

Adjustable Vacuum System

The vacuum can be achieved rapidly and slowly depending on the product. User can select a precise setting within the control range between 0-95%. A supply pipe is installed directly into the containers cooling jacket, ensuring that only chilled air enters the drum. As a result, frequent aeration has no effect on the containers temperature.

Precise Temperature Control

The powerful cooling unit inserts the coolant directly into the perfectly insulated container. This enables fast temperature regulation and precise adaptation to all temperature requirements. Optionally the cooling unit can also be ran as a pump and supply heat up to 80° C.

Integrated Feed System

Automatic push button positioning of the container and container lid enables integrated feeding with a 200-liter standard trolley. Filling only takes a few seconds and emptying less than a minute. Varying the angle of the drum during the running of the program guarantees optimum results.

Networked tablet PC control

The original MPR 500 can be controlled by any tablet or smartphone. Recipes can be created intuitively, and everyday tasks can be easily facilitated by a smaller control interface. Your own date can be stored safely using cloud software which like the control app can be reloaded at any time.

Equipment:

• Touch-PC control
• 100% container insulation
• Motorized lid
• Container swiveling
• Direct cooling system
• Stainless steel air canal, cooled
• Feed system
• Counter-rotating mixing arm
• Quick arm fastening
• Scraper click assembly
• CE/GS test certificate

Accessories:

Double Scarper Arm	Mixing Arm	Fine Food Mixing Arm	Scraper Arm
