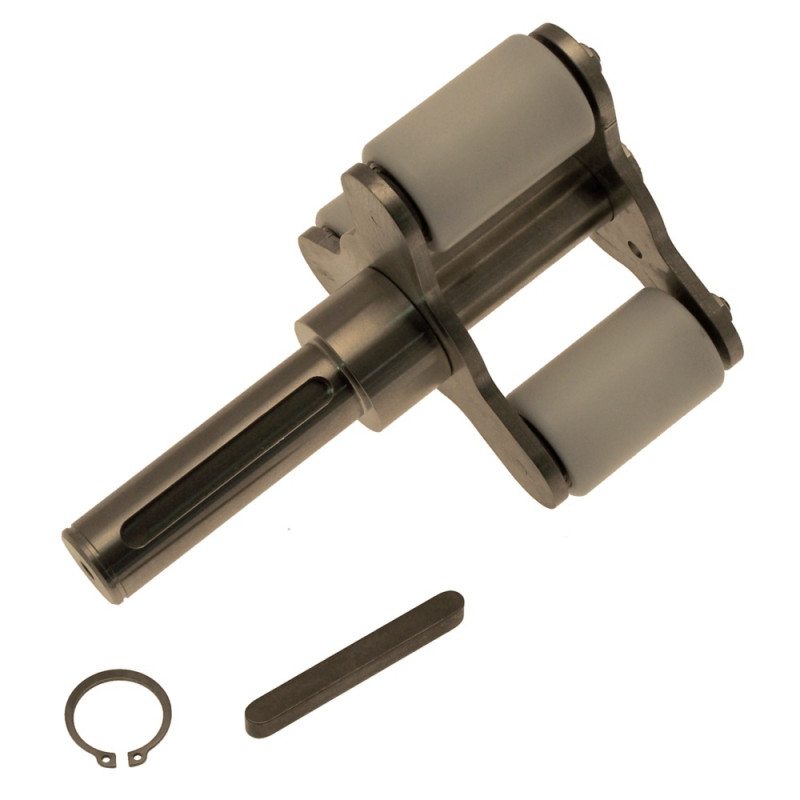

Roller Assembly Exploded View IR56 Injector No. 210 and Higher
Type: F42177
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2388
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2388
Roller Assembly Exploded View for Ruhle IR112 Meat Injector No. 210 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F240459 | Drive Shaft | Ø 38 x 179,5 | 1 |
 |
2 | F240460 | Housing | 116,6 x 105 x 5 | 1 |
 |
3 | F29205 | Axis | Ø 10 x 76 | 3 |
 |
4 | F21307 | Ring | Ø 10,2 x Ø 19 x 2 | 6 |
 |
5 | F440467 | Rolle | IR 28/56 / IR 112 | 3 |
|
6 | F240460a | Housing | 116,6 x 105 x 5 | 1 |
 |
7 | F20203 | Hexagonal nut | DIN934 M 6 | 3 |
 |
8 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 1 |
 |
9 | F20590 | Hexagonal bolt | DIN933 M10 x 16 | 1 |
 |
10 | F20561 | Spring key | A 8 x 7 x 70 | 1 |
 |
11 | F25429 | Locking ring | DIN471 Ø 25 x 1,2 | 1 |
 |
12 | F20443b | Disc | Ø 25 x Ø 35 x 0,2 | 1 |
|
13 | F20443c | Disc | Ø 25 x Ø 35 x 0,5 | 1 |
