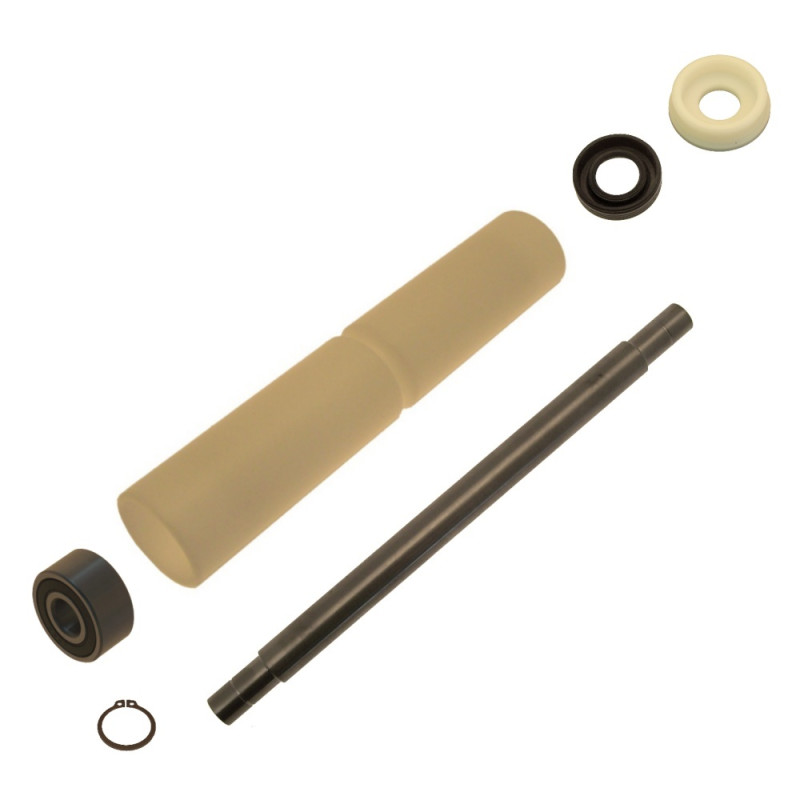

Rolle Exploded View for Ruhle SR2 Meat Dicer
Pos No. | Part No. | Description | Add Info | Required | |
1 | F21405 | Shaft | Ø 18 x 274 | 1 | |
2 | F21404 | Bushing | Ø 20 x Ø 42 x 268 | 1 | |
3 | F26877 | Tapered ball bearing | DIN628 - 3202 2RS | 2 | |
4 | F20536 | Locking ring | DIN471 Ø 15 x 1 | 2 | |
5 | F21406 | Take-up ring | Ø 38 x 11,7 | 2 | |
6 | F21424 | Radial shaft seal | Ø 15 x Ø 28 x 7 | 2 |
