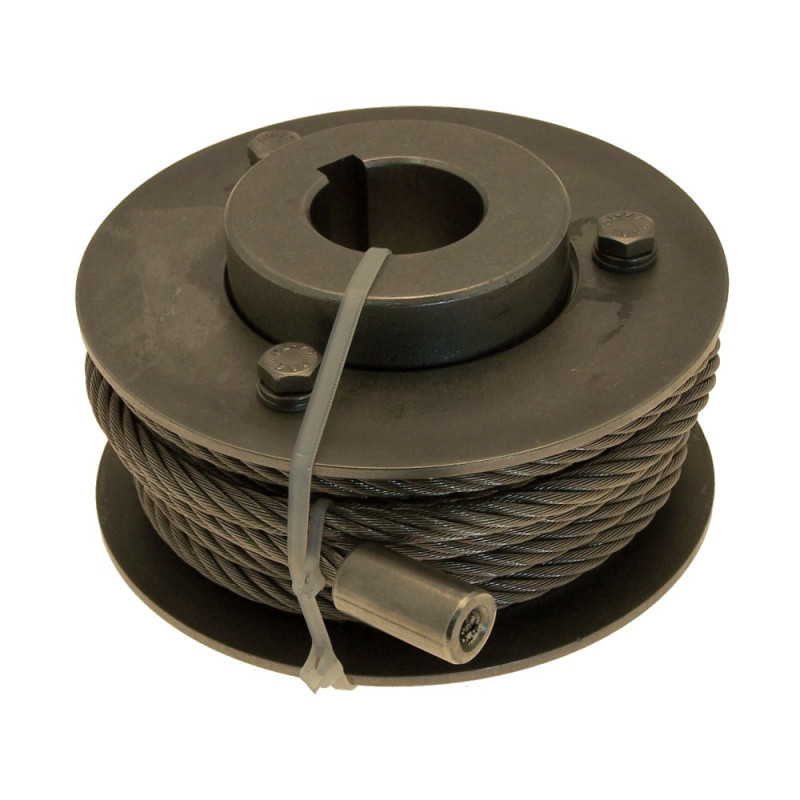

Rolle Exploded View 8 IR56 Meat Injector
Pos No. | Part No. | Description | Add Info | Required | |
1 | F29344 | Rolle | Ø 30 x Ø 93 x 58 | 1 | |
2 | F29345 | Rope | Ø 6 x Ø 19 x 2500 | 1 | |
3 | F241278 | Disc | Ø 47 x Ø 115 x 2,5 | 1 | |
4 | F241279 | Disc | Ø 62 x Ø 115 x 2,5 | 1 | |
5 | F20258 | Washer | DIN125 A 6,4 | 8 | |
6 | F24031 | Spring lock washer | DIN127 B 6 | 8 | |
7 | F21047 | Hexagonal bolt | DIN933 M 6 x 12 | 8 |
