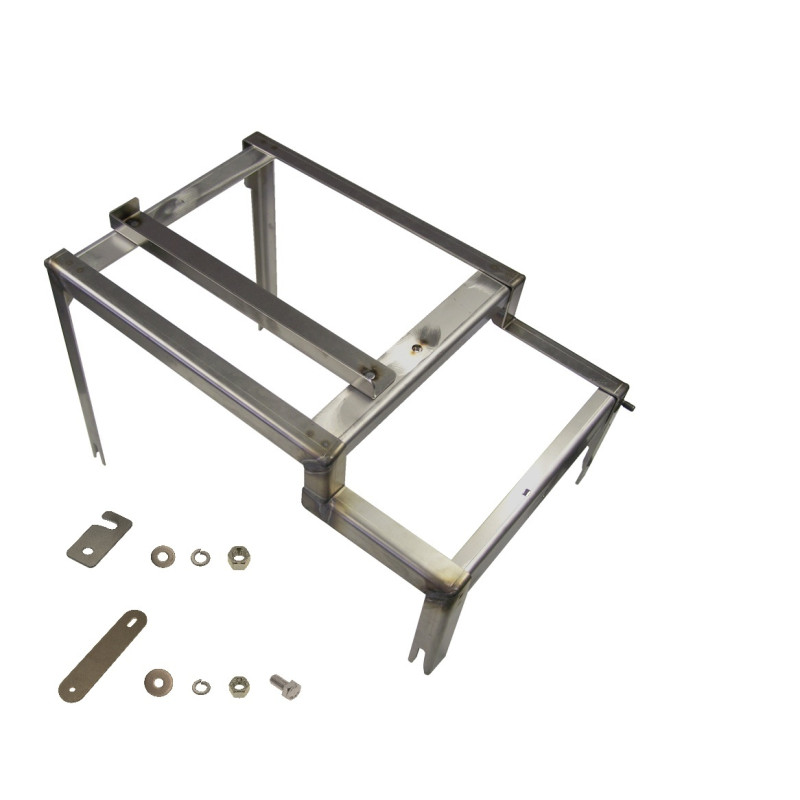

Rack Exploded View SR2 Dicer No. 435

Type: F456881
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 953

Note: Shipping to be Determined.

* rack 1 SR2-Turbo No. 435:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Rack Exploded View SR2 Dicer No. 435

Type: F456881
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 953

Note: Shipping to be Determined.

* rack 1 SR2-Turbo No. 435:
-- F456875 rack
--F256884 Catch
--F26600 Scheibe
--F21260 Federring
-- F20259 Sechskantmutter
--F258207 Cloth
--F26033 Sechskantschraube
--F21035 Disc
--F24031 Spring lock washer
--F20203 Hexagonal nut

Rack Exploded View for Ruhle SR2 Meat Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F456875	rack	SR 2 Turbo	1
2	F256884	Catch	61 x 27 x 2,5	1
3	F26600	Disc	Ø 8,5 x Ø 20 x 2	1
4	F21260	Spring lock washer	DIN127 B 8	1
5	F20259	Hexagonal nut	DIN934 M 8	1
6	F258207	Cloth	145 x 30 x 2.5	1
7	F26033	Hexagonal bolt	DIN933 M 6 x 20	1
8	F21035	Disc	Ø 6,5 x Ø 20 x 2	1
9	F24031	Spring lock washer	DIN127 B 6	1
10	F20203	Hexagonal nut	DIN934 M 6	1
