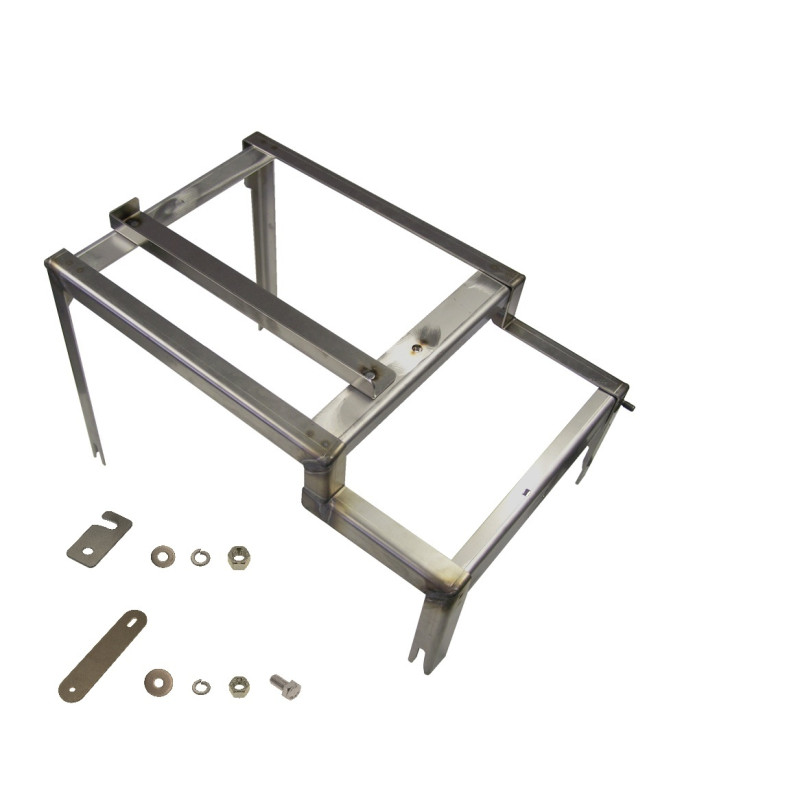

Rack Exploded View for Ruhle SR2 Meat Dicer No. 249 and Higher
Pos No. | Part No. | Description | Add Info | Required | |
1 | F456875 | rack | SR 2 Turbo | 1 | |
2 | F256884 | Catch | 61 x 27 x 2,5 | 1 | |
3 | F26600 | Disc | Ø 8,5 x Ø 20 x 2 | 1 | |
4 | F21260 | Spring lock washer | DIN127 B 8 | 1 | |
5 | F20259 | Hexagonal nut | DIN934 M 8 | 1 | |
6 | F258207 | Cloth | 145 x 30 x 2.5 | 1 | |
7 | F26033 | Hexagonal bolt | DIN933 M 6 x 20 | 1 | |
8 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 1 | |
9 | F24031 | Spring lock washer | DIN127 B 6 | 1 | |
10 | F20203 | Hexagonal nut | DIN934 M 6 | 1 |
