Rack Assembly Ruhle PR15 Injector

Type: 107004
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1972

* Rack Assembly PR 15:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Rack Assembly Ruhle PR15 Injector

Type: 107004
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1972

* Rack Assembly PR 15:
--F40003 rack
--F41802 Bracket
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F21853 plate / sheet
--F21869 bolt
--F20259 Hexagonal nut
--F21260 Spring lock washer
--F21262 Annular spring
--F21259 Rolle
--F22869 bolt
--F21841 Profile
--F20040 Lid
--F244964 Lid
--F28582 Countersunk bolt

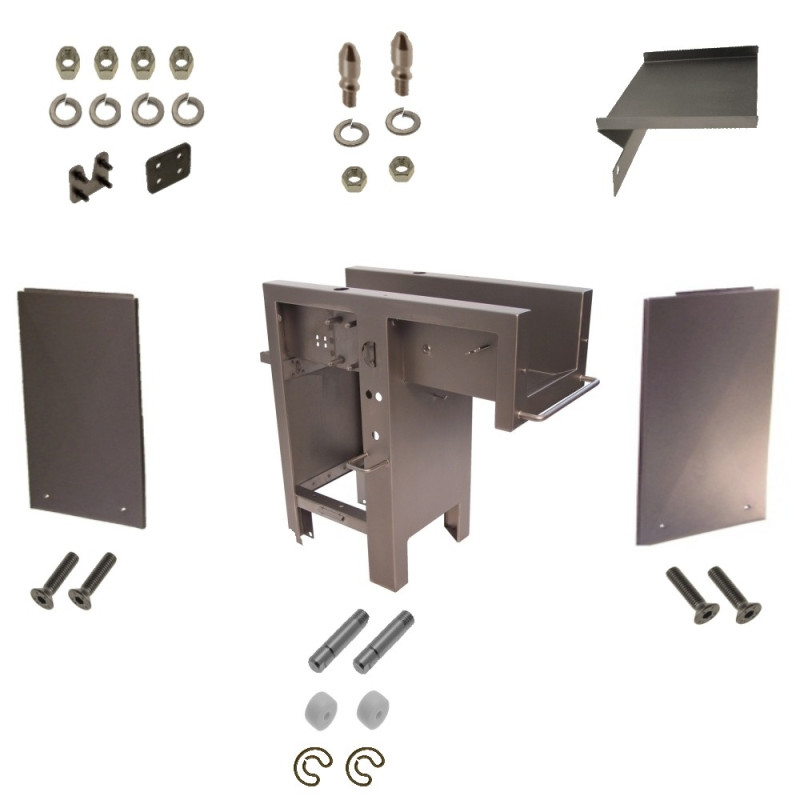

Rack Assembly Ruhle PR15 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F40003	rack	PR 8-15	1
2	F41802	Bracket	PR 8 - 20	2
3	F24031	Spring lock washer	DIN127 B 6	8
4	F20203	Hexagonal nut	DIN934 M 6	8
5	F21853	plate / sheet	62 x 47 x 4	2
6	F21869	bolt	Ø 12 x 33	2
7	F20259	Hexagonal nut	DIN934 M 8	2
8	F21260	Spring lock washer	DIN127 B 8	2
9	F21262	Annular spring	Ø 12 x Ø 30 x 2,2	2
10	F21259	Rolle	Ø 16,5 x Ø 65 x 35	2
11	F22869	bolt	Ø 16 x 70	2
12	F21841	Profile	410 x 288 x 285 x 2,5	1
13	F20040	Lid	722 x 346 x 22 x 1,5	1
14	F244964	Lid	720 x 360 x 20 x 1,5	1
15	F28582	Countersunk bolt	DIN7991 M 6 x 25	4
