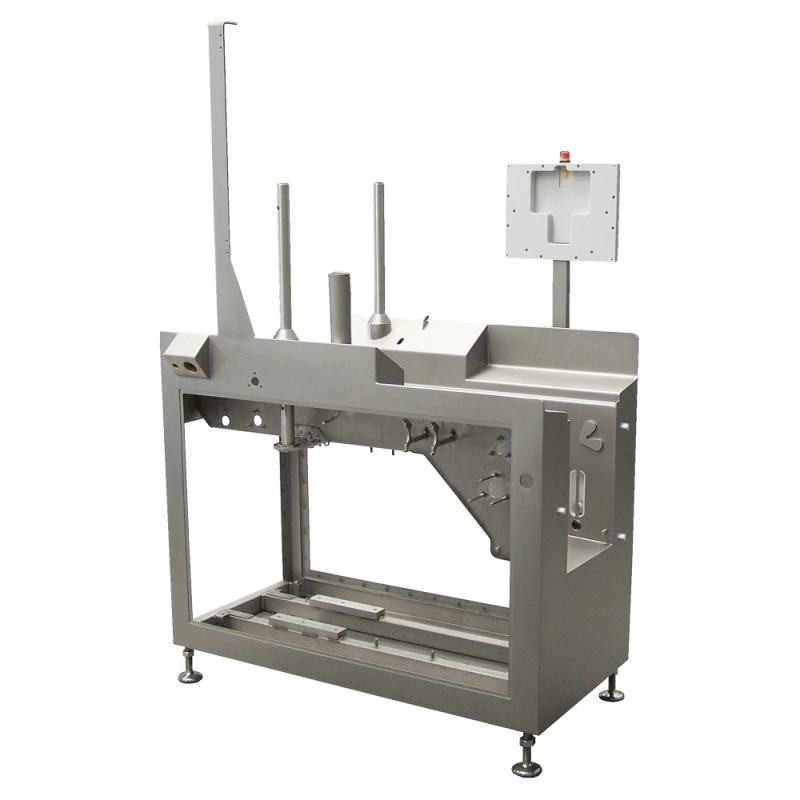

Rack Assembly IR56 105894

Type: 105894
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1500

* Rack Assembly IR 56 Facelift:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Rack Assembly IR56 105894

Type: 105894
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1500

* Rack Assembly IR 56 Facelift:
-- 105850 rack
--105888 Guide
--F29171 Machine base
-- F27518 Hexagonal nut
--105632 bolt
-- 105834 Rolle
-- 105842 plate / sheet
--F20258 Washer
-- F24031 Spring lock washer
--F20203 Hexagonal nut
-- F22907 Disc
--F20811 Cap nut
--F42331 Hinge
-- 106742 PC / back part
--105679 Shaft
--F27531 O-ring
--105681 bushing
--105680 bushing
-- F242131 bolt
-- F24901 Washer
-- F20210 Spring lock washer
--F20204 Hexagonal nut

Rack Assembly Ruhle IR56 Injector

Pos No.	Part No.	Description	Add Info	Required
1	105850	rack	IR 28/56	1
2	105888	Guide	IR 28/56	1
3	F29171	Machine base	Ø 80 x 150 x M 24	4
4	F27518	Hexagonal nut	DIN934 M 24	4
5	105632	bolt	Ø 16 x 78	1
6	105834	Rolle	IR 28/56	4
7	105842	plate / sheet	IR 28/56	2
8	F20258	Washer	DIN125 A 6,4	4
9	F24031	Spring lock washer	DIN127 B 6	4
10	F20203	Hexagonal nut	DIN934 M 6	4
11	F22907	Disc	Ø 10,5 x Ø 35 x 3	1
12	F20147	Hexagonal nut	DIN934 M 10	2
13	F42331	Hinge	IR 28/56	2
14	106742	PC / back part	IR 28/56	1
15	105679	Shaft	Ø 18 x 556	2
16	F27531	O-ring	Ø 10 x 2,5	2
17	105681	bushing	Ø 50 x 50	2
18	105680	bushing	Ø 50 x 35	2
19	F242131	bolt	Ø 20 x 90	1
20	F20202	Washer	DIN125 A 13	1
21	F20210	Spring lock washer	DIN127 B 12	1
22	F20204	Hexagonal nut	DIN934 M 12	1
