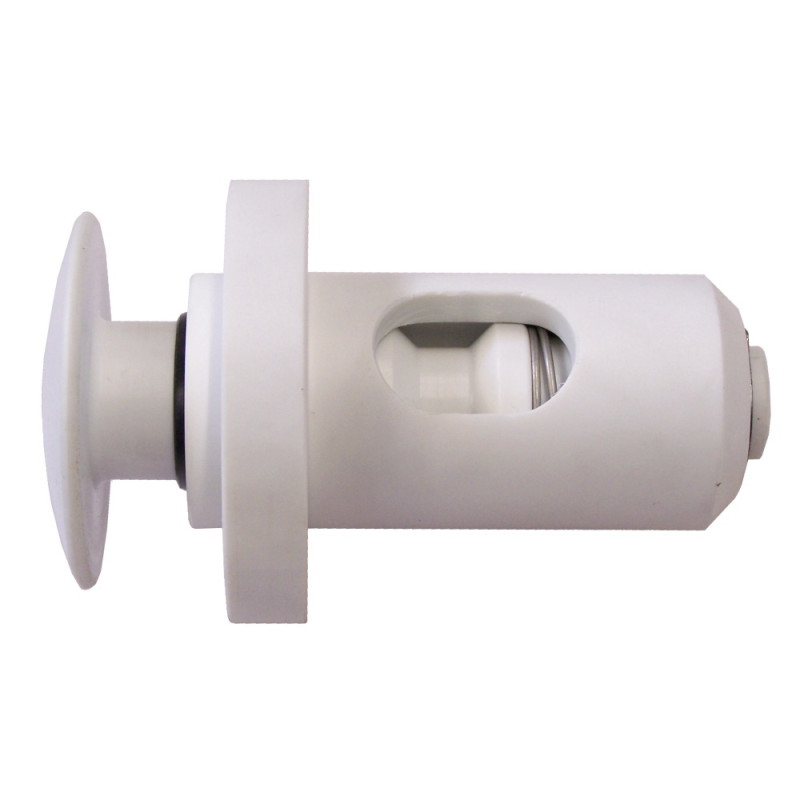

Push Button Complete IR56 Injector F443161

Type: F443161
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1603

* Push Button Complete IR 56 Facelift:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Push Button Complete IR56 Injector F443161

Type: F443161
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1603

* Push Button Complete IR 56 Facelift:
-- F241961 bushing
-- F24707 Pressure spring
--F29138 Scraper
-- F241960 Push button
-- F25452 Disc
-- F27852 Locking ring
-- F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut

Push Button Complete Ruhle IR56

Pos No.	Part No.	Description	Add Info	Required
1	F241961	bushing	Ø 18,2 x Ø 69 x 85	1
2	F24707	Pressure spring	d1.5 x De24 x 65	1
3	F29138	Scraper	25 x 33 x 4/7	1
4	F241960	Push button	Ø 59 x 112,3	1
5	F25452	Disc	Ø 18 x Ø 25 x 0,1	1
6	F27852	Locking ring	DIN471 Ø 18 x 1	1
7	F20258	Washer	DIN125 A 6,4	1
8	F24031	Spring lock washer	DIN127 B 6	1
9	F20203	Hexagonal nut	DIN934 M 6	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Push Button Complete Ruhle IR56

Pos No.	Part No.	Description	Add Info	Required
1	F241961	bushing	Ø 18,2 x Ø 69 x 85	1
2	F24707	Pressure spring	d1.5 x De24 x 65	1
3	F29138	Scraper	25 x 33 x 4/7	1
4	F241960	Push button	Ø 59 x 112,3	1
5	F25452	Disc	Ø 18 x Ø 25 x 0,1	1
6	F27852	Locking ring	DIN471 Ø 18 x 1	1
7	F20258	Washer	DIN125 A 6,4	1
8	F24031	Spring lock washer	DIN127 B 6	1
9	F20203	Hexagonal nut	DIN934 M 6	1
