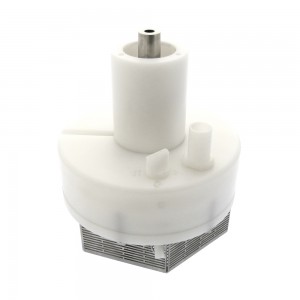

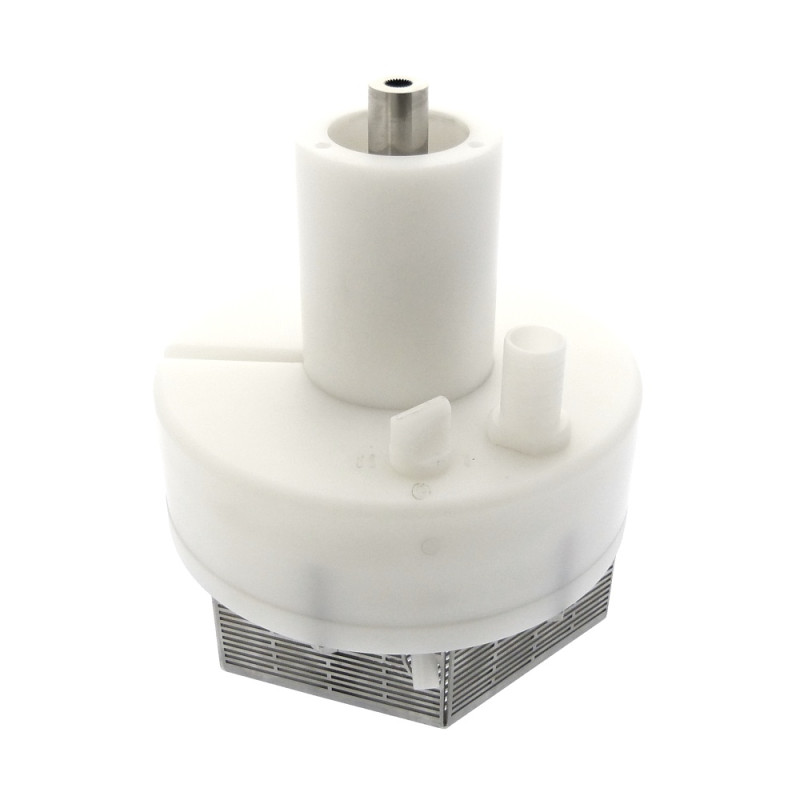

Pump Assembly Ruhle IR17 No. 235 and Higher
Type: 110790
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1355
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1355
Pump Assembly Ruhle IR17 No. 235 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 110787 | Gehäuse | Ø 180 x 50 | 1 |
 |
2 | 111296 | Pumpenpatrone | IR 17 | 1 |
 |
3 | 111154 | Scheibe | Ø 180 x 12 | 1 |
 |
4 | F10218 | Rundschnur | Ø 3 Silikon klar | 492mm |
 |
5 | 109433 | Gewindestutzen | Ø 28 x 46 | 1 |
 |
6 | 108970 | Mischerventil | Ø 20 x 72 | 1 |
 |
7 | F27928 | O-Ring | Ø 6 x 2 | 2 |
 |
8 | 108966 | Zylinderstift | Ø 6 x 20 | 1 |
 |
9 | 109295 | Rohr | Ø 6 x Ø 9 x 32 | 1 |
 |
10 | 109294 | Gewindestift | DIN417 M 3 x 5 | 1 |
 |
11 | 107046 | Bolzen | Ø 15 x 48 | 3 |
 |
12 | 109347 | Filterblech | 178 x 155 x 41,5 x 1,5 | 1 |
 |
13 | F21506 | Sechskantschraube | DIN933 M 6 x 35 | 6 |
 |
14 | F23688 | Senkschraube | DIN963 M 6 x 20 | 4 |
|
15 | F26993 | Sechskantschraube | DIN933 M 5 x 10 | 3 |
 |
16 | F20813 | Senkschraube | DIN963 M 5 x 20 | 3 |
