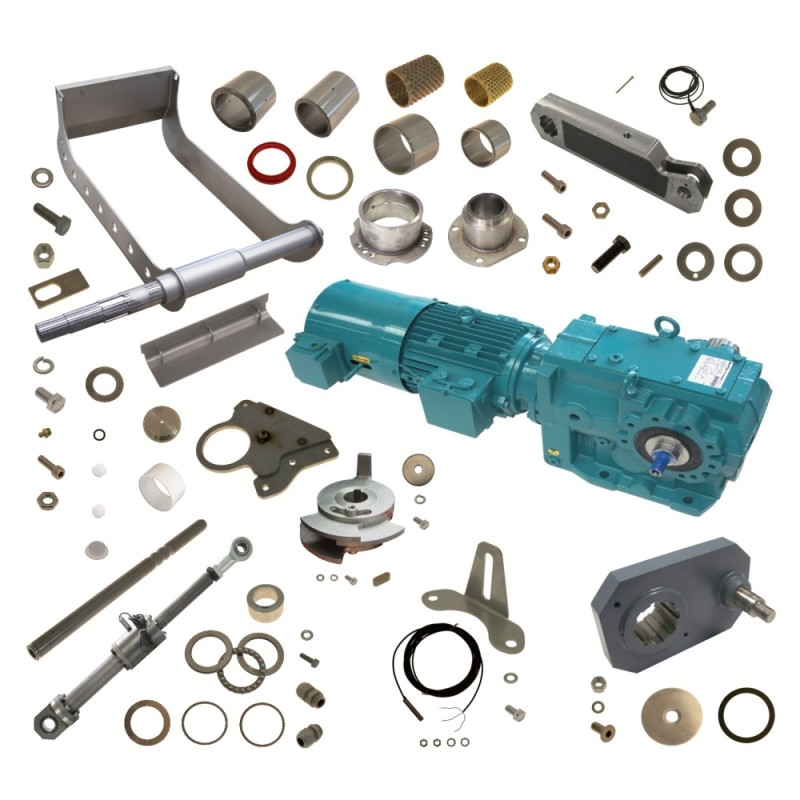

Pre-compacter Assembly Dicer SR3 No. 35 and Higher

Type: F41833
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1118

Note: Shipping to be Determined.

* Pre-compacter Assembly SR3 Lifting unit No. 35 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Pre-compacter Assembly Dicer SR3 No. 35 and Higher

Type: F41833
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1118

Note: Shipping to be Determined.

* Pre-compacter Assembly SR3 Lifting unit No. 35 and higher:
--F28409 Inner ring
--F28455 Ring
--F28456 Scraper
--F28457 Disc
--F28411 Ball bearing retainer
--F242163 Disc
--F242164 Disc
--F41836 Lever
-- F28412 Ring
--F28497 Axial grooved ball bearing
--F28427 Ring
--F28413 Inner ring
--F42321 Housing
--F20202 Washer
--F20230 Hexagonal bolt
--F28482 plate / sheet
--F20204 Hexagonal nut
--F28414 Ball bearing retainer
--F28415 Lid
--F21260 Spring lock washer
--F20687 Hexagonal bolt
--F41838 Overload safety device
--F41846 drive
-- F445401 Pre-compacter arm
--F257759 Plug
--F28417 bolt
--F41841 Adapter
--F28416 Shaft
--F28417 bolt
--F27903 O-ring
--F41842 Housing
--F28458 bushing
--F28483 Grease nipple
--F22164 Cylinder head screw
--F20202 Washer
--F20179 Hexagonal nut
--F41837 Housing
--F28460 bushing
--F28483 Grease nipple
--F20202 Washer
--F20230 Hexagonal bolt

Pre-compacter Assembly Dicer SR3 No. 35 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F28409	Inner ring	Ø 70 x Ø 80 x 54	2
2	F28455	Ring	Ø 100 x Ø 120 x 16	1
3	F28456	Scraper	85 x 110 x 16,5	1
4	F28457	Disc	Ø 87 x Ø 119,6 x 3	1
5	F28411	Ball bearing retainer	Ø 80 x Ø 92 x 95	1
6	F242163	Disc	Ø 70,5 x Ø 79 x 5	1
7	F242164	Disc	Ø 70,5 x Ø 79 x 8	1
8	F41836	Lever	SR 3	1
9	F28412	Ring	Ø 60 x Ø 90 x 45	1
10	F28497	Axial grooved ball bearing	DIN711 51113	1
11	F28427	Ring	Ø 90 x Ø 103 x 52	1
12	F28413	Inner ring	Ø 55 x Ø 63 x 45	2
13	F42321	Housing	SR 3	1
14	F20202	Washer	DIN125 A 13	4
15	F20230	Hexagonal bolt	DIN933 M12 x 40	4
16	F28482	plate / sheet	53 x 22 x 3	1
17	F20204	Hexagonal nut	DIN934 M 12	1
18	F28414	Ball bearing retainer	Ø 63 x 73 x 88	1
19	F28415	Lid	Ø 9 x Ø 70 x 18	1
20	F21260	Spring lock washer	DIN127 B 8	1
21	F20687	Hexagonal bolt	DIN933 M 8 x 35	1
22	F41838	Overload safety device	SR 3	1
23	F41846	drive	SR 3	1
24	F445401	Pre-compacter arm	SR 3	1
25	F257759	Plug	Ø 35 x 11,7	1
26	F28417	bolt	Ø 3 x Ø 18 x 10	4
27	F41841	Adapter	SR 3	1
28	F28416	Shaft	Ø 30 x 526	1
29	F28417	bolt	Ø 3 x Ø 18 x 10	2
30	F27903	O-ring	Ø 20 x 4	1
31	F41842	Housing	SR 3	1
32	F28458	bushing	Ø 92 x Ø 120 x 100	1
33	F28483	Grease nipple	M 10 x 1	1
34	F22164	Cylinder head screw	DIN912 M12 x 20	6
35	F20202	Washer	DIN125 A 13	3
36	F20179	Hexagonal nut	DIN439 M 12	3
37	F41837	Housing	SR 3	1
38	F28460	bushing	Ø 73 x Ø 90 x 110	1
39	F28483	Grease nipple	M 10 x 1	1
40	F20202	Washer	DIN125 A 13	4
41	F20230	Hexagonal bolt	DIN933 M12 x 40	4
