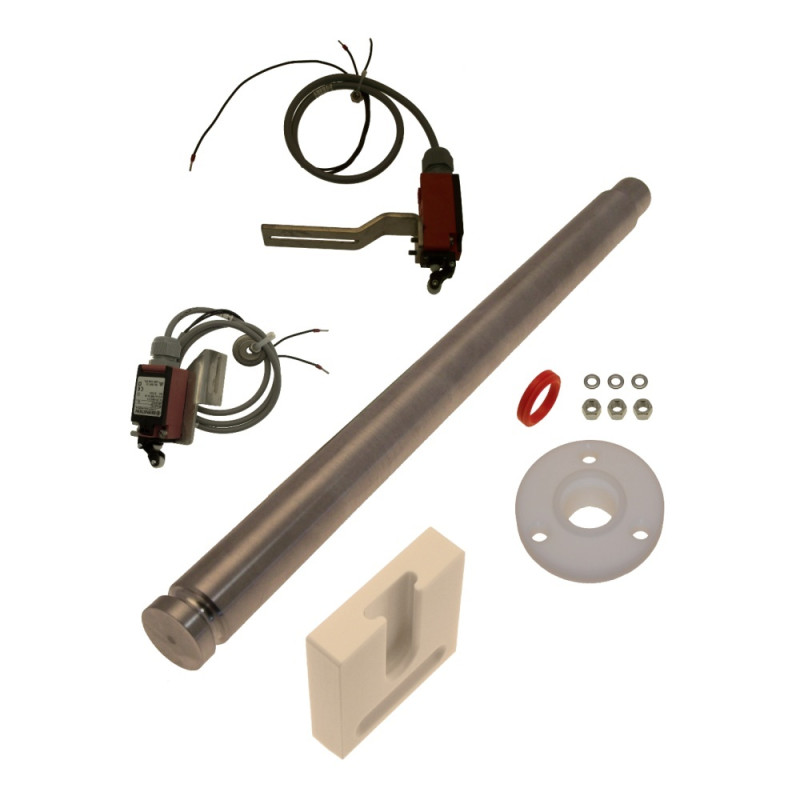

Plunger Shaft Assembly

Type: F41191
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1261

Note: Shipping to be Determined.

* Plunger Shaft Assembly SR1-Turbo:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Plunger Shaft Assembly

Type: F41191
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1261

Note: Shipping to be Determined.

* Plunger Shaft Assembly SR1-Turbo:
--F27837 Plunger SR 1
-- F20501 Shaft

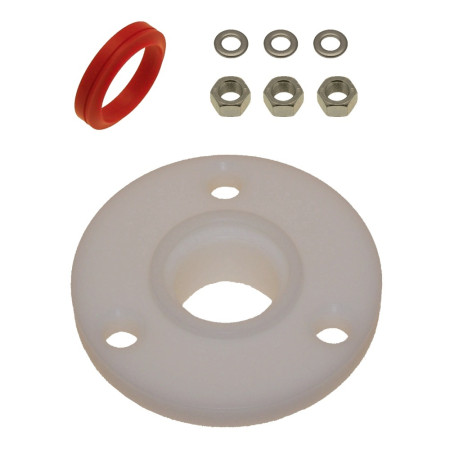

-- F41662 Flange
--F23646 Disc
--F20210 Spring lock washer
--F20323 Hexagonal bolt
--F23523 Cable
--F20737 Limit switch
--F23523 Cable
--F20740 Limit switch
--F29058 Cable gland

Plunger Shaft Assembly for Ruhle SR1 Turbo Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F27837	Plunger SR 1	99 x 99 x 25	1
2	F20501	Shaft	Ø 30 x 432	1
3	F41662	Flange	SR 1 / SR 1 Turbo	1
4	F23646	Disc	Ø 12,5 x Ø 35 x 4	1
5	F20210	Spring lock washer	DIN127 B 12	1
6	F20323	Hexagonal bolt	DIN933 M12 x 25	1
7	F23523	Cable	ÖZ-O 2 x 1.0 mm²	0,9
8	F20737	Limit switch	I88-SU1Z Hw	1
9	F23523	Cable	ÖZ-O 2 x 1.0 mm²	1,15
10	F20740	Limit switch	I88-SU1Z Hw	1
11	F29058	Cable gland	M 20 x 1.5	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Plunger Shaft Assembly for Ruhle SR1 Turbo Dicer

Pos No.	Part No.	Description	Add Info	Required
1	F27837	Plunger SR 1	99 x 99 x 25	1
2	F20501	Shaft	Ø 30 x 432	1
3	F41662	Flange	SR 1 / SR 1 Turbo	1
4	F23646	Disc	Ø 12,5 x Ø 35 x 4	1
5	F20210	Spring lock washer	DIN127 B 12	1
6	F20323	Hexagonal bolt	DIN933 M12 x 25	1
7	F23523	Cable	ÖZ-O 2 x 1.0 mm²	0,9
8	F20737	Limit switch	I88-SU1Z Hw	1
9	F23523	Cable	ÖZ-O 2 x 1.0 mm²	1,15
10	F20740	Limit switch	I88-SU1Z Hw	1
11	F29058	Cable gland	M 20 x 1.5	2
