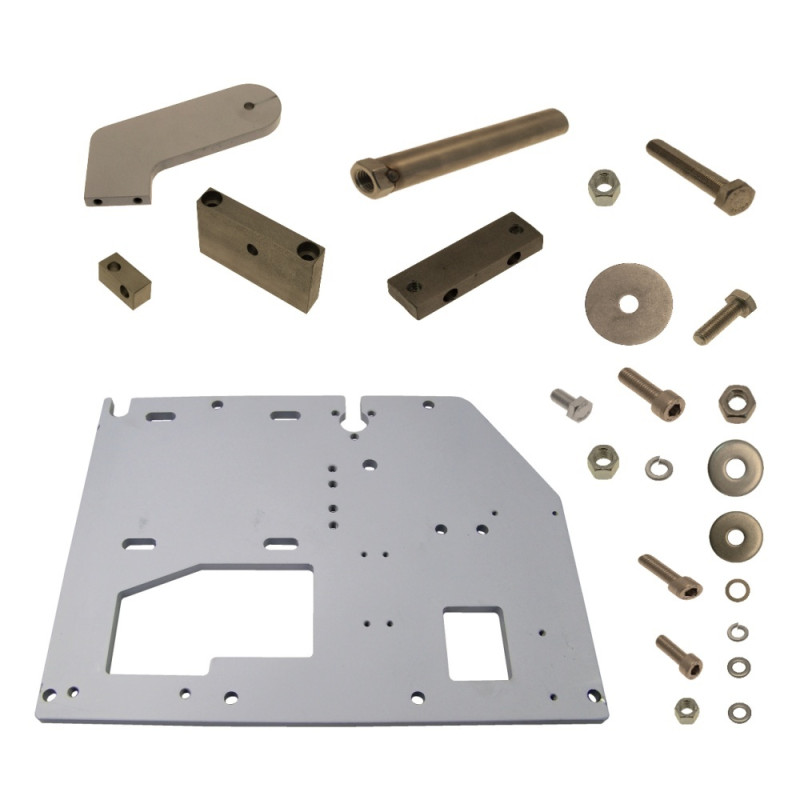

Plate Drive Complete SR2 Dicer No. 435

Type: 103750-1et
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 901

Note: Shipping to be Determined.

* Plate Drive Complete SR2-Turbo No. 435:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Plate Drive Complete SR2 Dicer No. 435

Type: 103750-1et
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 901

Note: Shipping to be Determined.

* Plate Drive Complete SR2-Turbo No. 435:
--F26906 Plate
--F20202 U-Scheibe
-- F20204 Sechskantmutter
-- F20204 Sechskantmutter
-- F26907 Housing
--F27693 U-Scheibe
--F25962 Cylinder head screw
--F26379 Spring lock washer
--F26908 Bracket
--F28109b Compensating disc
--F28773 Zylinderschraube
--F22907 Scheibe
--F23646 Disc
--F20210 Federring
--F26910 Plate
--F21087 Cylinder head screw
--F20047 Hexagonal nut
--F20693 Hexagonal bolt
--F27226 Disc
--F26909 Bracket
--F20402 Sechskantschraube
--F42237 Stütze
--F22276 Hexagonal bolt
--F20563 Hexagonal nut
--F20147 Sechskantmutter
--F28948 Cylinder head screw

Plate Drive Complete for SR2 Dicer No. 435

Pos No.	Part No.	Description	Add Info	Required
1	F26906	Plate	480 x 370 x 12	1
2	F20202	Washer	DIN125 A 13	4
3	F20204	Hexagonal nut	DIN934 M 12	4
4	F26907	Housing	45 x 20 x 20	2
5	F27693	Washer	DIN125 A 10,5	19
6	F25962	Cylinder head screw	DIN912 M10 x 30	2
7	F26379	Spring lock washer	DIN127 B 10	21
8	F26908	Bracket	116 x 60 x 20	1
9	F28109b	Compensating disc	Ø 12 x Ø 18 x 0,5	4
10	F28773	Cylinder head screw	DIN912 M10 x 70	2
11	F22907	Washer	Ø 10,5 x Ø 35 x 3	2
12	F23646	Disc	Ø 12,5 x Ø 35 x 4	2
13	F20210	Spring lock washer	DIN127 A 12	2
15	F26910	Plate	100 x 30 x 15	1
16	F21807	Cylinder head screw	DIN912 M10 x 60	2
17	F20047	Hexagonal nut	DIN439 M 10	2
18	F20693	Hexagonal bolt	DIN933 M10 x 35	2
19	F27226	Disc	Ø 11 x Ø 50 x 5	1
20	F26909	Bracket	206 x 150 x 15	1
21	F20402	Hexagonal bolt	DIN933 M10 x 30	2
22	F42237	Support	SR 2 Turbo	1
23	F22276	Hexagonal bolt	DIN933 M20 x130	1
24	F20563	Hexagonal nut	DIN934 M 20	3

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Plate Drive Complete for SR2 Dicer No. 435

Pos No.	Part No.	Description	Add Info	Required
1	F26906	Plate	480 x 370 x 12	1
2	F20202	Washer	DIN125 A 13	4
3	F20204	Hexagonal nut	DIN934 M 12	4
4	F26907	Housing	45 x 20 x 20	2
5	F27693	Washer	DIN125 A 10,5	19
6	F25962	Cylinder head screw	DIN912 M10 x 30	2
7	F26379	Spring lock washer	DIN127 B 10	21
8	F26908	Bracket	116 x 60 x 20	1
9	F28109b	Compensating disc	Ø 12 x Ø 18 x 0,5	4
10	F28773	Cylinder head screw	DIN912 M10 x 70	2
11	F22907	Washer	Ø 10,5 x Ø 35 x 3	2
12	F23646	Disc	Ø 12,5 x Ø 35 x 4	2
13	F20210	Spring lock washer	DIN127 A 12	2
15	F26910	Plate	100 x 30 x 15	1
16	F21807	Cylinder head screw	DIN912 M10 x 60	2
17	F20047	Hexagonal nut	DIN439 M 10	2
18	F20693	Hexagonal bolt	DIN933 M10 x 35	2
19	F27226	Disc	Ø 11 x Ø 50 x 5	1
20	F26909	Bracket	206 x 150 x 15	1
21	F20402	Hexagonal bolt	DIN933 M10 x 30	2
22	F42237	Support	SR 2 Turbo	1
23	F22276	Hexagonal bolt	DIN933 M20 x130	1
24	F20563	Hexagonal nut	DIN934 M 20	3
