Patty-O-Matic 330A Knock Out Cup Exploded View

Type: Various Parts
Ships from: Brampton, ON
U/M: Each
Stock: On Order
CM: 4314
Note: Shipping to be Determined.

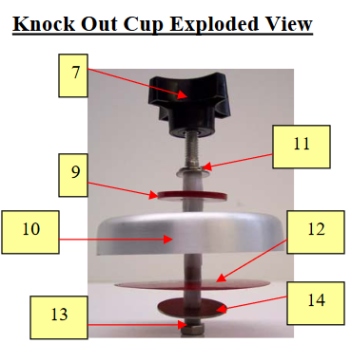

* Knock Out Cup Exploded View:








Patty-O-Matic 330A Knock Out Cup Exploded View



Knock out cup exploded view  Item #  Description  Part #
  7 Knock Out Knob 571-7
  9 Knock Out Cup Plastic Washer 571-6
  10 Round Knock Out Cup 571-1
  11 Knock Out Cup Flat Washer and Lock Washer 571-8
  12 Knock Out Air Valve (shown in red for visual affect) 571-4
  13 Knock Out Cup Bolt 571-9
  14 Knock Out Cup Fender Washer 571-10
