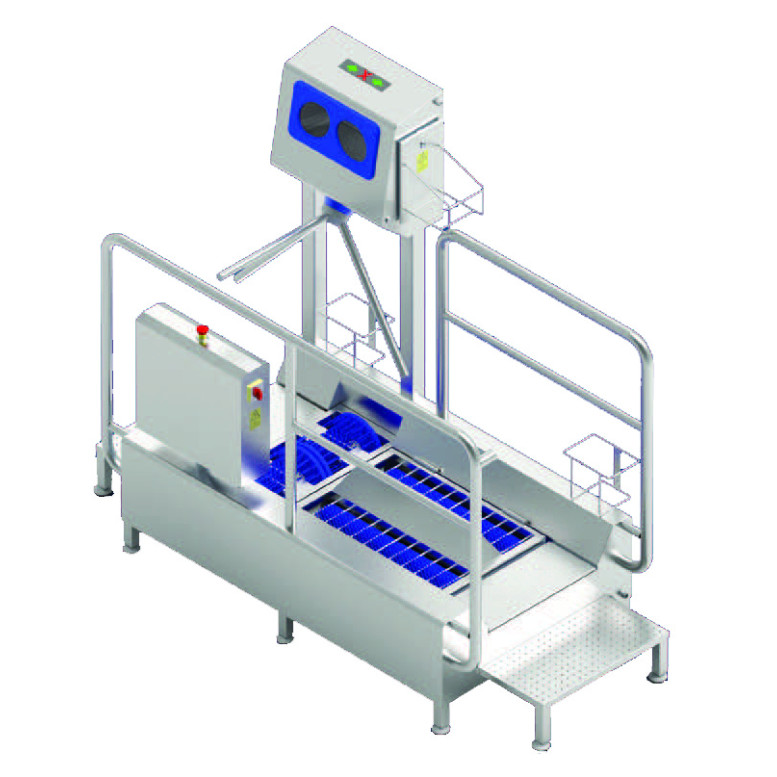

Passage Shoe Washer and Hand Disinfectant unit with Access Control
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 117 X 38 X 50
Shipping Weight: 641 lbs
CM: 8057
U/M: Each
Stock: On Order
Shipping Dimension: 117 X 38 X 50
Shipping Weight: 641 lbs
CM: 8057
Financing Available
Note: Shipping to be determined
Passage Shoe Washer and Hand Disinfectant unit with Access Control
Details related to Washer Length and Brushes
- Washer made of stainless-steel materials 1.4301.
- Water supply: 1/2”.
- Water drainage: PVC ø 50 mm.
- Power supply: 220V 60Hz 3Ph
- Control: 24V, IP67.
- Drive: 5 x 0,25 kW or 3 x 0,25 kW, IP55.
- Washer width: 34 inches
- Sensors operated.
- Automatic washing liquids supply.
Details related to Hand Disinfection
- It can link the passage function with the need to perform hygienic activities.
- Making proper hand hygienic activities (disinfection) confirmed by light control (red-green), turns rotary gate about 1/3 of tripod rotation and allows for passage of one person.
- Basket for 5-liter container of liquid.
- Programming the times of individual cycles and the amount of provide liquids.
- Anti-vandalism sound alarm.
- Controlling voltage: 24 V – PLC Siemens Logo! IP 65.
- Water supply: 1/2”.
- Water drainage: PVC ø 16 mm.
- Emergency passage in case of lack of power supply.
| Model | Vertical Brushes | Horizontal Brushes Length (inches) | Washer Length (inches) | Weight (lbs) |
| 10 - Standard | Disc Brushes | 24 | 84 | 307 |
| 11 - Optional | Disc Brushes | 36 | 98 | 355 |
| 12 - Optional | Dics Brushes | 48 | 113 | 413 |
