PSS Two-level Vacuum Mixers

Type: Mixing Capacity: 1102 lbs- 5953 lbs
Country of Origin: Slovakia
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8458

Note: Shipping to be determined

* Two-Level Mixer Options:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

PSS Two-level Vacuum Mixers

Type: Mixing Capacity: 1102 lbs- 5953 lbs
Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM Product Code: 8458

Note: Shipping to be determined

* Two-Level Mixer Options:
--SMV 500
--SMV 700
--SMV 900
--SMV 1200
--SMV 1700
--SMV 2200
--SMV 2700

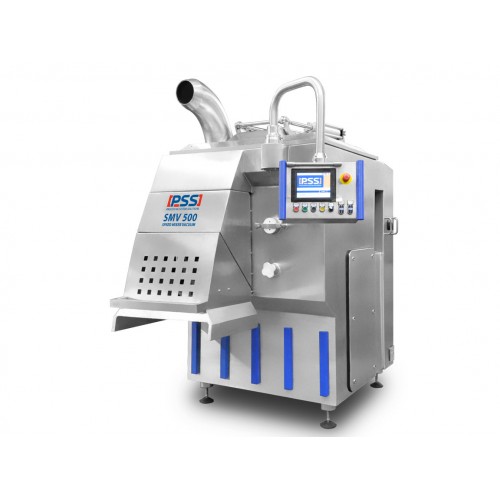

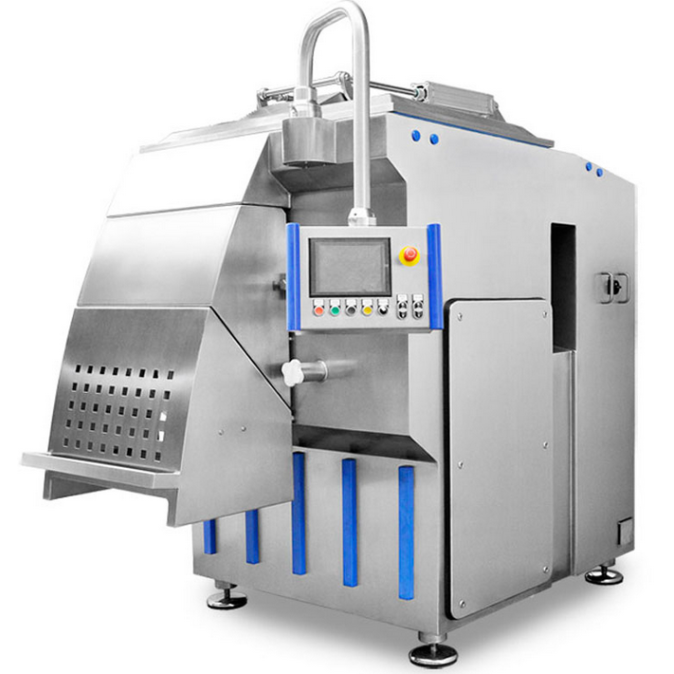

PSS Two-level Vacuum Mixers

PSS vacuum mixers are designed for food industry operations for the fast and quality mixing of any product type. PSS vacuum mixers ensure soft and gentle mixing of products of any structure, where the avoidance of air intake is a condition for the product process by application of a vacuum system.

Parameter	SMV 500	SMV 700	SMV 900	SMV 1200	SMV 1700	SMV 2200	SMV 2700
Total hopper volume	650 L	900 L	1,200 L	1,500 L	2,100 L	3,200 L	3,900 L
Net mixing volume	500 L	700 L	900 L	1,200 L	1,700 L	2,200 L	2,700 L
Control via frequency inverters	yes	yes	yes	yes	yes	yes	yes
Total input	7 kW	11,45 kW	14,95 kW	21,7 kW	28,7 kW	31,2 kW	37,5 kW
Vacuum	80/95 m³/h	80/95 m³/h	80/95 m³/h	150/180 m³/h	150/180 m³/h	150/180 m³/h	180/350 m³/h
Weigh of the machine	1 500 kg	1 800 kg	1 850 kg	2 500 kg	2 580 kg	3 140 kg	3 540 kg
Dimensions (LxWxH)	2158 mm x 1185 mm x 2226 mm	2500 mm x 1350 mm x 2300 mm	2775 mm x 1350 mm x 2300 mm	2700 mm x 1500 mm x 2430 mm	3220 mm x 1500 mm x 2430 mm	3320 mm x 1800 mm x 2740 mm	3620 mm x 1800 mm x 2740 mm
Voltage network	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S
Standardized AC voltage	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%
Control voltage	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

PSS Two-level Vacuum Mixers

Parameter	SMV 500	SMV 700	SMV 900	SMV 1200	SMV 1700	SMV 2200	SMV 2700
Total hopper volume	650 L	900 L	1,200 L	1,500 L	2,100 L	3,200 L	3,900 L
Net mixing volume	500 L	700 L	900 L	1,200 L	1,700 L	2,200 L	2,700 L
Control via frequency inverters	yes	yes	yes	yes	yes	yes	yes
Total input	7 kW	11,45 kW	14,95 kW	21,7 kW	28,7 kW	31,2 kW	37,5 kW
Vacuum	80/95 m³/h	80/95 m³/h	80/95 m³/h	150/180 m³/h	150/180 m³/h	150/180 m³/h	180/350 m³/h
Weigh of the machine	1 500 kg	1 800 kg	1 850 kg	2 500 kg	2 580 kg	3 140 kg	3 540 kg
Dimensions (LxWxH)	2158 mm x 1185 mm x 2226 mm	2500 mm x 1350 mm x 2300 mm	2775 mm x 1350 mm x 2300 mm	2700 mm x 1500 mm x 2430 mm	3220 mm x 1500 mm x 2430 mm	3320 mm x 1800 mm x 2740 mm	3620 mm x 1800 mm x 2740 mm
Voltage network	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S
Standardized AC voltage	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%
Control voltage	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC
