PSS Speed one-level mixer for gentle mixing.

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

PSS Speed One-Level Mixer

Type: Mixing Capacity: 882 lbs- 4762 lbs
Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 93 X 71 X 91
Shipping Weight: 5,512 lbs
CM Product Code: 8459

Financing Available

Note: Shipping to be determined

* PSS Speed One-Level Mixer Options::
SOM 500
SOM 700
SOM 900
SOM 1200
SOM 1700
SOM 2200
SOM 2700

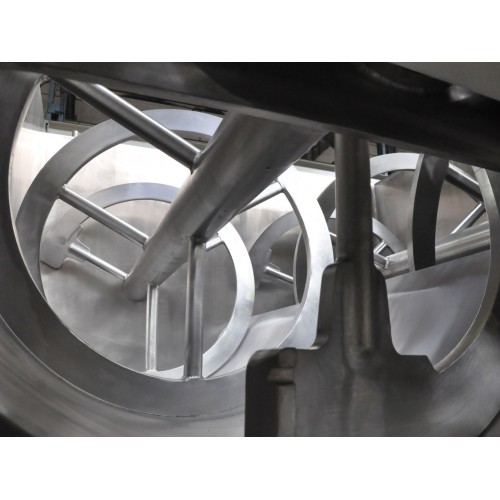

PSS Speed One-Level Mixer

PSS speed one-level mixers are designed for food industry operations for the fast, quality and gentle mixing of any kind of product. Special design enable this mixer to mix the product faster.

Parameter	SOM 500	SOM 700	SOM 900	SOM 1200	SOM 1700	SOM 2200	SOM 2700
Total hopper volume	500 L	700 L	900 L	1,200 L	1700 L	2200 L	2700 L
Speed of mixing paddles	20/39 rpm	15/30 rpm	17/34 rpm	40/20 rpm	41/20 rpm	42/21 rpm	42/21 rpm
Electric motor of mixing paddles	3,6 kW	4,4 kW	5,9 kW	11 kW	11,5 kW	17 kW	17 kW
Total input	6,3 kW	9,4 kW	12,4 kW	22,6 kW	23,6 kW	34,6 kW	34,6 kW
Weigh of the machine	1 450 kg	1 550 kg	1 850 kg	2 100 kg	2 350 kg	2 650 kg	2 850 kg
Dimensions (LxWxH)	2160 mm x 1300 mm x 1740 mm	2400 mm x 1420 mm x 2100 mm	2550 mm x 1450 mm x 2310 mm	2650 mm x 1650 mm x 1950 mm	3000 mm x 1850 mm x 2150 mm	3150 mm x 1950 mm x 2500 mm	3500 mm x 1880 mm x 2650 mm
Voltage network	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S
Standardized AC voltage	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%
Control voltage	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

PSS Speed One-Level Mixer

PSS speed one-level mixers are designed for food industry operations for the fast, quality and gentle mixing of any kind of product. Special design enable this mixer to mix the product faster.

Parameter	SOM 500	SOM 700	SOM 900	SOM 1200	SOM 1700	SOM 2200	SOM 2700
Total hopper volume	500 L	700 L	900 L	1,200 L	1700 L	2200 L	2700 L
Speed of mixing paddles	20/39 rpm	15/30 rpm	17/34 rpm	40/20 rpm	41/20 rpm	42/21 rpm	42/21 rpm
Electric motor of mixing paddles	3,6 kW	4,4 kW	5,9 kW	11 kW	11,5 kW	17 kW	17 kW
Total input	6,3 kW	9,4 kW	12,4 kW	22,6 kW	23,6 kW	34,6 kW	34,6 kW
Weigh of the machine	1 450 kg	1 550 kg	1 850 kg	2 100 kg	2 350 kg	2 650 kg	2 850 kg
Dimensions (LxWxH)	2160 mm x 1300 mm x 1740 mm	2400 mm x 1420 mm x 2100 mm	2550 mm x 1450 mm x 2310 mm	2650 mm x 1650 mm x 1950 mm	3000 mm x 1850 mm x 2150 mm	3150 mm x 1950 mm x 2500 mm	3500 mm x 1880 mm x 2650 mm
Voltage network	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S	3/PE/N 50Hz 230/400V TN-C-S
Standardized AC voltage	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%	230/400 V ± 10%
Control voltage	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC	230/24 V AC
