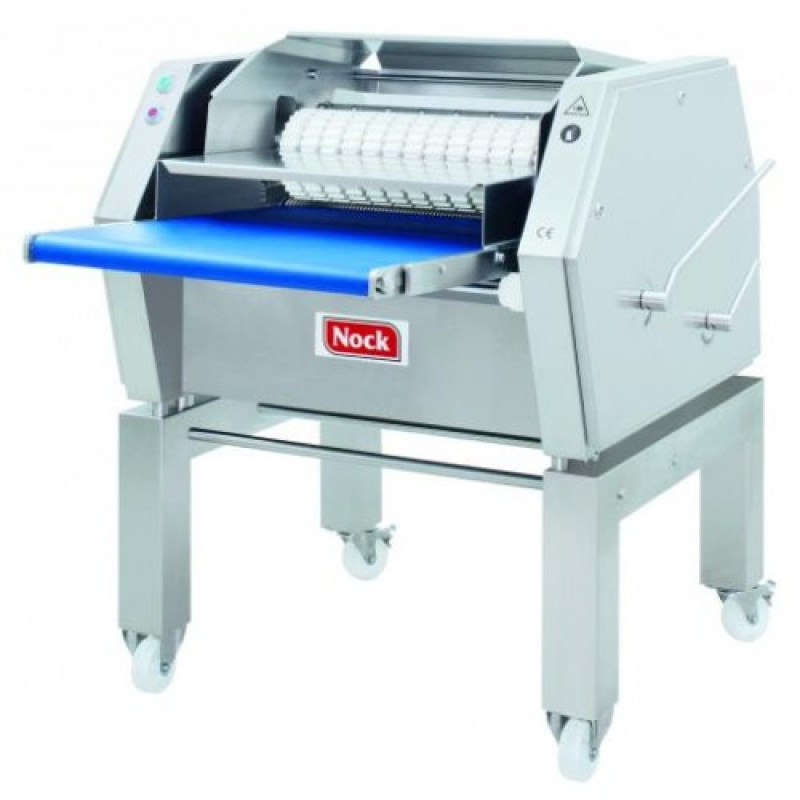

Nock Cutting Machine Cortex CB 703 Kebab

Nock Cortex CB 703 Kebab Cutting Machine

Cutting machine for gyros and doners production with spring suspended pressure unit, is infinitely variable in height. This machine has a 700 mm cutting width, allowing to cut high quality slices of meat for Doner meat skewers.

Features:

• Blade-holder, transport roller and spring suspended pressure roller are especially designed to cut meat. Therefore, better cut and more careful processing of the meat than with a derinder
• Large adjustment range of the blade gap, can also be adjusted during operation
• Trolleys can be placed underneath the machine in order to collect the cut slices (no output conveyor necessary)

Application:

• Perfectly appropriate for cutting slices of veal breast and bulls meat

Standards:

•     Blade gap infinitely adjustable 0.5 - 8 mm
•     Blade holder spring suspended
•     Pressure roller spring suspended and continuously adjustable in height
•     Tooth roller with scraper comb
•     Infeed conveyor
•     Underframe, open to 4 sides
•     NOCK POWER PLATES for special robustness and service friendliness
•     Conveyors can be taken out of the machine without any tools within seconds
•     Lockable castors
•     Stainless steel
•     Stainless steel bearings

Technical Specifications:

• Cutting width: 700mm
• Cutting speed: 28m/min
• Cutting direction: horizontally
• max. throughput height: 90mm
• Blade gap: 0.5-8mm infinitely adjustable (other thickness available)
• Apply length on infeed conveyor: 400mm (with integrated product return system)
• Infeed conveyor (external dimension of the conveyor frame): 850x690mm
• Discharge conveyor for meat slices (external dimension of the conveyor frame): 850x690mm
• Overall dimension: 1065x1190x1360mm (WxHxD)
• Weight (without output conveyor): 300kg
• Motor performance: 1.1kW
• Voltage: 400V 50Hz 3Ph

Options:

• INTEGRATED NOCK PRODUCT RETURN SYSTEM (highly recommended!)
• Discharge conveyor belt for remaining uncut meat (not together with INTEGRATED NOCK PRODUCT RETURN SYSTEM)
• Multi cut lines
