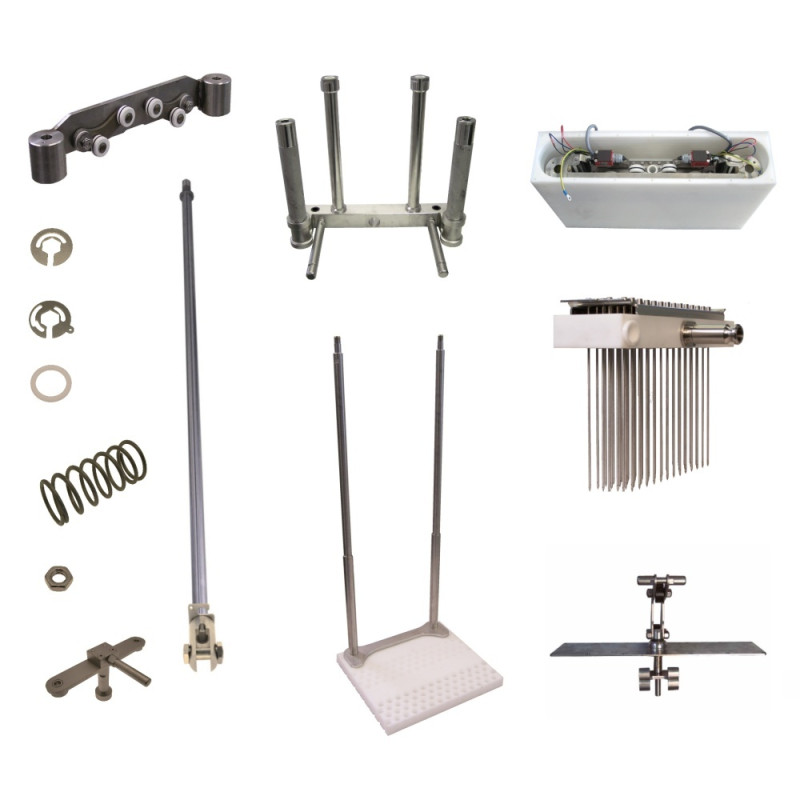

Needle Beam Complete IR56 Injector 105889

Type: 105889
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1516

* Needle Beam Complete IR 56 Facelift:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Needle Beam Complete IR56 Injector 105889

Type: 105889
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1516

* Needle Beam Complete IR 56 Facelift:
-- 105767 Housing
-- 105885 Block
-- 105768 Suppressor
-- 101112 Drive shaft
--104697 Distributor unit
-- F42161 Pulse generator
-- F251413 plate / sheet
-- F29302 Ring
--F29097 Pressure spring
-- F240479 Hexagonal nut
-- F240479 Hexagonal nut
--F21035 Disc
--F24031 Spring lock washer
--F20130 Cylinder head screw
-- 105759 Traverse
--F22759 Cap nut
-- F29101 Raised countersunk head screw
--105770 Lid

Needle Beam Complete IR56 Injector

Pos No.	Part No.	Description	Add Info	Required
1	105767	Housing	IR 28/56	1
2	105885	Block	IR 28/56	1
3	105768	Suppressor	IR 56	1
4	101112	Drive shaft	IR 28/56	2
5	104697	Distributor unit	IR 56	1
6	F42161	Pulse generator	IR 28/56	1
7	F242335	plate / sheet	32 x Ø 75 x 3	1
8	F251413	plate / sheet	32 x Ø 75 x 3	1
9	F29302	Ring	Ø 55,5 x Ø 75 x 3,5	2
10	F29097	Pressure spring	d6.3 x De68 x 160	2
11	F240479	Hexagonal nut	DIN439 M 22 x 1,5	2
12	F21035	Disc	Ø 6,5 x Ø 20 x 2	2
13	F24031	Spring lock washer	DIN127 B 6	2
14	F22068	Cylinder head screw	DIN912 M 6 x 12	2
15	105759	Traverse	IR 28/56	1
16	F22759	Cap nut	DIN917 M 14	2
17	F29101	Raised countersunk head screw	DIN95 M 6 x 25 conical	14
18	105770	Lid	IR 28/56	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net
