Nadelbalken Assembly PR20 Injector No. 2786 and Higher

Type: 100085
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2071

* Nadelbalken Assembly PR 20 No 2786 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Nadelbalken Assembly PR20 Injector No. 2786 and Higher

Type: 100085
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2071

* Nadelbalken Assembly PR 20 No 2786 and higher:
--F40248 Nadelbalken
--F458204 Führung
--F41300 Führung
--F22366 Platte
--F20114 Druckfeder
--F21307 Ring
--F27790 Klemmring
--F20117 Pökelnadel

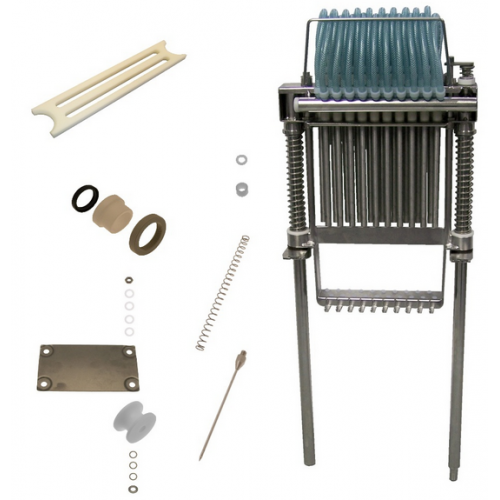

Nadelbalken Assembly Ruhle PR20 Injector No. 2786 and Higher

Pos No.	Part no.	Description	Add Info	Required
1	F40248	Needle beam	PR 20	1
2	F458204	Guide	PR 20	2
3	F41300	Guide	PR 8 - 30	2
4	F22366	Plate	355 x 70 x 15	1
5	F20114	Pressure spring	d1.8 x De19 x 285	20
6	F21307	Ring	Ø 10,2 x Ø 19 x 2	20
7	F27790	Clamping ring	Ø 14 x Ø 20 x 12	20
8	F20117	Curing needle	Ø 4,0 x 165	20

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Nadelbalken Assembly Ruhle PR20 Injector No. 2786 and Higher

Pos No.	Part no.	Description	Add Info	Required
1	F40248	Needle beam	PR 20	1
2	F458204	Guide	PR 20	2
3	F41300	Guide	PR 8 - 30	2
4	F22366	Plate	355 x 70 x 15	1
5	F20114	Pressure spring	d1.8 x De19 x 285	20
6	F21307	Ring	Ø 10,2 x Ø 19 x 2	20
7	F27790	Clamping ring	Ø 14 x Ø 20 x 12	20
8	F20117	Curing needle	Ø 4,0 x 165	20
