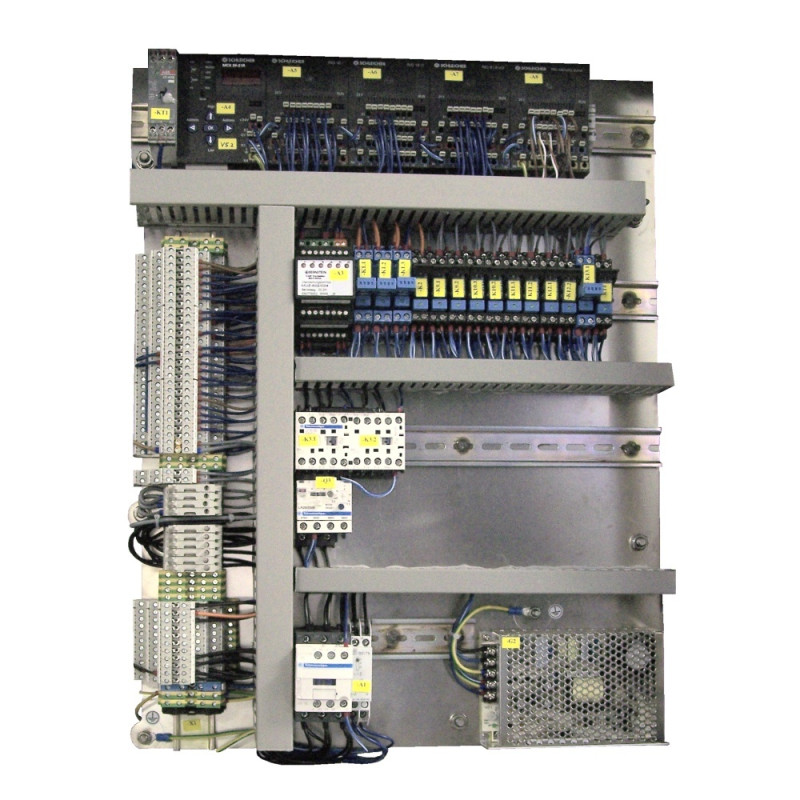

Mounting plate Exploded View IR56 Injector F456118

Type: F456118
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2448

* Mounting plate Exploded View IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Mounting plate Exploded View IR56 Injector F456118

Type: F456118
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2448

* Mounting plate Exploded View IR 56 No. 210 and higher:
--F454953 Mounting plate
--F28731 Cable duct
--F28731 Cable duct
--F28731 Cable duct
--F148541 Sticker
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F27057 Phase sequence relay
--F29184 Monitoring unit
--103662 Programmed PLC-Modul
--F29048 PLC-Module
--F29049 PLC-Module
--F29050 PLC-Module
--F29051 PLC-Module
--F27064 Fuse 3.15 AT
--F27064 Fuse 3.15 AT
--F23890 Fuse 6,3 AT
--F28410 Power supply 230VAC/24VDC
--F28667 Power contactor 24VDC
--F41539 Relay
--F20916 turn contactor
--F28480 Power contactor 24VDC
--F41540 Relay
--F27072 Time relay
--F20911 Motor protect. relay 0.8 -1.2A
--F243821 Resistor
--F28736 Terminal strip
--F144451 Sealing ring
--F28278 End terminal
--F26955 Relay 1 change-over
--F20920 Relay 2 change-over
--F23890 Fuse 6,3 AT

Mounting plate Exploded View IR56 Injector F456118

Pos No.	Part No.	Description	Add Info	Required
1	F454953	Mounting plate	IR 28/56	1
2	F28731	Cable duct	80 x 30 x 2000	425 mm
3	F28731	Cable duct	80 x 30 x 2000	440 mm
4	F28731	Cable duct	80 x 30 x 2000	320 mm
5	F148541	Sticker	BMK02	3
6	F20258	Washer	DIN125 A 6,4	2
7	F24031	Spring lock washer	DIN127 B 6	2
8	F20203	Hexagonal nut	DIN934 M 6	2
9	F27057	Phase sequence relay	IK 9179	1
10	F29184	Monitoring unit	MÜZ 602/D24-UM	1
11	103662	Programmed PLC-Modul	IR 56_V5.2	1
12	F29048	PLC-Module	RIO 16I / KE	1
13	F29049	PLC-Module	RIO 16O / KE	1
14	F29050	PLC-Module	RIO 8I 8I/O	1
15	F29051	PLC-Module	RIO 4AI/4AO 20 mA	1
16	F27064	Fuse 3.15 AT	5,0 x 20 mm	12
17	F23890	Fuse 6,3 AT	5,0 x 20 mm	8
18	F28410	Power supply 230VAC/24VDC	S-60-24 MW	1
19	F28667	Power contactor 24VDC	LC1 D18BD	1
20	F41539	Relay	2 We / 24 VDC / 6A	4
21	F20916	turn contactor	LP2-KO910 BD3	3
22	F28480	Power contactor 24VDC	LP1-K0901 BD3	3
23	F41540	Relay	1 We / 24 VDC / 10A	12
24	F27072	Time relay	CT-ARE	1
25	F20911	Motor protect. relay 0.8 -1.2A	LR 2-K0306	5
26	F243821	Resistor	100 Ohm 0.5/0.6 W	1
27	F28736	Terminal strip	IR 28/56	1
28	F144451	Sealing ring	Ø 6 Silicon clear	280 mm
29	F28278	End terminal	BNK - BADL	1
30	F26955	Relay 1 change-over	40.51	2
31	F20920	Relay 2 change-over	44.52	1
32	F27064	Fuse 3.15 AT	5,0 x 20 mm	4
33	F23890	Fuse 6,3 AT	5,0 x 20 mm	2
