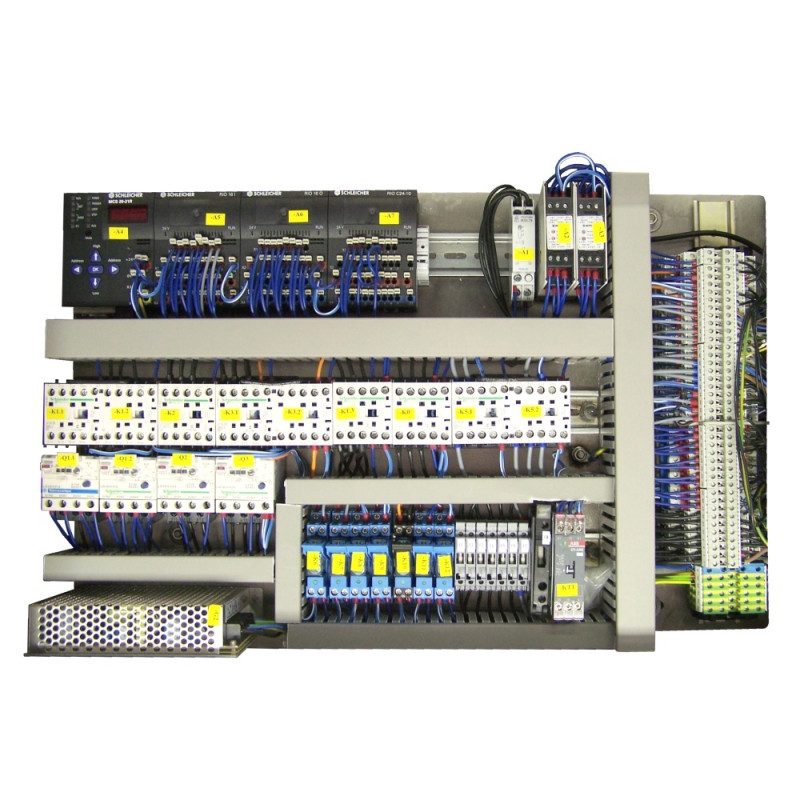

Mounting Plate Exploded View SR2 Dicer No. 249 and Higher

Type: F41492
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 844

Note: Shipping to be Determined.

* Mounting Plate SR2-Turbo No. 249 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Mounting Plate Exploded View SR2 Dicer No. 249 and Higher

Type: F41492
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 844

Note: Shipping to be Determined.

* Mounting Plate SR2-Turbo No. 249 and higher:
--F453869 Mounting plate
--F28732 lock washer
--F20258 Washer
--F24031 Spring lock washer
--F20203 Hexagonal nut
--F27057 Phase sequence relay
--F28956 Monitoring unit
--103663 Programmed PLC-Modul
--F29048 PLC-Module
--F29049 PLC-Module
--F28233 PLC-Module
--F20723 Fuse terminal grey
--F27064 Sicherung 3,15 AT
--F23890 Fuse 6,3 AT
-- F27065 Side Plate Grey
--F145711-F1 Beschriftung
--F145711-F2 Beschriftung
--F145711-F3 Beschriftung
--F145711-F4 Beschriftung
--F145711-F5 Beschriftung
--F145711-F6 Beschriftung
--F145711-F7 Beschriftung
-- F145711-F8 Beschriftung
--F27066 Sicherungsklemme schwarz
--F28281 Fuse 20 AT
--F27067 Side Plate Black
--F28410 Power supply 230VAC/24VDC
--F28480 Power contactor 24VDC
--F20916 turn contactor
--F27091 Power contactor 24VDC
--F41540 Relay
--F41539 Relay
--F27072 Zeitrelais
--F27077 Motor protect. relay 5.5 -8.0A
--F28668 Motor protect relay 0.36-0.54A
--F20911 Motor protect. relay 0.8 -1.2A
--F27083 Diode
--F28735 Klemmleiste
--F28278 End terminal
--F27772 Cable duct
--F27772 Cable duct
--F27772 Cable duct
--F28731 Kabelkanal
--F28731 Kabelkanal
--F148541 Sticker

Mounting Plate Exploded View SR2 Dicer No. 249 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F453869	Mounting plate	SR 2 Turbo	1
2	F28732	lock washer	DIN6797-A ø 6,4	1
3	F20258	Washer	DIN125 A 6,4	1
4	F24031	Spring lock washer	DIN127 B 6	1
5	F20203	Hexagonal nut	DIN934 M 6	1
6	F27057	Phase sequence relay	IK 9179	1
7	F28956	Monitoring unit	MÜZ 202/D24-FL	2
8	107442	Programmed PLC-Modul	Sr2_V2.1	1
9	F29048	PLC-Module	RIO 16I / KE	1
10	F29049	PLC-Module	RIO 16O / KE	1
11	F28233	PLC-Module	RIO C24-10	1
12	F20723	Fuse terminal grey	5.0 x 20mm	7
13	F27064	Sicherung 3,15 AT	5,0 x 20 mm	8
14	F236890	Fuse 6,3 AT	5,0 x 20 mm	6
15	F27065	Side Plate Grey	FEM 8S	1
16	F145711-F1	Beschriftung	F1	1
17	F145711-F2	Beschriftung	F2	1
18	F145711-F3	Beschriftung	F3	1
19	F145711-F4	Beschriftung	F4	1
20	F145711-F5	Beschriftung	F5	1
21	F145711-F6	Beschriftung	F6	1
22	F145711-F7	Beschriftung	F7	1
23	F145711-F8	Beschriftung	F8	1
24	F27066	Sicherungsklemme schwarz	6,4 x 32 mm	1
25	F28281	Fuse 20 AT	6,3 x 32 mm	2
26	F27067	Side Plate Black	FEM 13U	1
27	F28410	Power supply 230VAC/24VDC	S-60-24 MW	1
28	F28480	Power contactor 24VDC	LP1-K0901 BD3	2
29	F20916	turn contactor	LP2-KO910 BD3	3
30	F27091	Power contactor 24VDC	LP1-K0910 BD3	1
31	F41540	Relay	1 We / 24 VDC / 10A	6
32	F41539	Relay	1 We / 24 VDC / 10A	1
33	F27072	Zeitrelais	CT-ARE	1
34	F27077	Motor protect. relay 5.5 -8.0A	LR 2-K0314	2
35	F28668	Motor protect relay 0.36-0.54A	LR 2-K0304	1
36	F20911	Motor protect. relay 0.8 -1.2A	LR 2-K0306	1
37	F27083	Diode	1N5401	2
38	F28735	Klemmleiste	SR 2 T	1
39	F28278	End terminal	BNK - BADL	2
40	F27772	Cable duct	60 x 20 x 2000	250
41	F27772	Cable duct	60 x 20 x 2000	90
42	F27772	Cable duct	60 x 20 x 2000	180
43	F28731	Kabelkanal	80 x 30 x 2000	365
44	F28731	Kabelkanal	80 x 30 x 2000	430
45	F148541	Sticker	BMK02	1
