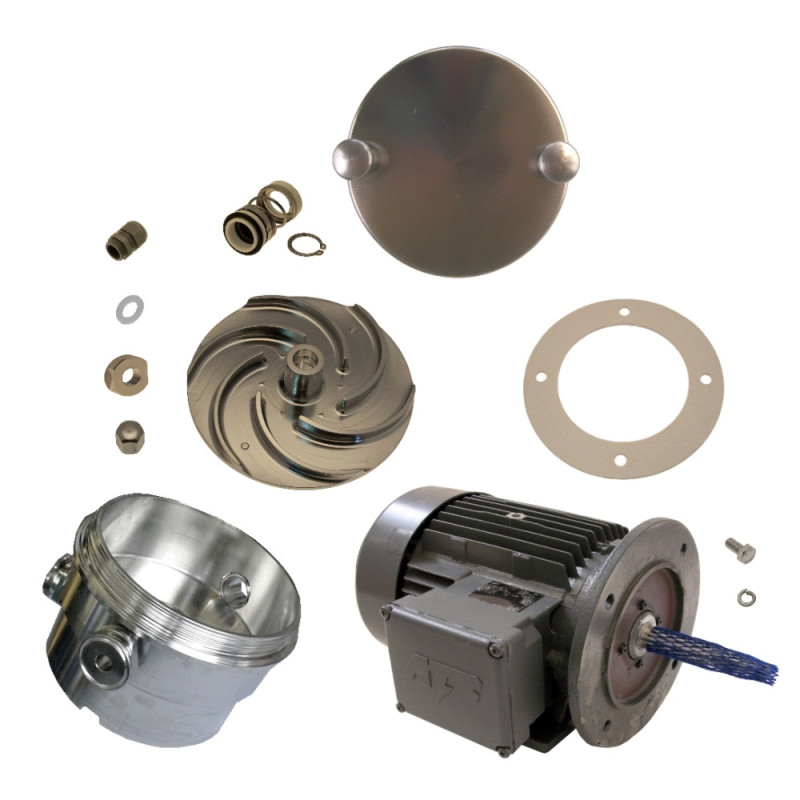

Main pump Complete IR56 Injector No. 210 and Higher

Type: F444833
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2384

* Main pump Complete IR 56 No. 210 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Main pump Complete IR56 Injector No. 210 and Higher

Type: F444833
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2384

* Main pump Complete IR 56 No. 210 and higher:
--F24802 Seal
--F42172 Pump housing
--F26379 Spring lock washer
--F22138 Hexagonal bolt
--F445849 Floating ring seal
--F42173 Blade wheel
--F240081 Ring
--F240357 Nut
--F240358 Cap nut
--100612 Lid
--F29035 Motor
--F29057 Cable gland

Main pump Complete IR56 Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F24802	Seal	Ø 130 x Ø 200 x 2	1
2	F42172	Pump housing	IR 28/56	1
3	F26379	Spring lock washer	DIN127 B 10	4
4	F22138	Hexagonal bolt	DIN933 M10 x 25	4
5	F445849	Floating ring seal	IR 28/56 / LR 1	1
6	F42173	Blade wheel	IR 28/56	1
7	F240081	Ring	Ø 15,2 x Ø 27 x 3	1
8	F240357	Nut	M 12 x 1 x Ø 26,5 x 7	1
9	F240358	Cap nut	M 12 x 1	1
10	100612	Lid	IR 28/56 / LR 1	1
11	F29035	Motor	VAF90L/2D-12	1
12	F29057	Cable gland	M 25 x 1.5	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Main pump Complete IR56 Injector No. 210 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F24802	Seal	Ø 130 x Ø 200 x 2	1
2	F42172	Pump housing	IR 28/56	1
3	F26379	Spring lock washer	DIN127 B 10	4
4	F22138	Hexagonal bolt	DIN933 M10 x 25	4
5	F445849	Floating ring seal	IR 28/56 / LR 1	1
6	F42173	Blade wheel	IR 28/56	1
7	F240081	Ring	Ø 15,2 x Ø 27 x 3	1
8	F240357	Nut	M 12 x 1 x Ø 26,5 x 7	1
9	F240358	Cap nut	M 12 x 1	1
10	100612	Lid	IR 28/56 / LR 1	1
11	F29035	Motor	VAF90L/2D-12	1
12	F29057	Cable gland	M 25 x 1.5	1
